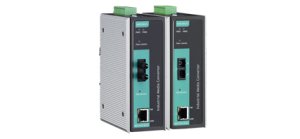

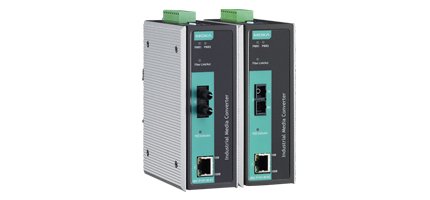

IMC-P101-S-SC-T
IEEE 802.3af PoE Ethernet-to-fiber media converters
IMC-P101 serisi Ethernet-fiber medya dönüştürücüleri, 10/100BaseT(X) 'den 100BaseFX'e (SC veya ST konnektörleri ile) ethernet medya dönüşümü sağlar. Bu dönüştürücüler, güç kaynağı ekipmanı (PSE) olarak sınıflandırılır ve bu şekilde kullanıldığında, ek kablolama ihtiyacını ortadan kaldırarak, IEEE 802.3af uyumlu güç aygıtlarına 15,4watt'a kadar güç sağlar.
IMC-P101 dönüştürücüler, IEEE 802.3/ 802.3u/802.3x'i 10/100M, full/half-dupleks ve MDI/MDI-X otomatik algılama desteğine sahiptir.
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af compliant PoE PSE equipment
- Power failure alarm by relay output
- Store-and-forward mode and pass through mode
- -40 to 75°C operating temperature range (T models)
- Redundant dual DC power inputs
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| IMC-P101-M-SC | PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with SC connector, 0 to 60°C operating temperature |
| IMC-P101-M-SC-T | PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with SC connector, -40 to 75°C operating temperature |
| IMC-P101-M-ST | PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with ST connector, 0 to 60°C operating temperature |
| IMC-P101-M-ST-T | PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with ST connector, -40 to 75°C operating temperature |
| IMC-P101-S-SC | PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with SC connector, 0 to 60°C operating temperature |
| IMC-P101-S-SC-T | PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with SC connector, -40 to 75°C operating temperature |
| IMC-P101-S-ST | PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with ST connector, 0 to 60°C operating temperature |
| IMC-P101-S-ST-T | PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with ST connector, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 2 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 1 |
| PoE Port | : | 1 |
| 100BaseFX SFP | : | 1 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X), 100BaseFX IEEE 802.3af for Power-over-Ethernet |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) |
| Fiber Ports | 100BaseFX (SC/ST connectors) |
| LED Indicators | PWR1, PWR2, Fiber Link, 10/100M (TP port), PSE Indicator |
| DIP Switches | |
| Alarm Contact | One relay output with current carrying capacity of 1 A @ 24 VDC |
| • Optical Fiber | |
| • Physical Characteristics | |
| Housing | Metal |
| Dimensions | 144.45 x 122.3 x 51.65 mm (5.69 x 4.81 x 2.03 in) |
| Weight | Product only: 525 g (1.16 lb) Packaged: 710 g (1.56 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 48 VDC (46 to 57 VDC), redundant inputs |
| Input Current | 130 mA @ 48 VDC max. |
| Connection | Removable terminal block |
| Overload Current Protection | 1.6 A (protects against two signals shorted together) |
| Reverse Polarity Protection | Protects against V+/V- reversal |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 4 kV; Signal: 4 kV EN 61000-4-5 (Surge): Power: 2 kV; Signal: 2 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) EN 61000-4-11 |
| Green Product | RoHS, CRoHS, WEEE |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 435,210 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
