IMC100-1GT1GF-P220 (SM,SC)
Yönetilemez Endüstriyel Gigabit Medya Dönüştürücü
Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M SC (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting
- Bir adet 100M/Gigabit fiber port, bir veya iki adet 100M/Gigabit bakır port ya da bir adet Gigabit SFP
- Opsiyonel AC/DC, tekli/çiftli güç kaynağı desteği; giriş gerilimi: 12~48VDC/DC veya 100~240VAC/DC
- -40~75°C geniş çalışma sıcaklık aralığı desteği

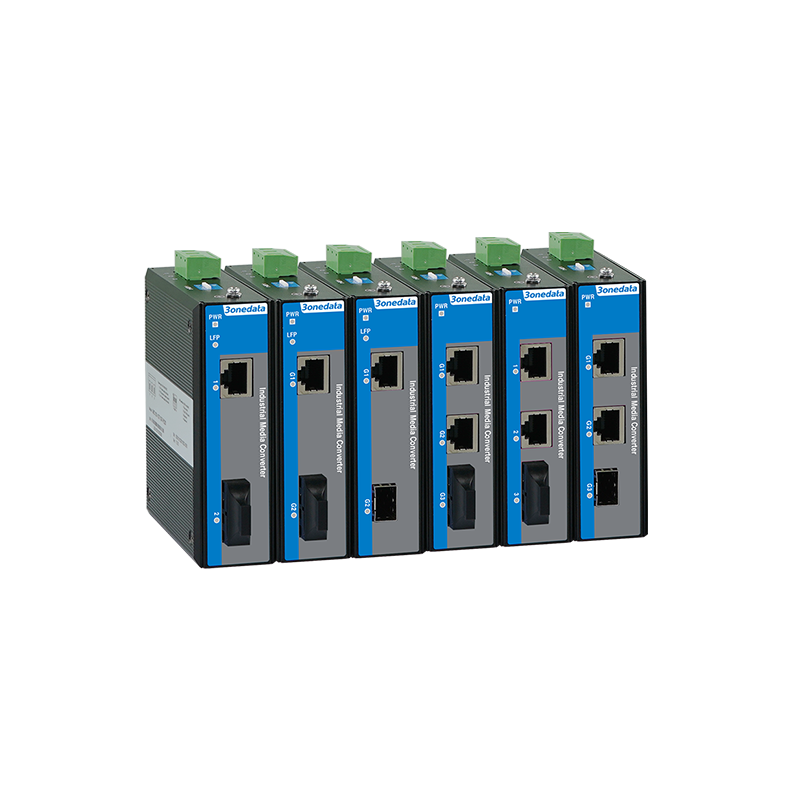

IMC100 serisi, yönetilemeyen endüstriyel medya dönüştürücülerden oluşur. Bu seri, 100M fiber port, 100M bakır port, Gigabit fiber port, Gigabit bakır port ve Gigabit SFP dâhil olmak üzere çeşitli opsiyonel arayüzleri destekleyen 14 farklı model içerir. Farklı uygulama senaryolarının gereksinimlerini karşılamak için DIN-Ray montaj yapısını benimser.
Ürün, opsiyonel AC/DC güç kaynağını destekler. Üzerindeki DIP switch; jumbo frame, LFP, tek tuşla VLAN veya akış kontrolü gibi işlevlerin uygulanmasını sağlar. Donanımı, fansız yapı, düşük güç tüketimi, geniş sıcaklık ve voltaj aralığı tasarımıyla dikkat çeker ve zorlu EMC gereksinimlerine uygunluk sağlayan sıkı endüstriyel standart testlerinden geçmiştir. Bu sayede akıllı şehir, raylı sistemler, güvenli şehir, yeni enerji, akıllı üretim ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IMC100-1T1F-P48 (MM,SC) | Unmanaged, 1*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-P48 (MM,ST) | Unmanaged, 1*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-P48 (SM,SC) | Unmanaged, 1*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-P48 (SM,ST) | Unmanaged, 1*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-P48 (MM,SC) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-P48 (MM,ST) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-P48 (SM,SC) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-P48 (SM,ST) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GF-P48 (MM,SC) | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M SC (multi-mode, 2KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GF-P48 (MM,ST) | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M ST (multi-mode, 2KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GF-P48 (SM,SC) | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M SC (single-mode, 20KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GF-P48 (SM,ST) | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M ST (single-mode, 20KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GS-P48 | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M SFP, single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GF-P48 (MM,SC) | Unmanaged, 2*10/100/1000Base-T(X) RJ45 +1*1000M SC (multi-mode, 2KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GF-P48 (MM,ST) | Unmanaged, 2*10/100/1000Base-T(X) RJ45 +1*1000M ST (multi-mode, 2KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GF-P48 (SM,SC) | Unmanaged, 2*10/100/1000Base-T(X) RJ45 +1*1000M SC (single-mode, 20KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GF-P48 (SM,ST) | Unmanaged, 2*10/100/1000Base-T(X) RJ45 +1*1000M ST (single-mode, 20KM), single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GS-P48 | Unmanaged, 2*10/100/1000Base-T(X) RJ45 + 1*1000M SFP, single power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-2P48 (MM,SC) | Unmanaged,1*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), dual power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-2P48 (MM,ST) | Unmanaged,1*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), dual power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-2P48 (SM,SC) | Unmanaged,1*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), dual power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-2P48 (SM,ST) | Unmanaged,1*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), dual power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-2P48 (MM,SC) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), dual power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-2P48 (MM,ST) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), dual power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-2P48 (SM,SC) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), dual power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-2P48 (SM,ST) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), dual power supply 12~48VDC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-P220 (MM,SC) | Unmanaged, 1*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-P220 (MM,ST) | Unmanaged, 1*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-P220 (SM,SC) | Unmanaged, 1*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1T1F-P220 (SM,ST) | Unmanaged, 1*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-P220 (MM,SC) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-P220 (MM,ST) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-P220 (SM,SC) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2T1F-P220 (SM,ST) | Unmanaged, 2*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GF-P220 (MM,SC) | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M SC (multi-mode, 2KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GF-P220 (MM,ST) | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M ST (multi-mode, 2KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GF-P220 (SM,SC) | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M SC (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GF-P220 (SM,ST) | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M ST (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-1GT1GS-P220 | Unmanaged, 1*10/100/1000Base-T(X) RJ45 + 1*1000M SFP, single power supply100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GF-P220 (MM,SC) | Unmanaged, 2*10/100/1000Base-T(X) RJ45 + 1*1000M SC (multi-mode, 2KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GF-P220 (MM,ST) | Unmanaged, 2*10/100/1000Base-T(X) RJ45 + 1*1000M ST (multi-mode, 2KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GF-P220 (SM,SC) | Unmanaged, 2*10/100/1000Base-T(X) RJ45 + 1*1000M SC (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GF-P220 (SM,ST) | Unmanaged, 2*10/100/1000Base-T(X) RJ45 + 1*1000M ST (single-mode, 20KM), single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
| IMC100-2GT1GS-P220 | Unmanaged, 2*10/100/1000Base-T(X) RJ45 + 1*1000M SFP, single power supply 100~240VAC/DC, DIN-rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100BaseFX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1Q for VLAN
Interface
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, optional SC/ST/FC
Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
Gigabit fiber port: 1000Base-FX, optional SC/ST/FC
Gigabit SFP: 1000Base-FX SFP slot
Indicator
Interface Indicator, Power Supply Indicator, LFP Indicator(1 copper port and 1 fiber port product only)
Switch Property
IMC100-1T1F-P48, IMC100-1T1F-P220, IMC100-2T1F-P48, IMC100-2T1F-P220, IMC100-1T1F-2P48, IMC100-2T1F-2P48
MAC address: 2K
Backplane bandwidth: 1G
Transmission mode: store and forward
IMC100-1GT1GF-P48, IMC100-1GT1GF-P220, IMC100-1GT1GS-P48, IMC100-1GT1GS-P220, IMC100-2GT1GF-P48, IMC100-2GT1GF-P220, IMC100-2GT1GS-P48, IMC100-2GT1GS-P220,
MAC address: 2K
Backplane bandwidth: 18.2G
Transmission mode: store and forward
Power Supply
Single power supply: DC/AC power supply (optional), 12~48VDC or 100~240VAC/DC, 3-pin 7.62 pitch terminal blocks
Dual power supply: 12~48VDC, 4-pin 5.08mm pitch terminal blocks
Power Consumption
|
Available Models |
No-load |
Full-load |
|
IMC100-1T1F-P48 |
1.0W |
1.1W |
|
IMC100-1T1F-2P48 |
1.0W |
1.1W |
|
IMC100-2T1F-2P48 |
1.0W |
1.1W |
|
IMC100-2T1F-P220 |
1.2W |
1.5W |
|
IMC100-1GT1GS-P220 |
1.5W |
2.0W |
|
IMC100-2GT1GF-P220 |
1.5W |
2.5W |
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 35mm×110mm×95mm
Weight:
IMC100-1T1F-P48, IMC100-1T1F-2P48, IMC100-2T1F-2P48: 337g
IMC100-2T1F-P220: 345g
IMC100-1GT1GS-P220: 343g
IMC100-2GT1GF-P220: 342g
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
Power supply: ± 4kV
Signal: ±2kV
IEC61000-4-5 (Surge), Level 4
Power supply: differential mode±2kV, common mode±4kV
Signal: differential mode±2kV, common mode±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
