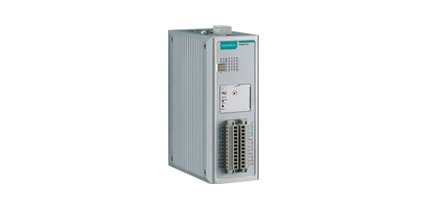

ioLogik 2512
Smart Ethernet remote I/O with Click&Go Plus, 8 DIs, 8 DIOs
ioLogik 2500 benzersiz donanım ve yazılım tasarımlarına sahip akıllı bir uzaktan kontrol I/O ürünü olup, çeşitli endüstriyel veri toplama uygulamaları için ideal bir çözümdür. ioLogik 2500 4-port yönetilmeyen Ethernet switch ve 2 seri port içerir. 8adet "ioLogik E1200” bağlantısı ile (daisy-chain) 100’den fazla kanal desteği sağlayabilir. Yetersiz Ip adres sayısı problemi olan uygulamalarda, ioLogik 2500'ün tek bir IP'sinin ağ yapısındaki tüm I/O dizisine bağlantı sağlaması ideal çözüm üretir.
- Click & Go Plus kontrol lojiği (maksimum 48)
- MX-AOPC UA Server ile etkin iletişim
- Ethernet aygıtlarına bağlanmak için tümleşik 4-port yönetilmeyen ethernet switch
- 8 ioLogik E1200 ünitesine (daisy-chain) bağlantı
- Sahadaki seri aygıtlara bağlantı için 3-in-1 RS-232/422/485 seri port
- SNMPv1 / v2c / v3'ü desteği
- Windows veya Linux platformları için MXIO kütüphanesi ile basit I/O yönetimi
- -40 ila 75°C çalışma sıcaklık aralığı seçeneği
ÜRÜN SİPARİŞ KODLARI :
|
ioLogik 2512 |
Ethernet remote I/O with Click&Go Plus, 8 DIs, 8 DI/Os, -10 to 60°C operating temperature |
|
Ethernet remote I/O with Click&Go Plus, 8 DIs, 8 DI/Os, -40 to 75°C operating temperature |
| • ioLogik 2512 Specifications | |
| • Inputs and Outputs | |
| Digital Inputs | 8 channels |
| Configurable DIOs (by software) | 8 channels |
| Isolation | 3k VDC or 2k Vrms |
| • Digital Input | |
| Sensor Type | Wet Contact (NPN or PNP) and Dry Contact |
| I/O Mode | DI or Event Counter |
| Dry Contact | • On: short to GND • Off: open |
| Wet Contact (DI to COM) | • On: 10 to 30 VDC • Off: 0 to 3 VDC |
| Common Type | 8 points per COM |
| Counter Frequency | 2.5 kHz |
| Digital Filtering Time Interval | Software configurable |
| • Digital Output | |
| Type | Sink |
| I/O Mode | DO or Pulse Output |
| Pulse Output Frequency | 5 kHz |
| Over-Voltage Protection | 45 VDC |
| Over-Current Protection | 1.5 A per channel @ 25°C |
| Over-Temperature Shutdown | 175°C (min.) |
| Current Rating | 500 mA per channel @ 25°C |
| DIO Output Leakage Current | < 1 mA @ 30 VDC |
| • Power Requirements | |
| Input Voltage | 9 to 48 VDC |
| Input Current | 274 mA @ 24 VDC |
| • MTBF (mean time between failures) | |
| Time | 467,032 hrs |
| Standard | Telcordia SR332 |
| • Common Specifications | |
| • LAN | |
| Ethernet | • 4 switched 10/100 Mbps RJ45 ports • 1 optimized port for faster downstream communications with daisy-chained ioLogik E1200 units |
| Note | The optimized daisy-chain port is not supported by the ioLogik E1261W-T, E1261H-T, or E1263H-T. |
| Protection | 1.5 kV magnetic isolation |
| Protocols | Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP |
| • Serial | |
| Interface | 2 RS-232/422/485 (software selectable) RJ45 ports |
| Parity | None, Odd, Even |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Baudrate | 300 to 115200 bps |
| Protocols | Modbus/RTU (master/gateway), serial tunnel mode (client/server) |
| • Physical Characteristics | |
| Wiring | I/O cable max. 14 AWG |
| Dimensions | 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in) |
| Weight | Under 1265 g (2.79 lb) |
| Mounting | DIN-rail (standard), wall (with optional kit) |
| • Storage | |
| Expansion Slot | Up to 32 GB microSD™ memory card (SDHC compatible) |
| Note | For units operating in extreme temperatures, industrial-grade, wide-temperature SD cards are required. |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Altitude | Up to 2000 m |
| Note | Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 61000-6-2/6-4 |
| EMI | FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 |
| Hazardous Location | Class 1 Division 2; ATEX Zone 2 |
| Green Product | RoHS, CRoHS, WEEE |
| Note: Please check Moxa’s website for the most up-to-date certification status. | |
| • Warranty | |
| Warranty Period | 5 years |
