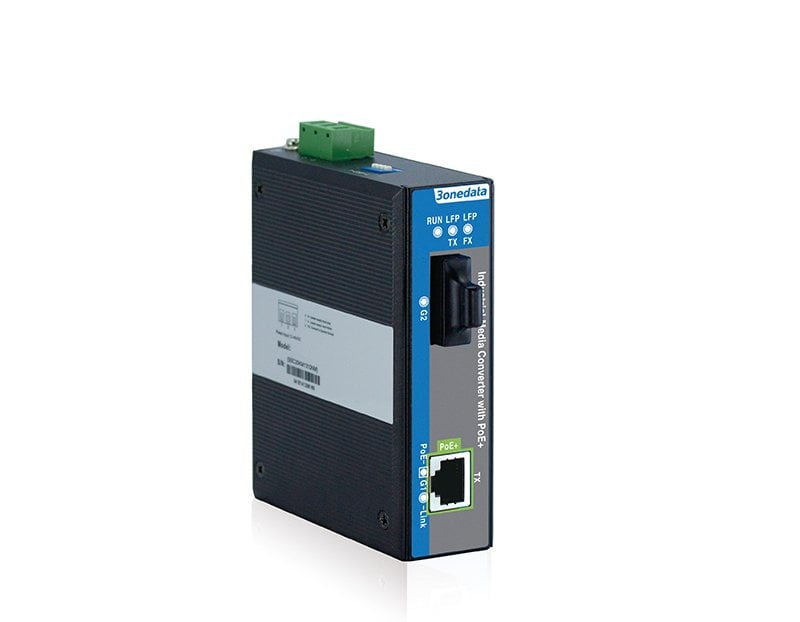

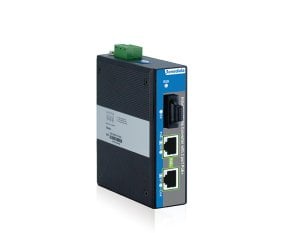

IPMC100-1GF-2GPoE (SM,SC)
2/3-port Full Gigabit Unmanaged Industrial PoE Media Converter
2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Single-Mode, SC, 20KM), single power supply: 44-57VDC
- 1x Gigabit fiber port veya SFP slot ve 1/2x Gigabit PoE bakır port
- Tek bir PoE port maksimum 30W destekler
- 48VDC
- –40~80℃

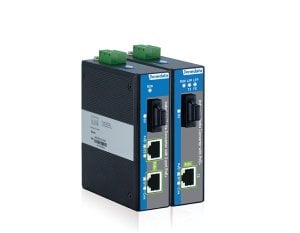

IPMC100 Serisi, 2/3 port Full Gigabit yönetilemez endüstriyel PoE medya çevirici serisidir. PoE, IEEE 802.3af/at protokol standardına uygundur. Bu seri, Gigabit fiber, Gigabit SFP ve Gigabit PoE bakır port kombinasyonlarını içerir.
Donanım, fansız, düşük güç tüketimi, geniş çalışma sıcaklık aralığı ve EMC uygunluk testlerine sahiptir. Demiryolu taşımacılığı, akıllı şehir, güvenli şehir, yenilenebilir enerji, havacılık, askeri projeler ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IPMC100-1GS-1GPoE | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1*1000Base-FX (SFP slot), single power supply: 44-57VDC |
| IPMC100-1GS-2GPoE | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1*1000Base-FX (SFP slot), single power supply: 44-57VDC |
| IPMC100-1GF-1GPoE (MM,SC) | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, SC, 2KM), single power supply: 44-57VDC |
| IPMC100-1GF-1GPoE (MM,ST) | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, ST, 2KM), single power supply: 44-57VDC |
| IPMC100-1GF-1GPoE (SM,SC) | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Single-Mode, SC, 20KM), single power supply: 44-57VDC |
| IPMC100-1GF-1GPoE (SM,ST) | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Single-Mode, ST, 20KM), single power supply: 44-57VDC |
| IPMC100-1GF-2GPoE (MM,SC) | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, SC, 2KM), single power supply: 44-57VDC |
| IPMC100-1GF-2GPoE (MM,ST) | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, ST, 2KM), single power supply: 44-57VDC |
| IPMC100-1GF-2GPoE (SM,SC) | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Single-Mode, SC, 20KM), single power supply: 44-57VDC |
| IPMC100-1GF-2GPoE (SM,ST) | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Single-Mode, ST, 20KM), single power supply: 44-57VDC |
| Toplam Port Sayısı | : | 3 |
| Çalışma Sıcaklığı | : | -40/+80C |
| 10/100/1000BaseT(X) | : | 2 |
| PoE Port | : | 1 |
| 1000BaseFX SFP | : | 1 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1af for PoE IEEE 802.3at for PoE+
|
|
PoE
|
The maximum power consumption of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 1000Base-FX, SC/ST/FC optional SFP slot: 100/1000Base-SFP
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, PoE Indicator, LFP Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 14G Switch time delay: < 10μs
|
|
Power Requirement |
12~48VDC (PoE 48VDC), 3-pin 7.62mm pitch terminal blocks
|
|
Environmental Limit |
Operating temperature: -40~80℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 36mm×110mm×97mm Weight: ≤400g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 3 Air discharge: ±8kV Contact discharge: ±6kV EN61000-4-4 (EFT), Level 3 IEC61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
