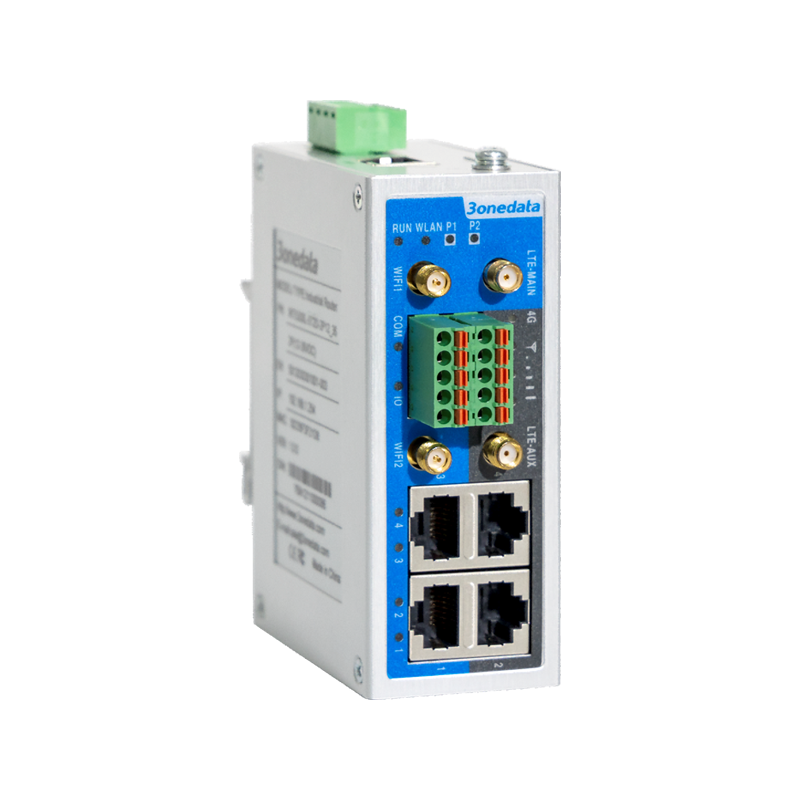

IRT5300L-5T2D-2P12_36
Endüstriyel 4G Wireless Router
- 1 adet 100M WAN port, 4 adet 100M LAN port, 1 adet RS-232/485/422 seri port, 2 adet 2.4G Wi-Fi anten arayüzü, 2 adet LTE anten arayüzü, 2 adet SIM kart yuvası vb.
- Tüm 4G ağlarını destekler; hücresel kablosuz ağ tipleri: FDD / TDD / WCDMA / TD-SCDMA / HSPA / CDMA / EVDO
- Birden fazla seri port çalışma modu desteği: Realcom, TCP Server, TCP Client, UDP Server, UDP Client
- Kablosuz ağ bağlantısının kararlılığını sağlamak için dual-SIM card redundancy backup desteği
- OpenVPN client, IPsec, PPTP, L2TP desteği ile güçlü bir veri güvenliği mekanizması
- Dual power supply redundancy desteği; güç girişinde non-polarity protection, giriş voltajı: 12~36VDC
- -40~75℃ geniş çalışma sıcaklık aralığı
IRT5300L-5T2D-2P12_36, endüstriyel sınıf bir 4G router’dır. 100M WAN port, 100M LAN port, RS-232/485/422 seri port, I/O arayüzü (rezerv), Wi-Fi anten arayüzü, LTE anten arayüzü ve SIM kart yuvası sunar. DIN-Rail montaj desteği ile farklı uygulama senaryolarına uyum sağlar.
Ağ yönetim sistemi; Cellular WAN, Ethernet WAN, ICMP Link Test, DHCP ayarı, VLAN ayarı, Dynamic Domain Name, Routing Table Setting, WLAN ayarı, Port Forwarding, Port Redirection, DMZ ayarı, Seri Port Uygulama ve Ayarı, UPnP ayarı, VRRP, RIP, OSPF ve Static DHCP gibi birçok yazılım fonksiyonunu destekler. Ayrıca IP Filtering, MAC Filtering, URL Filtering, Keyword Filtering, IP address black/white list gibi firewall işlevlerini; GRE, IPSec, PPTP, L2TP, OpenVPN gibi VPN tünelleme fonksiyonlarını da destekler. Kullanıcı dostu arayüz tasarımı ile kolay ve pratik kullanım sunar.
Kablosuz ağ bağlantısının kararlılığını sağlamak için dual-SIM card redundancy özelliğine sahiptir. Güç girişi iki bağımsız girişten oluşur; böylece güç kaynaklarından biri arızalansa bile cihaz normal çalışmaya devam eder. RESET butonu ile cihaz yeniden başlatılabilir ve fabrika ayarlarına döndürülebilir.
Donanım; fansız, düşük güç tüketimli, geniş sıcaklık ve geniş voltaj aralığına sahip olacak şekilde tasarlanmıştır. Zorlu endüstriyel ortam koşullarına uyum sağlayarak; fabrika otomasyonu, petrokimya endüstrisi, elektrik gücü izleme, su kaynakları izleme gibi birçok endüstriyel uygulama senaryosunda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IRT5300L-5T2D-2P12_36 | 3G/4G, Wi-Fi 4, 4*10/100 Base-T(X) LAN RJ45 + 1*10/100BaseT(X) WAN RJ45 + 1*RS232/485 + 2*4G LTE antenna interface, 2*2.4G Wi-Fi antenna interface, 2*SIM card slot, dual power supply:12~36VDC, DIN-Rail mounting, operating temperature: -40~75℃ |
Standard & Protocol
IEEE802.11b/g/n for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
Cellular Network
3G/4G cellular network, network type FDD-LTE/TDDLTE/WCDMA/TD-SCDMA/HSPA/CDMA/EVDO
Network Settings
WAN Network, Wireless WiFi, PPPoE Dialing, Mobile network Detection, VLAN, DDNS, Routing Table, Wireless Client Filtering, Port Forwarding , Port Redirection, DMZ Settings, Serial Port Application, UPnP Settings, Static DHCP, VRRP, RIP, OSPF
Firewall
IP Filtering, MAC Filtering, URL Filtering, Keyword Filtering, IP address Black/White List
VPN Tunnel
GRE, PPTP Client/Server, L2TP Client/Server, IPSec, OpenVPN Client
System Management
NTP Client, Access Settings, Timed Restart, Backup Recovery, Log Server, Firmware Upgrade
Troubleshooting
System Log, Ping Test and Route Tracking
WiFi Transmission Rate
802.11n: 6.5~300Mbps
802.11b: 11/5.5/2/1Mbps
802.11g: 54/48/36/24/18/12/9/6Mbps
WiFi Radio Frequency
Channel: 2.412GHz~2.4835GHz
RF power output: 20dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
WiFi Receiving Sensitivity
802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7
802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7
802.11g: -91dBm@6Mbps, -72dBm@54Mbps
802.11b: -93dBm@1Mbps, -87dBm@11Mbps
WiFi Transmitting Power
802.11n_HT40: 20dBm@MCS0, 20dBm@MCS7
802.11n_HT20: 20dBm@MCS0, 20dBm@MCS7
802.11g: 20dBm@6Mbps, 20dBm@54Mbps
802.11b: 23dBm@1Mbps, 20dBm@11Mbps
LTE Operating Frequency Band (Chinese Version)
TDD-LTE: Band 38/39/40/41
FDD-LTE: Band 1/3/5/7/8/20
WCDMA: Band 1/5/8
TD-SCDMA: Band 34/39
EVDO/CDMA1X: BC0
GSM: Band 3/8
LTE Operating Frequency Band (European & African & Middle East Version)
Note: This version can be used in Southeast Asia in most cases.
TDD-LTE: Band 38/40/41
FDD-LTE: Band 1/3/7/8/20/28A
WCDMA: Band 1/8
GSM/EDGE: Band 3/8
LTE Operating Frequency Band (North American Version)
FDD-LTE: Band 2/4/5/12/13/14/66/71
WCDMA: Band 2/4/5
LTE Operating Frequency Band (Latin American & Australian & New Zealand Version)
TDD-LTE: Band 40
FDD-LTE: Band 1/2/3/4/5/7/8/28
WCDMA: Band 1/2/5/8
GSM/EDGE: Band 2/3/5/8
LTE Operating Frequency Band (Global Version)
TDD-LTE: Band 34/38/39/40/41
FDD-LTE: Band 1/2//3/4/5/7/8/12/13/18/19/20/25/26/28/66
WCDMA: Band 1/2/4/5/6/8/19
GSM/EDGE: 850/900/1800/1900 MHz
LTE Bandwidth (Downstream,Upstream)
TDD-LTE: Rel 9 Cat4 TDD-LTE 112Mbps/30Mbps
FDD-LTE: Rel 9 Cat4 FDD-LTE 150Mbps/50Mbps
DC-HSPA+: 42Mbps/5.76Mbps
HSPA+: 21Mbps/5.76Mbps
UMTS: 384kbps/384kbps
EVDO RevA: 3.1Mbps/1.8Mbps
EVDO Rev0: 2.4Mbps/153.6kbps
TD-HSPA: 4.2Mbps/2.2Mbps
TD- SCDMA: 2.8Mbps/2.2Mbps
CDMA 1x: 153.6kbps/153.6kbps
EDGE: 236.8kbps/236.8kbps
GPRS: 85.6kbps/85.6kbps
LTE Sensitivity
GSM: <-108dBm
WCDMA: <-109dBm
TD-SCDMA: <-108dBm
TDD-LTE:
Band38/39/40: <-100dBm@5MHz BW
Band41: <-98dBm@5MHz BW
FDD-LTE:
Band1: <-100dBm@5MHzBW
Band3/8: <-97dBm@5MHzBW
Band5: <-98dBm@5MHzBW
CDMA: <-108dBm
EVDO: <-108dBm
Maximum Transmission Power of LTE
LTE-FDD/TDD: 23 ±2dBm
WCDMA: 24 +1/-3dBm
TD-SCDMA: 24 +1/-3dBm
EVDO/CDMA 1X: 24 ±1dBm
GSM850/900: 33±2dBm
GSM1800/1900: 30±2dBm
Serial Port Parameter
Standard: EIA RS-232C, RS-485, RS-422
Quantity of serial port: 1 3IN1 serial port
RS-232 signal: RXD, TXD, GND
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, RBaud rate: 300~115200bps
Data bit: 7bit, 8bit
Parity bit: None, Even, Odd
Stop bit: 1bit, 2bit
Direction control: RS-485 direction adopts Automatic Data
Direction Control (ADDC)
Load capacity: RS-485/422 end supports 32-node polling environment
Transmission distance: RS-232, 15m; RS-485/422, 1200m
Work mode: RealCom, TCP Client, TCP Server, UDP Client, UDP Server
Interface
WAN port: 1 10/100Base-T(X) RJ45 port
LAN port: 4 10/100Base-T(X) RJ45 port
Serial port: 1 RS-232/485/422, with 2x5-pin 3.81mm pitch terminal (occupies 6 pins)
I/O port (reserved): 1 DI input and 1 DO output, adopt 2×5 3.81mm pitch terminal block (occupies 4 pins)
SIM slot: 2 SIM slots, redundancy backup, support Micro SIM card
Antenna interface: 2 LTE antenna interfaces, SMA-K (Female), the master antenna is used to send/receive information, and the slave antenna is used to receive information; 2 WIFI antenna interfaces, RP-SMA-K (Female)
Indicator
Running indicator, WLAN indicator, power indicator, LTE signal strength indicator, 4G indicator, LAN/WAN port indicator, COM indicator and IO indicator
Power Supply
Dual 12~36VDC power supply input, dual power supply redundancy, support non-polarity, adopt 4-pin 5.08mm pitch terminal blocks
Power Consumption
No-load: 2.4W@24VDC
Full-load: 8.1W@24VDC (high temperature)
Working Environment
Operating temperature: -40～ 75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Dimension (W x H x D): 40.6mm x 103mm x 78 mm (exclude antenna)
Installation: DIN-Rail mounting
Weight: ≤ 270g
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet port: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
