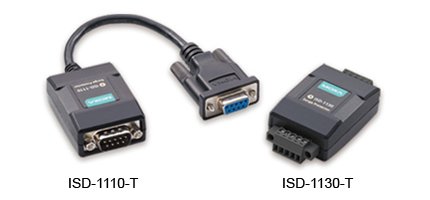

ISD-1110-T
Data line surge protectors
ISD-1100-T serisi, seri veri hatları için modemler, faks makineleri, I/O bağlantı noktaları, terminaller, hub ve seri veri bağlantıları kullanan diğer cihazların hasar görmesini önlemek için aşırı gerilim koruması sağlar. ISD-1100-T çeşitli seri bağlantılara seri veri hattı koruması ekleyebilir: RS-232, RS-422 ve RS-485.
- Plug and play
- Surge protection for serial data lines
- ISD-1110-T/1130-T: EN 61000-4-5 Level 4
- ISD-1210-T/1230-T: IEC 61643-21 C2 (20 kV protection)
- Supports RS-232 or RS-422/485
- Compact size for easy installation
- Wide temperature model available for -40 to 85°C environments
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| ISD-1110-T | 7 data line entry surge protector, RS-232, 4 kV surge protection, -40 to 85°C operating temperature |
| ISD-1130-T | 4 data line entry surge protector, RS-422/485, 4 kV surge protection, -40 to 85°C operating temperature |
| • Data Line Surge Protection | |
| Maximum Power Protection | 400 watts |
| Number of Protected Lines | ISD-1110-T: 7 ISD-1130-T: 4 |
| Surge Capacity | 4 kV, 8/20 μs impulse per line |
| Working Voltage | ISD-1110-T/: 15 V ISD-1130-T: 5 V |
| Maximum Load Current | ISD-1110-T: 0.1 A (23°C), 0.05 A (85°C) ISD-1130-T: 0.12 A (23°C), 0.07 A (85°C) |
| Response Time | < 1 ns |
| Protection Mode | Line to line, line to ground |
| Protection Rating | IP30 |
| Bandwidth | 10 MHz loss < 1 dB |
| • Connectors | |
| ISD-1110-T | Data in: DB9 male Data out: DB9 female |
| ISD-1130-T | Data in: Terminal block Data out: Terminal block |
| ISD-1210-T/1230-T | Data in: Terminal block Data out: Terminal block |
| • Physical Characteristics | |
| Housing | Plastic |
| Dimensions | ISD-1110-T: 53 x 37 x 20.6 mm (2.01 x 1.46 x 0.81 in) ISD-1130-T: 53 x 37 x 20.6 mm (2.01 x 1.46 x 0.81 in) |
| Weight | Product only ISD-1110-T: 58 g (0.13 lb) ISD-1130-T: 30 g (0.07 lb) Packaged ISD-1110-T: 119 g (0.26 lb) ISD-1130-T: 96 g (0.21 lb) |
|
• Environmental Limits |
|
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 95% max, non-condensing |
| • Standards and Certifications | |
| EMS | EN 61000-4-5 (Surge): Signal: 4 kV |
| • Warranty and RMA Policy | |
| Warranty Period | 5 years (limited to 1-time use) |
| Warranty Details | See www.moxa.com/warranty Note: ISD products will only be repaired once within 5 years of purchase. After the first repair, the product’s warranty will no longer be valid. |
| RMA Policy | Moxa does not provide RMA service for ISD products whose PCB board was destroyed by a surge. Note: Be sure to purchase the ISD product with maximum surge protection suitable for your environment. |
