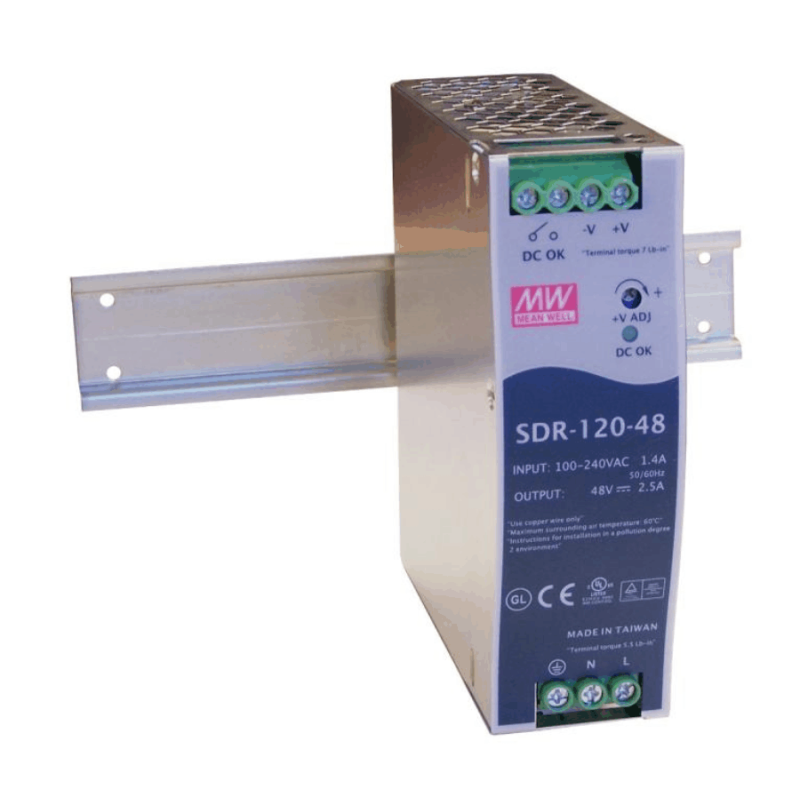

Meanwell SDR-120-48
120W Single Output Industrial DIN RAIL with PFC Function
Datasheet Link : SDR-120 Serisi
- Metal case, slim size
- 1∅, full range input (230VAC only for SDR-960)
- 94% high efficiency and complete functions
- Built-in active PFC function (except SDR-75)
- Assemble on industrial rail TS-35 / 7.5 or 15
- Built-in DC OK relay contact (except SDR-75)
- 130%~150% peak load capability by models
|
Application |
Installation UL 508 ITE EN/UL/IEC 60950 |
|
Output Power (W) |
120 |
|
Output Voltage (V) |
48 |
|
Output Current (A) |
2.5 |
|
Input Voltage (V) |
88-264V |
|
IP Rating |
No IP |
|
Format |
DIN rail |
|
Width (mm) |
40 |
|
Height (mm) |
125.2 |
|
Depth (mm) |
113.5 |
|
Control Signals |
DC OK |
|
Dimming Technology |
No Dimming |
