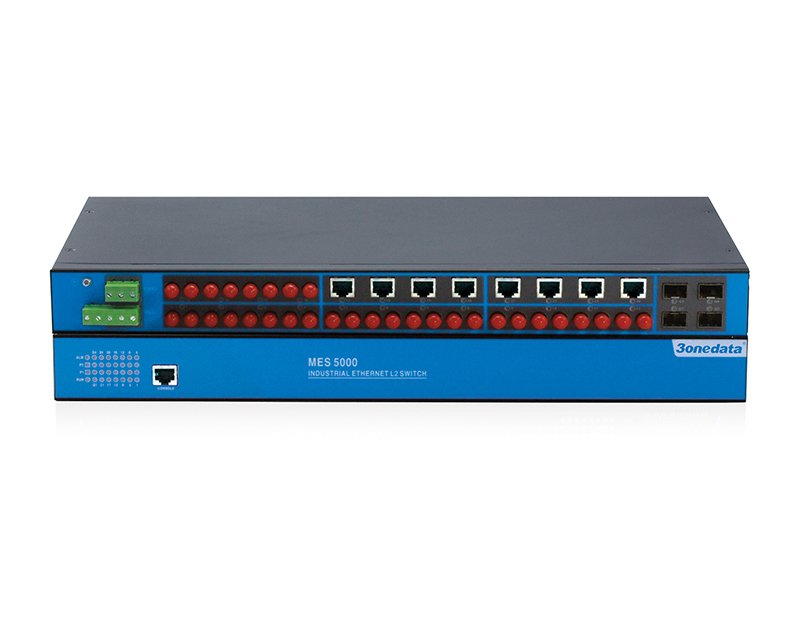

MES5000-4GS-8T16F (SM,ST)
IEC61850 24+4G-port Managed Ethernet Switches
4x Gigabit SFP (slot) + 8x 10/100Base-T(X) (RJ45) + 16x 100Base-FX (Single-Mode, ST, 20KM), dual power supply: 220VAC (90~264 VAC) or 48VDC (36~72 VDC)
- 4x Gigabit fiber port (SFP slot), 16x 100M fiber port ve 8x bakır port
- IEC61850 ve IEEE1613 standartlarına uygun
- Patentli SW-Ring teknolojisi: single ring, coupling ring, chain ring
- 36~72VDC veya 90~264VAC güç girişi
- –40~75℃ çalışma sıcaklığı
MES5000 Serisi, 28 port 100M/Gigabit Layer 2 yönetilebilir endüstriyel ethernet anahtar serisidir. Bu seri; Gigabit fiber (SFP slot), 100M fiber ve 100M bakır port seçenekleri sunar.
Ağ yönetim sistemi; STP / RSTP, 802.1Q VLAN, QoS, LLDP, Port Trunking, Port Mirroring gibi çeşitli ağ protokollerini ve endüstriyel standartları destekler. Ayrıca Port Konfigürasyonu, Port İstatistikleri, Erişim Kontrolü, Ağ Tanılama, Hızlı Yapılandırma ve Çevrimiçi Yükseltme gibi gelişmiş yönetim özellikleri sunar. CLI, WEB, Telnet ve SNMP erişim yöntemleri desteklenmektedir.
IEC61850 ve IEEE1613 endüstriyel standartlarına uyumlu şekilde tasarlanmıştır. Güç kaynağı veya bağlantı noktası arızası durumunda ALARM göstergesi devreye girer ve röle üzerinden bağlı alarm cihazlarına bildirim gönderilir.
Donanımı fansız, düşük güç tüketimli, geniş sıcaklık aralığında çalışabilir ve EMC uygunluk testlerinden geçmiştir. Ürün, IEC61850 standardını gerektiren enerji uygulamalarında yaygın olarak kullanılmaktadır.
| Model | Açıklama |
|---|---|
| MES5000-4GS-8T16F (MM,SC) | 4*Gigabit SFP (SFP slot) + 8*10/100Base-T(X) (RJ45) + 16*100Base-FX (Multi-Mode, SC, 2KM), dual power supply: 220VAC (90~264 VAC) or 48 VDC (36~72 VDC) |
| MES5000-4GS-8T16F (MM,ST) | 4*Gigabit SFP (SFP slot) + 8*10/100Base-T(X) (RJ45) + 16*100Base-FX (Multi-Mode, ST, 2KM), dual power supply: 220VAC (90~264 VAC) or 48 VDC (36~72 VDC) |
| MES5000-4GS-8T16F (SM,SC) | 4*Gigabit SFP (SFP slot) + 8*10/100Base-T(X) (RJ45) + 16*100Base-FX (Single-Mode, SC, 20KM), dual power supply: 220VAC (90~264 VAC) or 48 VDC (36~72 VDC) |
| MES5000-4GS-8T16F (SM,ST) | 4*Gigabit SFP (SFP slot) + 8*10/100Base-T(X) (RJ45) + 16*100Base-FX (Single-Mode, ST, 20KM), dual power supply: 220VAC (90~264 VAC) or 48 VDC (36~72 VDC) |
| Toplam Port Sayısı | : | 28 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 8 |
| 100BaseFX SFP | : | 16 |
| 1000Base SFP | : | 4 |
| IEC61850 | : | VAR |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol EEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Port Alarm, Power Supply Alarm, E-mail Alarm
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Time Management |
SNTP
|
| Interface |
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP Console port: CLI command line management port(RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity is 5A@30VDC or 10A@125VAC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: <10μs
|
|
Power Requirement |
Dual power supply redundancy, AC or DC power supply optional AC power supply: 90~264VAC, support 8A over-current protection DC power supply: 36~72VDC, support 5.5A over-current protection
|
|
Power Consumption |
No-load: 19.4W@220VAC Full-load: 21.9W@220VAC |
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: 19-inch 1U rack mounting Dimension (W x H x D): 441.6mm×290mm×44.45mm Weight: 4.5kg
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-3 (RS), Level 3 Test level: 20V/m Frequency range: 80MHz~1000MHz IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±2kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV Ethernet port: ±2kV IEC 61000-4-6 (CS), Level 3 Test level: 10V Frequency range: 150kHz-80MHz IEC 61000-4-8 (PFMF), Level 5 Stable magnetic field: 100A/m IEC 61000-4-9, Level 5 Magnetic field strength: 1000A/m IEC 61000-4-10, Level 4 Magnetic field strength: 30A/m Test frequency: 100kHz and 1MHz IEC 61000-4-12, Level 5 Test level: common mode 2.5kV, differential mode 1kV Test frequency: 1MHz, 100kHz IEC 61000-4-29 Voltage interrupts: 0%UT Duration: 100ms, 3 times Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, IEC61850, IEEE1613, Class A of SGCC(Test standards: Q/GDW 11202.4-2014, Q/GDW 1429-2012, DL/T 1241-2013), CSG(Type test) |
