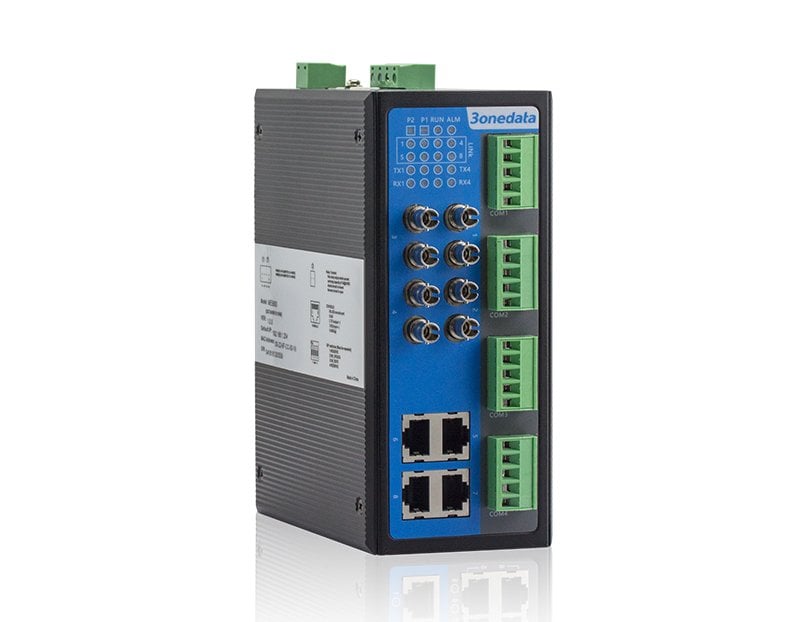

MES600-4T4F-4D (SM,SC)
IEC61850 8-port Managed Ethernet Switches with 4-port RS-232/485/422
4*10/100Base-T(X) (RJ45) + 4*100Base-FX (Single-Mode, dual fibers, SC, 20KM) + 4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC
- 4x 100M fiber port, 4x 100M bakır port ve 4x 3IN1 (RS-232/422/485) seri port (opsiyonel)
- Patentli SW-Ring teknolojisi, single ring, coupling ring, chain ring
- 12-48VDC
- –40~85℃
MES600 Serisi, 100M Layer 2 yönetilebilir endüstriyel ethernet anahtar serisidir. Bu seri, 100M fiber port ve 100M bakır portlar yanısıra 3IN1 (RS-232/422/485) seri port da içerir.
Ağ yönetim sistemi, STP / RSTP, 802.1Q VLAN, QoS, LLDP, Port Trunking, Port Mirroring, vb. gibi çeşitli ağ protokollerini ve endüstriyel standartları destekler. Ayrıca Port Konfigürasyonu, Port İstatistikleri, Erişim Kontrolü, Ağ Tanılama, Hızlı Yapılandırma, Çevrimiçi Yükseltme yanısıra CLI, WEB, Telnet, SNMP ve diğer erişim yöntemlerini destekler. Kullanıcılara ağ yönetim sistemi arayüzünün dostu tasarımı, basit ve rahat çalışma ile iyi bir deneyim sağlayabilir.
IEC61850 ve IEEE1613 endüstriyel standartlarına uyacak şekilde tasarlanmıştır. Giriş güç kaynağı, bir güç kaynağı arızalandığında cihazın normal çalışmasını sağlayabilen iki bağımsız güç kaynağı devresi içerir. DIP SWITCH cihazın yeniden başlatılmasını ve güncellenmesini sağlar. Güç kaynağı veya bağlantı noktasında bağlantı hatası olduğunda, ALARM göstergesi parlak olur ve alarm gönderir, bu arada röleye bağlı alarm cihazı alarm gönderir.
Donanım, fansız, düşük güç tüketimi, geniş çalışma sıcaklık aralığı ve EMC uygunluk testlerine sahiptir. Ürün IEC61850 gerektiren enerji uygulamalarında yaygın bir şekilde kullanılmaktadır.
| MES600-4T4F-4D (MM,SC) | 4*10/100Base-T(X) (RJ45) + 4*100Base-FX (Multi-Mode, dual fibers, SC, 2KM) + 4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC |
| MES600-4T4F-4D (MM,ST) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Multi-Mode, dual fibers, ST, 2KM)+4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC |
| MES600-4T4F-4D (SM,SC) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, SC, 20KM)+4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC |
| MES600-4T4F-4D (SM,ST) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, ST, 20KM)+4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC |
| MES600-4T4F (MM,SC) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Multi-Mode, dual fibers, SC, 2KM), dual power supply 12~48VDC |
| MES600-4T4F (MM,ST) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Multi-Mode, dual fibers, ST, 2KM), dual power supply 12~48VDC |
| MES600-4T4F (SM,SC) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, SC, 20KM), dual power supply 12~48VDC |
| MES600-4T4F (SM,ST) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, ST, 20KM), dual power supply 12~48VDC |
| Toplam Port Sayısı | : | 12 |
| Çalışma Sıcaklığı | : | -40/+85C |
| 10/100BaseT(X) | : | 4 |
| 100BaseFX SFP | : | 4 |
| Seri Port | : | RS232/422/485 |
| IEC61850 | : | VAR |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol EEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Port Alarm, Power Supply Alarm, E-mail Alarm
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Time Management |
SNTP
|
| Interface |
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning 100M fiber port: 100Base-FX, SC/ST/FC optional Console port: CLI command line management port(RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@24VDC or 0.5A@120VAC
|
|
Serial Port
|
RS-232 signal: TXD, RXD, GND RS-422 signal: T+, T-, R+, R-, GND RS-485 signal: D+, D-, GND Check bit: None, Even, Odd, Space, Mark Data bit: 5bit, 6bit, 7bit, 8bit Stop bit: 1bit, 1.5bit, 2bit Baud rate: 300-115200bps Interface: 5-pin 5.08mm pitch terminal blocks Load capacity: RS-485/422 port supports 32-point polling environment(can be customized to 128-point) Directional control: RS-485 adopts automatic data flow control technology
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: <10μs
|
|
Power Requirement |
12~48VDC The terminal block pitch is 4-pin 7.62mm Dual power supply redundancy, non-polarity, reverse connection protection
|
|
Environmental Limit |
Operating temperature range: -40~85℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95% (no condensation)
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 70mm×160mm×130mm Weight: ≤1.18kg
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 Contact discharge: ±8kV IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV IEC 61000-4-6 (CS), Level 3 Test level: 10V Frequency range: 150kHz-80MHz IEC 61000-4-8 (PFMF), Level 5 Stable magnetic field: 100A/m Short-time magnetic field(3s): 1000A/m IEC 61000-4-12, Level 3 Test level: common mode±2.5kV, differential mode±1kV Test frequency: 1MHz, 100kHz IEC 61000-4-29 Voltage interrupts: 100% Duration: 10ms, 3 times Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, IEC61850, IEEE1613, SGCC(Type test: Q/GDW 1429-2012, DL/T 1241-2013), CSG(Commissioned test) |
