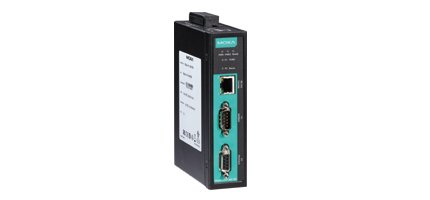

MGate 4101I-MB-PBS-T
1-port Modbus RTU/ASCII-to-PROFIBUS slave gateways
MGate 4101-MB-PBS ağ geçidi, PROFIBUS PLC'ler (örn. Siemens S7-400 ve S7-300 PLC'ler) ve Modbus cihazlar arasında iletişim sağlar. QuickLink özelliği ile I/O eşleştirmesi birkaç dakika içinde gerçekleştirilebilir. Tüm modeller sağlam bir metalik gövde ile korunur, DIN-RAIL şeklinde monte edilebilir ve opsiyonel dahili optik izolasyon sağlar.
- Protocol conversion between Modbus and PROFIBUS
- Windows utilities with innovative QuickLink function for automatic configuration within minutes
- Redundant dual DC power inputs and relay output supported
- Embedded data packet analyzer
- Powerful and visual diagnostic tool
- -40 to 75°C wide operating temperature models available
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| MGate 4101-MB-PBS | 1-port Modbus to PROFIBUS Slave gateway, 12-48VDC, 0~60°C |
| MGate 4101-MB-PBS-T | 1-port Modbus to PROFIBUS Slave gateway, 12-48VDC, -40~75°C |
| MGate 4101I-MB-PBS | 1-port Modbus to PROFIBUS Slave gateway with 2KV Isolation, 12-48VDC, 0~60°C |
| MGate 4101I-MB-PBS-T | 1-port Modbus to PROFIBUS Slave gateway with 2KV Isolation, 12-48VDC, -40~75°C |
| • PROFIBUS Interface | |
| Protocol | PROFIBUS DP-V0 Slave |
| Number of Ports | 1 |
| Data Rate | 9600 bps to 12 Mbps |
| Connector | DB9 female |
| Isolation | 2 kV (built-in) |
| DIP Switch | For termination |
| Rotary Switch | PROFIBUS address 0-99 (address 100-125 supported through software configuration) |
| • Modbus Interface | |
| Protocol | Modbus RTU/ASCII Master/Slave |
| Number of Ports | 1 |
| Serial Standards | RS-232/422/485, software selectable |
| Connectors | DB9 male |
| ESD Protection | 15 kV for all signals |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR (RS-232 only) |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Configuration Options | Serial Console, Windows Utility |
| Utility | MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Support | QuickLink, Paging |
| • Physical Characteristics | |
| Housing | Metal, IP30 |
| Weight | 500 g (1.10 lb) |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | MGate 4101-MB-PBS: 340 mA @ 12 VDC; 130 mA @ 48 VDC MGate 4101I-MB-PBS: 375 mA @ 12 VDC; 140 mA @ 48 VDC |
| Power Connector | Terminal block |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| Hazardous Location | Class 1 Division 2, ATEX, IECEx |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF |
| • MTBF (mean time between failures) | |
| Time | 513,139 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
