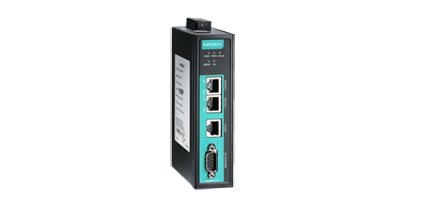

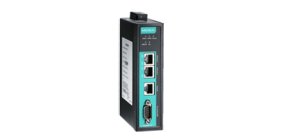

MGate 5103
1-port Modbus RTU/ASCII/TCP/EtherNet/IP-to-PROFINET gateways
MGate 5103, Modbus RTU, ASCII/TCP, EtherNet/IP ve PROFINET ağ iletişimi için bir endüstriyel Ethernet ağ geçididir. Mevcut Modbus cihazlarını bir PROFINET ağına entegre etmek için MGate 5103 bir Modbus master/slave veya EtherNet/IP adaptörü olarak kullanılabilir. Ağ geçidi saklanan Modbus veya EtherNet/IP verilerini PROFINET paketlerine dönüştürür. PROFINET IO kontrol cihazı saha cihazlarını kontrol edebilir veya izleyebilir.
- Supports PROFINET IO devices
- Supports Modbus RTU/ASCII/TCP master/slave configurations
- Effortless configuration via web-based wizard
- Supports EtherNet/IP Adapter
- Complete diagnosis information for maintenance
- Embedded Modbus traffic monitoring
- microSD card for configuration backup and event logs
- -40 to 75°C wide operating temperature models available
- Modbus port with 2 kV built-in isolation protection
- Built-in Ethernet cascading for easy wiring
- Security features based on IEC-62443
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| MGate 5103 | 1-port Modbus/EtherNet/IP-to-PROFINET gateway, 0 to 60°C operating temperature |
| MGate 5103-T | 1-port Modbus/EtherNet/IP-to-PROFINET gateway, -40 to 75°C operating temperature |
| • Ethernet Interface | |
| Protocols | EtherNet/IP, Modbus TCP, PROFINET RT |
| Number of Ports | 2 (1 IP; used for Ethernet cascading) |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| PROFINET | • Type: Device/Slave • Max. data size per I/O transmission: Input: 512 bytes Output: 512 bytes • Max. Number of Connections: MGate as PROFINET IO Device: 1 connection for read/write |
| EtherNet/IP | • Class: Adapter • CIP Objects Supported: Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port • Max. Number of Connections: MGate as Adapter: 16 connections for read-only, 1 connection for read/write • Max. Total I/O Data Size: Input: 496 bytes Output: 496 bytes |
| Modbus TCP | • Mode: Client/Server • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23 • Max. Number of Commands: 128 • Max. Number of Connections: MGate as Modbus TCP Client: 32 MGate as Modbus TCP Server: 32 • Max. Total I/O Data Size: Input: 512 bytes Output: 512 bytes |
| • Serial Interface | |
| Protocol | Modbus RTU/ASCII Master/Slave |
| Number of Ports | 1 |
| Serial Standards | RS-232/422/485, software selectable |
| Connectors | DB9 male |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| Isolation | 2 kV (built-in) |
| • Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Configuration Options | Web Console, Serial Console |
| Utility | MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Support | MXconfig, MXview, SNMP (v1, v2, v3), Private MIB |
| • Physical Characteristics | |
| Housing | Metal, IP30 |
| Weight | 507 g (1.12 lb) |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| Storage Card Slot | 1 microSD (SDHC) card slot supports up to 32 GB |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 455 mA @ 12 VDC; 125 mA @ 48 VDC |
| Power Connector | Terminal block |
| • Standards and Certifications | |
| Safety | UL 508, EN 60950-1 |
| Hazardous Location | Class 1 Division 2, ATEX, IECEx |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m IEC 61000-4-8 PFMF |
| • MTBF (mean time between failures) | |
| Time | 859,422 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
