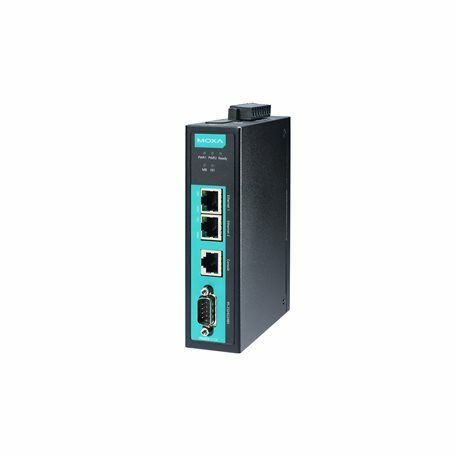

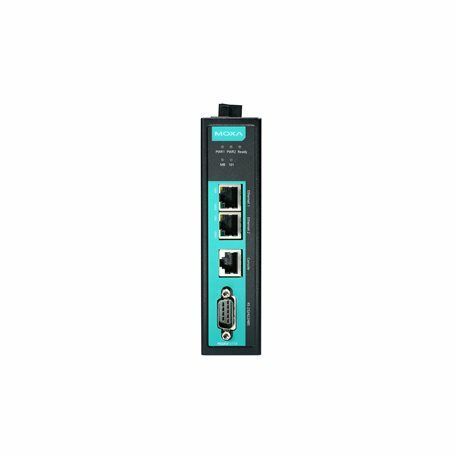

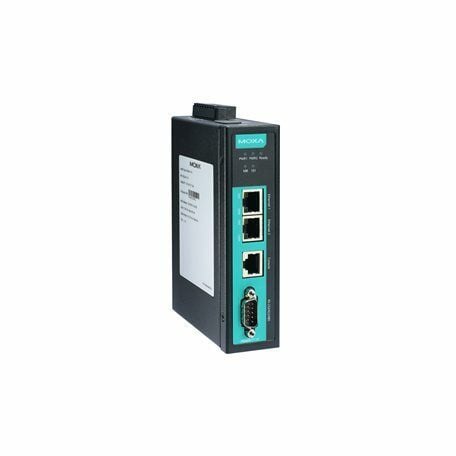

MGate 5114
1-port Modbus/IEC101 to IEC104 gateway, 0 to 60°C operating temperature
MGate 5114, Modbus RTU/ASCII/TCP, IEC 60870-5-101 ve IEC 60870-5-104 ağ iletişimleri için 2 Ethernet portlu ve 1 RS-232/422/485 seri portlu endüstriyel bir Ethernet ağ geçididir. MGate 5114, yaygın olarak kullanılan güç protokollerini entegre ederek, bir güç SCADA sistemine bağlanmak için farklı iletişim protokolleri kullanan saha cihazlarıyla ortaya çıkan çeşitli koşulları yerine getirmek için gereken esnekliği sağlar. Modbus veya IEC 60870-5-101 cihazlarını bir IEC 60870-5-104 ağına entegre etmek için, IEC 60870-5 ile veri toplamak ve veri alışverişinde bulunmak üzere MGate 5114'ü Modbus master/client veya IEC 60870-5-101 master olarak kullanılmalıdır.
MGate 5114 Serisi gateway ürünleri, özellikle kurulum aşamasında kolay sorun giderme için Modbus RTU/ASCII/TCP, IEC 60870-5-101 ve IEC 60870-5-104 Protokol Trafik Monitör'ünü destekler.
- Modbus RTU/ASCII/TCP, IEC 60870-5-101 ve IEC 60870-5-104 arasında protokol dönüşümü
- IEC 60870-5-101 master/slave'i destekler (balanced/unbalanced)
- IEC 60870-5-104 client/server destekler
- Modbus RTU/ASCII/TCP master/client ve slave/server destekler
- Web tabanlı sihirbaz aracılığıyla zahmetsiz konfigürasyon
- Kolay bakım için durum izleme ve arıza koruması
- Kolay sorun giderme için yerleşik trafik izleme/tanılama bilgileri
- Yapılandırma yedekleme/çoğaltma ve olay günlükleri için microSD kart
- Kolay kablolama için dahili Ethernet basamaklaması
- Yedekli çift DC güç girişi ve röle çıkışı
- -40 ila 75°C geniş çalışma sıcaklığına sahip modeller mevcuttur
- 2 kV izolasyon korumalı seri port
- IEC 62443'e dayalı güvenlik özellikleri
| Model | Açıklama |
|---|---|
| MGate 5114 | 1-port Modbus/IEC101 to IEC104 gateway, 0 to 60°C operating temperature |
| MGate 5114-T | 1-port Modbus/IEC101 to IEC104 gateway, -40 to 75°C operating temperature |
| Çalışma Sıcaklığı | : | 0/+60C |
| RS-232/422/485 | : | 1 |
| 10/100BaseT(X) | : | 2 |
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
2
Auto MDI/MDI-X connection
Magnetic Isolation Protection
1.5 kV (built-in)
Ethernet Software Features
Ethernet Software Features
Industrial Protocols
Modbus TCP Client (Master), Modbus TCP Server (Slave), IEC 60870-5-104 Client, IEC 60870-5-104 Server
Configuration Options
Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console
Management
ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIB
RFC1213, RFC1317
Time Management
NTP Client
Security Functions
Security Functions
Authentication
Local database
Encryption
HTTPS, AES-128, AES-256, SHA-256
Security Protocols
SNMPv3
SNMPv2c Trap
HTTPS (TLS 1.3)
Serial Interface
Serial Interface
Console Port
RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
No. of Ports
1
Connector
DB9 male
Serial Standards
RS-232/422/485
Baudrate
50 bps to 921.6 kbps
Data Bits
7, 8
Parity
Even, Mark, None, Odd, Space
Stop Bits
1, 2
Flow Control
RTS Toggle (RS-232 only), RTS/CTS
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
120 ohms
Isolation
2 kV (built-in)
Serial Signals
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
Serial Software Features
Industrial Protocols
Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, IEC 60870-5-101 Master (Balanced/Unbalanced), IEC 60870-5-101 Slave (Balanced/Unbalanced)
Configuration Options
Serial Console
Modbus RTU/ASCII
Modbus RTU/ASCII
Mode
Master, Slave
Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
128
Modbus TCP
Modbus TCP
Mode
Client (Master), Server (Slave)
Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections
32
Max. No. of Server Connections
32
Max. No. of Commands
128
IEC 60870-5-104
IEC 60870-5-104
Mode
Client / Server
Max. No. of Client Connections
32
Max. No. of Server Connections
32
Max. No. of Information Objects
2000 points
IEC 60870-5-101
IEC 60870-5-101
Mode
Master (Balanced/Unbalanced)
Slave (Balanced/Unbalanced)
Max. No. of Master Connections
1
Max. No. of Slave Connections
1 (Balanced), 31 (Unbalanced)
Max. No. of Information Objects
2000 points
Memory
Memory
microSD Slot
Up to 32 GB (SD 2.0 compatible)
Power Parameters
Power Parameters
Input Voltage
12 to 48 VDC
Input Current
455 mA @ 12 VDC
Power Connector
Screw-fastened Euroblock terminal
Relays
Relays
Contact Current Rating
Resistive load: 2 A @ 30 VDC
Physical Characteristics
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Weight
507 g (1.12 lb)
Environmental Limits
Environmental Limits
Operating Temperature
MGate 5114: 0 to 60°C (32 to 140°F)
MGate 5114-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Standards and Certifications
Safety
EN 60950-1, UL 508
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class B
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
Hazardous Locations
ATEX, Class I Division 2, IECEx
Freefall
IEC 60068-2-32
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6, IEC 60068-2-64
MTBF
MTBF
Time
1,140,815 hrs
Standards
Telcordia SR332
