Datasheet

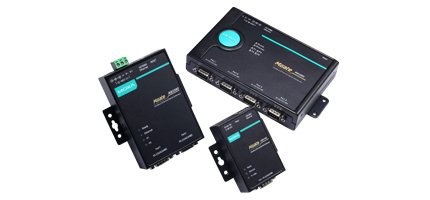

MGate MB3280
2 Port RS-232/422/485 Modbus TCP to Serial Communication Gateway
MB3180, MB3280 ve MB3480, Modbus TCP ve Modbus RTU / ASCII protokollerini dönüştüren standart Modbus ağ geçitleridir. Seri port başına 31 RTU / ASCII slave ile maksimum 16 eşzamanlı Modbus TCP master desteklenir. RTU / ASCII master’ları için, 32'ye kadar TCP slave desteklenir.
- Kolay yapılandırma için Otomatik Aygıt Yönlendirme'yi destekler
- Esnek dağıtım için TCP portu veya IP adresi ile rota desteği
- Modbus TCP ve Modbus RTU / ASCII arasında dönüştürme
- 1 Ethernet port’u ve 1, 2 veya 4 RS-232/422/485 port seçeneği
- Kolay donanım kurulumu ve yapılandırması
ÜRÜN SİPARİŞ KODLARI :
|
MGate MB3180 |
1 Port RS-232/422/485 Modbus TCP to Serial Communication Gateway |
|
MGate MB3280 |
2 Port RS-232/422/485 Modbus TCP to Serial Communication Gateway |
|
MGate MB3480 |
4 Port RS-232/422/485 Modbus TCP to Serial Communication Gateway |
| Çalışma Sıcaklığı | : | 0/+60C |
| Toplam Port Sayısı | : | 3 |
| RS-232/422/485 | : | 2 |
| Konnektör Tipi | : | DB9 Male |
| 10/100BaseT(X) | : | 1 |
| MODBUS | : | VAR |
| • Ethernet Interface | |
| Protocols | Modbus TCP |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| • Serial Interface | |
| Protocol | Modbus RTU/ASCII Slave/Master |
| Number of Ports | MB3180: 1 MB3280: 2 MB3480: 4 |
| Serial Standards | RS-232/422/485, software selectable |
| Connectors | DB9 male |
| ESD Protection | 15 kV for all signals |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| • Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Configuration Options | Web Console, Telnet Console, Windows Utility |
| Utility | MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Multi-master and Multi-drop | Master mode: 32 TCP slaves Slave mode: 16 TCP masters (request queue 32-deep for each master) |
| Support | Smart Routing, MXview, SNMP v1 (read only) |
| • Physical Characteristics | |
| Housing | Metal, IP30 |
| Weight | MGate MB3180: 340 g (0.75 lb) MGate MB3280: 360 g (0.79 lb) MGate MB3480: 740 g (1.63 lb) |
| Dimensions | Without ears: MB3180: 22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in) MB3280: 22 x 77 x 111 mm (0.87 x 3.03 x 4.37 in) MB3480: 35.5 x 102.7 x 157.2 mm (1.40 x 4.04 x 6.19 in) With ears: MB3180: 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in) MB3280: 22 x 100 x |
| • Environmental Limits | |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | MGate M3180: 200 mA @ 12 VDC MGate M3280: 250 mA @ 12 VDC MGate M3480: 385 mA @ 12 VDC |
| Power Connector | MGate MB3180: Power jack MGate MB3280/3480: Power jack and terminal block |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV (MB3180/MB3280) IEC 61000-4-5 Surge: Power: 1 kV; Signal: 2 kV (MB3480) IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| • MTBF (mean time between failures) | |
| Time | MGate M3180: 628,376 hrs MGate M3280: 503,029 hrs MGate M3480: 295,812 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
