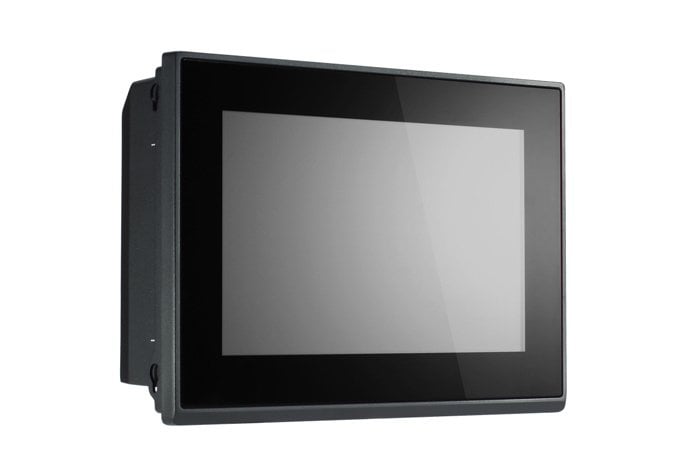

MPC-2070-E2-T-W7E
7-inch industrial fanless panel computers
DataSheet Link: MPC-2070-E2-T-W7E
MPC-2070 serisi, -40/+70°C'lik geniş bir sıcaklık aralığında çalışan, fansız tasarımı ile en zorlu endüstriyel platformlarda rahatça konumlandırılabilir. MPC-2070 ayrıca 1000nit’lik ve çoklu dokunmatik (eldiven ile kullanılabilen) ekranı ile açık havada rahatça kullanılabilir.
IoT için Microsoft Azure Sertifikalı
MPC-2070 serisi IoT uygulamalarına yönelik Microsoft Azure Sertifikasına sahiptir. MPC-2070 serisi ile endüstriyel IoT uygulamalarınızda Microsoft Azure IOT hizmetlerini kullanabilirsiniz. IOT Azure Sertifikalı program hakkında daha fazla bilgiye aşağıdaki link üzerinden ulaşabilirsiniz;
https://catalog.azureiotsuite.com/
Azure Sertifikalı Moxa ürünlerinin tam listesine de aşağıdaki link vasıtası ile ulaşabilirsiniz;
https://catalog.azureiotsuite.com/?q=moxa
- 7-inch panel computer Rugged HMI Solution Brochure
- Intel® Atom™ Processor E3826 1.46GHz
- -40 to 70°C wide-temperature design, no fan/no heater
- 1000-nit sunlight-readable LCD
- Glove-friendly and multi-touch screen
- Class 1 Division 2*, ATEX Zone 2*, and IECEx* certified
- Wide range 9 to 36 VDC power input
|
Industrial 7 inches panel computer, Intel Atom® Processor E3826 1.46 GHz, 1000 nits LCD with multi-touch, 9-36VDC, IP66 in front, -40 to 70°C operating temperature, 4GB RAM pre-installed |
|
|
MPC-2070-E2-T-W7E |
Industrial 7 inches panel computer, Intel Atom® Processor E3826 1.46 GHz, 1000 nits LCD with multi-touch, 9~36VDC, IP66 in front, -40 to 70°C operating temperature, 4GB RAM and 32GB CFast card with WS7P 64 bit OS pre-installed |
|
Industrial 7 inches panel computer, Intel Atom® Processor E3826 1.46 GHz, 350 nits LCD with multi-touch, 9-36VDC, IP66 in front, -40 to 70°C operating temperature, 4GB RAM pre-installed |
|
|
Industrial 7 inches panel computer, Intel Atom® Processor E3826 1.46 GHz, 350 nits LCD with multi-touch, 9~36VDC, IP66 in front, -40 to 70°C operating temperature, 4GB RAM and 32GB CFast card with WS7P 64 bit OS pre-installed |
• Computer| CPU | Intel® Atom™ Processor E3826, Dual Core, 1.46 GHz | Supported OS | Windows Embedded Standard 7 32/64-bit, Windows 7 Professional 32/64-bit (the OS is not pre-installed in some models) | System Memory | 4 GB pre-installed (SDRAM) | USB | USB 2.0 hosts x 2, type-A connectors, supporting system boot up | Storage | 1 CFast slot + 1 SD card slot (storage is not pre-installed in some models) | • Display | Panel Size | 7-inch viewable image size | Touch | Capacitive multi-touch with glove-friendly support | Aspect Ratio | 16:9 | Pixels | 800 x 480 | Pixel Pitch (RGB) | 0.1905 (H) x 0.1905 (V) mm | Response Time | 5 ms (gray to gray) | Contrast Ratio | 600:1 | Light Intensity | 350 or 1000 cd/m2 | Note | The brightness level of the MPC-2070 is from 0 to 10. To extend the lifetime of the display, we recommend using it with a brightness level of
8 or less at ambient temperatures above 60°C. | Viewing Angles | 140°/120° | Active Display Area | 152.4 (H) x 91.44 (V) mm | Max. No. of Colors | 16.2M (8-bit color) | • Ethernet Interface | LAN | Auto-sensing 10/100/1000 Mbps ports (RJ45 port) x 2 | Magnetic Isolation Protection | 1.5 kV, built-in | • Serial Interface | Serial Standards | 2 RS-232/422/485 ports, software-selectable (DB9 male) | • Serial Communication Parameters | Data Bits | 5, 6, 7, 8 | Stop Bits | 1, 1.5, 2 | Parity | None, Even, Odd, Space, Mark | Flow Control | RTS/CTS, XON/XOFF | Baudrate | 50 bps to 115.2 kbps | • Serial Signals | RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND | RS-422 | TxD+, TxD-, RxD+, RxD-, GND | RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND | RS-485-2w | Data+, Data-, GND | • Digital Input | Input Channels | DI x 4 | Input Voltage | 0 to 30 VDC at 25 Hz | Digital Input Levels for Dry Contacts | Logic level 0: Close to GND Logic level 1: Open | Digital Input Levels for Wet Contacts | Logic level 1: +3 V max. Logic level 0: +10 V to +30 V (Source to DI) | Connector Type | 10-pin terminal block | Isolation | 3 kV optical isolation | • Digital Output | Output Channels | DO x 4, sink type | Output Current | Max. 200 mA per channel | On-State Voltage | 24 VDC nominal, open collector to 30 VDC | Connector Type | 10-pin terminal block | Isolation | 3 kV optical isolation | • Physical Characteristics | Housing | Aluminum sheet metal | Weight | 1.40 kg (3.09 lb) | Dimensions | 200 x 140 x 45 mm (7.9 x 5.5 x 1.8 in) | Mounting | VESA mount (50 x 75 mm), and panel mount | System Cooling | Fanless thermal design | • Environmental Limits | Operating Temperature | -40 to 70°C (-40 to 158°F) | Storage Temperature | -40 to 70°C (-40 to 158°F) | Ambient Relative Humidity | 5 to 95% (non-condensing) | Anti-Vibration | 2 Grms, 5-500 Hz frequency, compliant with IEC 60068-2-6 standard | Anti-Shock | 20 Grms, half sine wave under system operating, 11 ms duration, compliant with IEC 60068-2-27 standard | • Power Requirements | Input Voltage | 12/24 VDC (Range 9 to 36 VDC) | Power Consumption | Less than 40 W | • Standards and Certifications | Safety | UL 60950-1, IEC 60950-1 | EMC | EN 55032, EN 55024 | EMI | CISPR 32, FCC Part 15B Class A | EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 | Ingress Protection Rating | IP66 (front) / IP20 (rear) | Green Product | RoHS, cRoHS, WEEE | • Warranty | Warranty Period | • Computer system: 3 years
• LCD panel: 1 year
|
