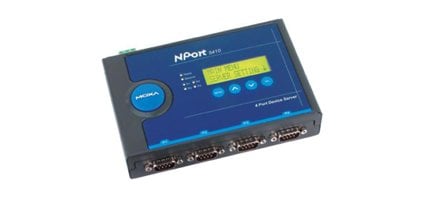

NPort 5410 w/ adapter
4-port RS-232 serial device server with adapter
NPort® 5400 aygıt sunucuları, yalnızca basit bir yapılandırmayla dört seri aygıtı Ethernet ağına rahatça ve şeffaf bir şekilde bağlayabileceğiniz bir çözümdür. Seri ve Ethernet arabirimleri arasındaki veri iletimi iki yönlüdür. Seri aygıtlarınızın yönetimini merkezileştirebilir ve yönetim ana bilgisayarlarının ağ üzerinden dağıtımını yapabilirsiniz.
- 10/100M auto-sensing Ethernet
- 4 serial ports supporting RS-232/422/485
- Socket modes: TCP server/TCP client/UDP/Real COM
- Configure via Telnet/Web/Windows utility
- SNMP MIB-II for network management
- 2 kV isolation protection for NPort 5430I/5450I/5450I-T
- -40 to 75°C operating temperature range (T model)
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| NPort 5410 | 4-Port RS-232 Serial Device Server |
| NPort 5410 w/ adapter | 4-Port RS-232 Serial Device Server with adapter |
| NPort 5430 | 4-port RS-422/485 device server |
| NPort 5430 w/ adapter | 4-port RS-422/485 device server with adapter |
| NPort 5430I | 4-port RS-422/485 device server with 2 KV isolation protection |
| NPort 5430I w/ adapter | 4-port RS-422/485 device server with 2 KV isolation protection (with adapter) |
| NPort 5450 | 4-port RS-232/422/485 device server |
| NPort 5450 w/ adapter | 4-port RS-232/422/485 device server with adapter |
| NPort 5450-T | 4-port RS-232/422/485 device server, -40 to 75°C operating temperature (without LCM) |
| NPort 5450I | 4-port RS-232/422/485 device server with 2 KV isolation protection |
| NPort 5450I w/ adapter | 4-port RS-232/422/485 device server with 2 KV isolation protection (with adapter) |
| NPort 5450I-T | 4-port RS-232/422/485 device server with 2KV isolation protection, -40 to 75°C operating temperature (without LCM) |
| Çalışma Sıcaklığı | : | 0/+55C |
| Toplam Port Sayısı | : | 4 |
| RS-232 | : | 4 |
| Konnektör Tipi | : | DB9 Male |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 4 |
| Serial Standards | NPort 5410: RS-232 NPort 5430/5430I: RS-422/485 (software selectable) NPort 5450/5450I/5450-T/5450I-T: RS-232/422/485 (software selectable) |
| Connector | NPort 5410/5450/5450I/5450-T/5450I-T: DB9 male NPort 5430/5430I: Terminal block |
| Serial Line Protection | 2 kV isolation protection (NPort 5430I/5450I/5450I-T) |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | Supports standard baudrates (unit=bps):50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP |
| Configuration Options | Web Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| • Mini Screen with Push Buttons (for standard temp. models) | |
| LCD Panel | Liquid Crystal Display on the case |
| Push Buttons | Four push buttons for convenient on-site configuration |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | 740 g (1.63 lb) |
| Dimensions | Without mounting kit: 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in) With mounting kit: 181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort 5410: 350 mA @ 12 VDC NPort 5430: 320 mA @ 12 VDC NPort 5430I: 530 mA @ 12 VDC NPort 5450/5450-T: 350 mA @ 12 VDC NPort 5450I/5450I-T: 554 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 |
| Marine | DNV (standard temp. models only) |
| Medical | EN 60601-1-2 Class B, EN 55011 (NPort 5410/5450/5450I only) |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 5410: 310,331 hrs NPort 5430/5430I: 265,650 hrs NPort 5450/5450I: 206,903 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
