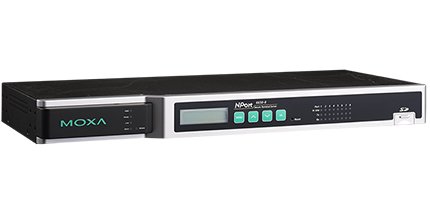

NPort 6650-8-HV-T
8-port RS-232/422/485 rackmount secure terminal servers
NPort® 6600 serisi güvenli cihaz sunucuları, küçük bir alana yerleştirilmiş çok sayıda seri cihaz kullanan uygulamalar için doğru seçimdir. Kabul edilemez güvenlik ihlallerine yönelik olarak NPort® 6600 serisi, DES, 3DES ve AES şifreleme algoritmalarının desteğiyle veri iletim bütünlüğünü sağlar. Herhangi bir tipteki seri cihazlar NPort® 6600'e bağlanabilir ve NPort® üzerindeki her seri port RS-232, RS-422 veya RS-485 iletimi için bağımsız olarak konfigüre edilebilir.
NPort® 6600, konfigürasyon için yerleşik bir LCD panele sahiptir. Panel sunucu adını, seri numarasını ve IP adresini görüntüler ve IP adresi, ağ maskesi ve ağ geçidi adresi gibi cihaz sunucusunun yapılandırma parametrelerinden herhangi biri kolayca ve hızlı bir şekilde güncellenebilir.
Not: LCD paneli sadece standart sıcaklık modelleriyle kullanılabilir.
- Up to 32 ports for high-density environments
- Nonstandard baudrates supported with high precision
- Port buffers for storing serial data when the Ethernet is offline
- Supports IPv6
- Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
- Modular design for scalability
- DES/3DES/AES for highly secure data transmissions
- Universal high-voltage ranges: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
- Security features based on IEC 62443
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| NPort 6610-8 | 8-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
| NPort 6610-8-48V | 8-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
| NPort 6610-16 | 16-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
| NPort 6610-16-48V | 16-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
| NPort 6610-32 | 32-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
| NPort 6610-32-48V | 32-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
| NPort 6650-8 | 8-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
| NPort 6650-8-T | 8-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C, 100-240 VAC input |
| NPort 6650-8-HV-T | 8-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC input, -40 to 85°C |
| NPort 6650-8-48V | 8-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
| NPort 6650-16 | 16-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
| NPort 6650-16-48V | 16-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
| NPort 6650-16-T | 16-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C, 100-240 VAC input |
| NPort 6650-16-HV-T | 16-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC input, -40 to 85°C |
| NPort 6650-32 | 32-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
| NPort 6650-32-48V | 32-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
| NPort 6650-32-HV-T | 32-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC input, -40 to 85°C |
| NPort 6450-T | 4 Port Terminal Device Server, US Plug, 3-in-1, 10/100M Ethernet, 12-48 VDC, w/o adapter |
| NPort 6450 | 4 ports RS-232/422/485 secure device server, 12-48V input, w/ adapter |
| Çalışma Sıcaklığı | : | -40/+85C |
| Toplam Port Sayısı | : | 8 |
| RS-232/422/485 | : | 32 |
| Konnektör Tipi | : | RJ45 |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation | 1.5 kV built-in |
| • Optical Fiber Interface (with network module) | |
| • Serial Interface | |
| Number of Ports | 8, 16, or 32 |
| Serial Standards | NPort 6610: RS-232 NPort 6650: RS-232/422/485 |
| Connector | 8-pin RJ45 |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Console Port | Dedicated RS-232 console port on rear panel (8-pin RJ45) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | 50 bps to 921.6 kbps (supports nonstandard baudrates) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Memory Expansion Slot | |
| Slot Type | SD slot (supports up to 2 GB) |
| • Software | |
| Network Protocols | ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE, HTTPS |
| Security Protocols | SSLv3, TLSv1.0/1.1/1.2 |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| Management | SNMP MIB-II |
| IP Routing | Static, RIP-I, RIP-II |
| • Operation Modes | |
| Standard | Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled |
| Secure | Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH |
| • Applications | |
| Terminal Sessions | 8 sessions per port |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | NPort 6600-8: 3,460 g (7.63 lb) NPort 6600-16: 3,580 g (7.89 lb) NPort 6600-32: 3,600 g (7.94 lb) |
| Dimensions | Without ears: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in) With ears: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | Standard Models: -40 to 75°C (-40 to 167°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | AC Models: 100 to 240 VAC DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC), 110 VDC (88 to 300 VDC) |
| Input Current | AC Models: 140 mA @ 100 VAC (8 ports) 192 mA @ 100 VAC (16 ports) 285 mA @ 100 VAC (32 ports) DC Models: 293 mA @ 48 VDC 200 mA @ 88 VDC |
| Alarm Contact | Relay output with current-carrying capacity of 1 A @ 24 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | NPort 6600-8/16/32: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m |
| Freefall | IEC-68-2-6, IEC-68-2-34, IEC-68-2-32 |
| Vibration | IEC-68-2-6, IEC-68-2-34 |
| Green Product | RoHS, CRoHS, WEEE |
| Transportation | NEMA TS2 |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 6610-8: 135,891 hrs NPort 6610-16: 102,373 hrs NPort 6610-32: 68,707 hrs NPort 6650-8: 636,600 hrs NPort 6650-16: 439,673 hrs NPort 6650-32: 310,078 hrs NPort 6650-8-HV-T: 501,171 hrs NPort 6650-16-HV-T: 380,006 hrs NPort 6650-32-HV-T: 290,914 |
| Standard | Telcordia (Bellcore) Standard |
| • Warranty | |
| Warranty Period | 5 years |
