Datasheet

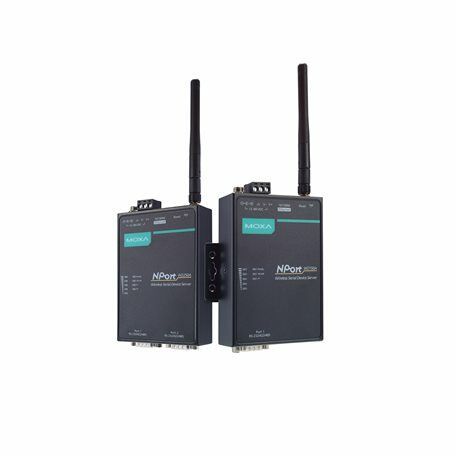

NPort W2150A-W4-EU
1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, EU plug, 12 to 48 VDC, 0 to 55°C operating temperature
NPort® W2150A-W4 ve W2250A-W4, PLC'ler, ölçüm cihazları ve sensörler gibi seri ve Ethernet cihazlarınızı kablosuz LAN'a bağlamak için ideal seçimdir. İletişim yazılımınız seri cihazlara kablosuz LAN üzerinden her yerden erişebilecektir. Üstelik kablosuz cihaz sunucuları daha az kablo gerektirir ve zor kablolama durumları içeren uygulamalar için idealdir.
Altyapı Modunda, NPort® W2150A-W4 ve NPort® W2250A-W4, kullanıcıların çeşitli AP'ler (erişim noktaları) arasında hareket etmesine veya dolaşmasına olanak sağlamak için ofis ve fabrikalardaki Wi-Fi ağlarına bağlanabilir ve aşağıdakiler için mükemmel bir çözüm sunar.
Altyapı Modunda, NPort® W2150A-W4 ve NPort® W2250A-W4, kullanıcıların çeşitli AP'ler (erişim noktaları) arasında hareket etmesine veya dolaşmasına olanak sağlamak için ofis ve fabrikalardaki Wi-Fi ağlarına bağlanabilir ve aşağıdakiler için mükemmel bir çözüm sunar.
- Seri ve Ethernet aygıtlarını IEEE 802.11a/b/g/n ağına bağlantı
- Ethernet veya WLAN kullanan web tabanlı yapılandırma
- Secure Boot (sadece MOXA sertifikalı firmware kullanımı)
- HTTPS (TLS1.3), SSH ile uzaktan yapılandırma
- WEP, WPA, WPA2 ile güvenli veri erişimi
- Erişim noktaları arasında hızlı otomatik geçiş için hızlı dolaşım
- Surge Protection (Seri, LAN ve güç bağlantıları için)
- Çift güç girişi
| Çalışma Sıcaklığı | : | 0/+55C |
| RS-232/422/485 | : | 1 |
| 10/100BaseT(X) | : | 1 |
| WLAN | : | 1 |
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
1
Magnetic Isolation Protection
1.5 kV (built-in)
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
Ethernet Software Features
Configuration Options
Web Console (HTTP/HTTPS), Windows Utility
Management
DHCP Option 82, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, Web Console
Windows Real COM Drivers
Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
Fixed TTY Drivers
macOS Versions: 10.12 to 10.15, 11.x
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
Linux kernel 5.x/4.x
Virtual Machine
VMWare ESXi (Windows 11/10)
VMware Fusion (Windows on macOS 10.12 to 11.x)
Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
Android 3.1.x and later
MIB
Device Settings MIB, RFC1213, RFC1317
Security
HTTPS/SSL
User Authentication Management: local database, RADIUS
Secure Protocols: HTTPS (TLSv1.3), SSH, SNMPv3
Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
Time Management
NTP Client, SNTP Client
WLAN Interface
WLAN Interface
WLAN Standards
802.11a/b/g/n
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -91 @ 6 Mbps
Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
Typ. -92 dBm @ 1 Mbps
Typ. -84 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -91 dBm @ 6 Mbps
Typ. -73 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Typ. -85 dBm @ 13.5 Mbps (40 MHz)
Typ. -67 dBm @ 150 Mbps (40 MHz)
Modulation Type
DSSS
OFDM
Transmission Distance
Up to 100 meters (in open areas)
Transmission Rate
802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 6.5 to 150 Mbps
Transmitter Power for 802.11b
16±1.5 dBm @ 1 Mbps
16±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
16±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11a
15±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
16 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (72.2 MHz)
Transmitter Power for 802.11n (5 GHz)
15 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (150 MHz)
Frequency Band for CN (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.745 to 5.825 GHz (5 channels)
Frequency Band for EU (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for JP (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for US (20 MHz operating channels)
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)
Wireless Security
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
WLAN Modes
Infrastructure mode
Antenna Characteristics
Connector
RP-SMA (male)
Antenna Type
Omni-directional
Security Functions
Security Functions
Authentication
Local database
RADIUS
Encryption
AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384
Security Protocols
SNMPv3
SSHv2
HTTPS (TLS 1.3)
Serial Interface
Wireless Security
WEP
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS support EAP-TLS 1.3)
WPA/WPA2-Personal
Hardware-based Security
Secure Boot
Serial Interface
Connector
DB9 male
No. of Ports
NPort W2150A-W4/W2150A-W4-T: 1
NPort W2250A-W4/W2250A-W4-T: 2
Serial Standards
RS-232, RS-422, RS-485
Operation Modes
Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Pair Connection mode, Ethernet Modem mode, Disabled
Baudrate
300 bps to 921.6 kbps
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
None, RTS/CTS, XON/XOFF
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
120 ohms
Surge
1 kV
Physical Characteristics
Physical Characteristics
Housing
Metal
Installation
Desktop, DIN-rail mounting (with optional kit), Wall mounting
Dimensions (with ears, without antenna)
77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
Dimensions (without ears or antenna)
100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
Weight
NPort W2150A-W4/W2150A-W4-T: 185 g (0.41 lb)
NPort W2250A-W4/W2250A-W4-T: 191 g (0.42 lb)
Antenna Length
108 mm (4.25 in)
Environmental Limits
Environmental Limits
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Power Parameters
Power Parameters
Input Current
NPort W2150A-W4/W2150A-W4-T: 429 mA @ 12 VDC
NPort W2250A-W4/W2250A-W4-T: 455 mA @ 12 VDC
Input Voltage
12 to 48 VDC
Standards and Certifications
Standards and Certifications
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Radio Frequency
CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301 489-17, ETSI EN 301 489-1), ARIB RCR STD-33, ARIB STD-66
Reliability
Safety
UL 62368-1
IEC 62368-1
Reliability
Alert Tools
RTC (real-time clock)
Automatic Reboot Trigger
Built-in WDT
MTBF
MTBF
Time
NPort W2150A-W4/W2150A-W4-T: 1,356,465 hrs
NPort W2250A-W4/W2250A-W4-T: 1,187,539 hrs
Standards
Telcordia SR332
