PTC-101-S-ST-LV
MOXA

PTC-101-S-ST-LV

Stokta 0 Adet Var
860,00 EUR + KDV
Kategori
Ethernet-Fiber Çeviriciler , Tüm Ürünler
Datasheet
 Döküman indir
Ürün Bilgisi

PTC-101-S-ST-LV

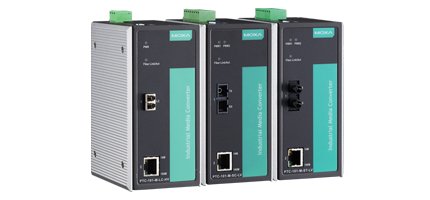

IEC 61850-3 and railway Ethernet-to-fiber media converters

PTC-101 Ethernet-fiber medya dönüştürücüleri 10/100BaseT(X) 'den 100BaseFX'e dönüştürür. Modeller SC, ST veya LC konektörleriyle kullanılabilir. PTC-101 dönüştürücüler, ek kablolama ihtiyacını ortadan kaldırır ve 10/100M, full/half-duplex ve MDI/MDI-X otomatik algılamalı IEEE 802.3 ve IEEE 802.3u/x protokollerini destekler. PTC-101, çalışma sıcaklığı, güç giriş gerilimi, dalgalanma, ESD ve titreşimi kapsayan EN 50155 uyumludur.
  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFP)
  • Power failure alarm by relay output (LV model only)
  • -40 to 85°C operating temperature range
  • Redundant dual DC power inputs (LV model only)
  • Integrated high-reliability power supply eliminates the need for external power transformer
  • Compliant with EN 50121-4
  • Complies with all EN 50155 mandatory test items*
*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard.


ÜRÜN SİPARİŞ KODLARI :


PTC-101-M-LC-HV

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature

PTC-101-M-LC-LV

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature

PTC-101-M-SC-HV

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature

PTC-101-M-SC-LV

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature

PTC-101-M-ST-HV

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature

PTC-101-M-ST-LV

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with ST connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature

PTC-101-S-LC-HV

Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with LC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature

PTC-101-S-LC-LV

Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with LC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature

PTC-101-S-SC-HV

Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature

PTC-101-S-SC-LV

Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature

PTC-101-S-ST-HV

Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature

PTC-101-S-ST-LV

Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature
