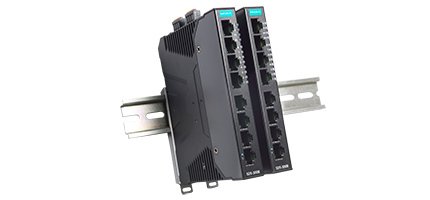

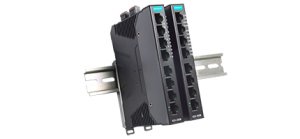

SDS-3008
Industrial 8-port smart Ethernet switches
SDS-3008 akıllı ethernet anahtarı, otomasyon ağlarının Endüstri 4.0 ile uyumlu hale getirilmesi için ideal bir üründür. Kolay konfigürasyonu ve kolay montajı ile otomasyon mühendislerinin işini kolaylaştırır. Ayrıca, tüm ürün yaşam döngüsü boyunca izlenebilirdir ve bakımı kolaydır. EtherNet/IP, PROFINET ve Modbus/TCP dahil olmak üzere en sık kullanılan otomasyon protokolleri, kullanıcı arabirimi ile kontrol edilebilir. IEEE 802.1Q VLAN, port mirroring, SNMP ve röle ile uyarı dahil olmak üzere bir dizi faydalı yönetim fonksiyonunu desteklemektedir.
- Compact and flexible housing design to fit into confined spaces
- Web-based graphical user interface design for easy device configuration and management
- EtherNet/IP, PROFINET, and Modbus/TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems
- Supports RSTP/STP for network redundancy
- Security features based on IEC-62443
ÜRÜN SİPARİŞ KODLARI :
|
SDS-3008 |
Smart Ethernet switch with 8 10/100BaseT(X) ports, -10 to 60°C operating temperature |
|
Smart Ethernet switch with 8 10/100BaseT(X) ports, -40 to 75°C operating temperature |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DHCP Client, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | IEEE 802.1Q VLAN |
| Redundancy Protocols | STP, RSTP |
| Security | Broadcast Storm Protection, Port Lock, SNMPv3, HTTPS |
| Time Management | SNTP/NTP Server/Client |
| Industrial Protocols | EtherNet/IP, PROFINET IO, and Modbus/TCP |
| MIB | RFC1213 MIB, Ether-Like MIB, IF MIB, LLDP-MIB, BRIDGE MIB, Q-BRIDGE MIB |
| • Switch Properties | |
| Max. Number of VLANs | 8 |
| VLAN ID Range | VID 1 to 4094 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 3 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed |
| Storage Port | USB storage (Type A connector for ABC-02-USB) |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state '1” • -30 to +3 V for state '0” • Max. input current: 8 mA |
| Button | Reset button |
| • Power Requirements | |
| Input Voltage | 12/24/48/-48 VDC, redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Input Current | 0.55 A @ 24 V |
| Overload Current Protection | Supported |
| Connection | 2 removable 4-contact terminal blocks |
| Reverse Polarity Protection | Supported |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP40 |
| Dimensions | 20 x 135 x 111 mm (0.79 x 5.32 x 4.37 in) |
| Weight | 438 g (0.97 lb) |
| Installation | DIN-rail mounting |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508, UL 61010-2-201, EN 60950-1 (Preliminary) |
| EMC | EN 61000-6-2/6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: Signal: 10 V IEC 61000-4-8 PFMF: 300A/m, 60 s |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | 1,391,620 hours |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
