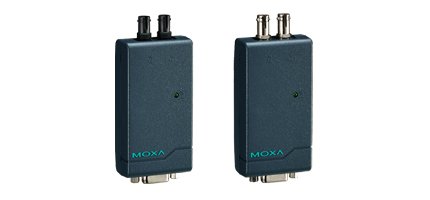

TCF-90-M-ST
Port-powered RS-232 to fiber converters
TCF-90, RS-232 sinyallerini optik fiber üzerinden ileten kompakt dönüştürücüdür. Güç, seri bağlantı noktasından veya harici bir güç kaynağından sağlanır. TCF-90, multi-mode fiber ile 5 km'ye veya single-mode fiber ile 40 km'ye kadar RS-232 iletimi sağlar. Full Duplex mod'da iki adet RS-232 aygıtını optik fiber ile bağlamak için bir çift TCF-90 dönüştürücü kullanılabilir.
- Use either external power or power over serial
- Extends RS-232 transmission up to:
- 40 km with single-mode—TCF-90-S
- 5 km with multi-mode—TCF-90-M
- Reduces signal interference
- Protects against electrical interference or chemical corrosion
- Compact size
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| TCF-90-M-ST | RS-232 to Fiber Optic Converter. Port Powered, ST Multi-mode. |
| TCF-90-S-ST | RS-232 to Fiber Optic Converter. Port Powered, ST Single-mode. |
| • Optical-Fiber Side | |
| Fiber Connector | ST |
| Fiber Cable Requirements | |
| • RS-232 Side | |
| Connector | DB9 female |
| Signals | RS-232 Tx, Rx, GND (Loop-back wiring: RTS to CTS, DTR to DSR and DCD) |
| Baudrate | 300 bps to 115.2 kbps |
| • Physical Characteristics | |
| Housing | ABS + PC |
| Dimensions | 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in) |
| Weight | 150 g (0.33 lb) |
| • Environmental Limits | |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Source of Input Power | RS-232 port (TxD, RTS, DTR) or power input jack |
| Input Voltage | 5 to 12 VDC |
| Input Current | 20 mA @ 5 VDC (with termination disabled) |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 0.5 kV; Signal: 0.5 kV EN 61000-4-5 (Surge): Power: 2 kV; Signal: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) |
| Green Product | RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) | |
| Time | 2,272,562 hrs |
| Standard | MIL-HDBK-217F |
| • Warranty | |
| Warranty Period | 5 years |
