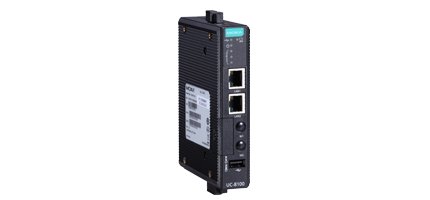

UC-8131-LX
Communication-centric RISC computing platform
UC-8100 serisi platform, gömülü veri toplama uygulamaları için tasarlanmıştır. UC-8131-LX modeli, bir veya iki adet RS-232/422/485 seri port, çift 10/100 Mbps Ethernet portu ve hücresel iletişim modüllerini destekleyen Mini PCIe soketi ile donatılmıştır. Bu donanım yapısı, karmaşık iletişim çözümlerine kolay entegrasyon sağlar.
Cortex-A8 RISC mimarisi üzerine inşa edilen UC-8131-LX, enerji izleme sistemleri başta olmak üzere birçok endüstriyel çözümde kullanılabilir. Kompakt yapısı ve zengin arabirim seçenekleri sayesinde, sahada veri toplamak ve analiz etmek için güvenilir ve emniyetli bir ağ geçidi görevi görür.
Geniş sıcaklık aralıklarında çalışacak şekilde test edilmiş olan bu cihaz, zorlu çevre koşullarında dahi güvenli performans sunar.
Geleneksel endüstri protokollerinin IoT teknolojileriyle uyumsuzluğu, veri iletiminde zorluklara neden olabilir. UC-8100 serisi ile birlikte opsiyonel olarak sunulan ThingsPro™ yazılım paketi, Modbus ve MQTT desteği sayesinde uçtan buluta veri iletimini kolaylaştırır.
- ARMv7 Cortex-A8 300/600/1000 MHz işlemci
- Çift otomatik algılamalı 10/100 Mbps Ethernet portu
- SD kart yuvası ile depolama genişletme ve işletim sistemi kurulumu
- Programlanabilir LED’ler ve kullanıcı tanımlı buton
- Hücresel modül desteği için Mini PCIe soketi
- Debian 8 açık platform
- Gelişmiş siber güvenlik özellikleri
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| UC-8112-LX | RISC-based computing platform with 1 GHz CPU, 1 x Mini PCIe socket for cellular/WiFi, 2 x Ethernet, 2 x serial ports, 1 x USB port, SD socket, 2GB Micro SD with Debian 8 |
| UC-8131-LX | RISC-based computing platform with 300MHz CPU, 1 x Mini PCIe socket for cellular/WiFi, 2 x Ethernet, 1 x serial port, 1 x USB port, 1GB SD with Debian 8 |
| UC-8132-LX | RISC-based computing platform with 300MHz CPU, 1 x Mini PCIe socket for cellular/WiFi, 2 x Ethernet, 2 x serial ports, 1 x USB port, 1GB SD with Debian 8 |
| UC-8162-LX | RISC-based computing platform with 600MHz CPU, 1 x Mini PCIe socket for cellular/WiFi, 2 x Ethernet, 2 x serial ports, 1 x USB port, 1GB SD with Debian 8 |
OPSİYONEL ÜRÜNLER :
MODUL KITLER :
| Model | Açıklama |
|---|---|
| WiFi-BGN | WiFi Package |
| CELLULAR-LTE-EU | Cellular Package |
ANTENLER :
| Model | Açıklama |
|---|---|
| ANT-LTE-OSM-03-3m BK | Multi-band antenna that covers 700-2700 MHz. Specially designed for 2G, 3G, and 4G applications. Magnetic mounting is available. |
| ANT-LTE-OSM-06-3m BK MIMO | Multi-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available. |
| ANT-3G-SMA | SMA male antenna for cellular, support bands: 850/900/1800/1900/2100 MHz |
| ANT-GPS-OSM-05-3M | 26 dBi, 1572 MHz, L1 band antenna for GPS |
| ANT-LTE-ASM-04 BK | LTE Stick antenna that covers 704-960/1710-2620 MHz providing omnidirectional radiation with a gain of 4.5 dBi. |
| ANT-LTE-ASM-05 BK | LTE stick antenna that covers 704-960/1710-2620 MHz with a gain of 5 dBi. |
KABLO / ADAPTÖR :
| Model | Açıklama |
|---|---|
| CRF-MHF/SMA(M)-14.2 | i-PEX MHF (male, on cellular module) to RP-SMA (female, on top cover) adapter with cable. For when you need to install a second WiFi antenna. |
| A-CRF-MHFSF | i-PEX MHF (male, on cellular module) to SMA (female, on top cover) adapter with cable. For GPS or second cellular antenna installation. |
| CBL-F9DPF1x4-BK-100 | Console cable with 4-pin connector |
| PWC-C7EU-2B-183 | 2.5A/250V Continental European (EU) power cord, 183 cm length |
| PWR-24270-DT-S1 | Power Adapter |
KABLOSUZ LAN ANTEN :
| Model | Açıklama |
|---|---|
| ANT-WDB-ARM-02 | 2.4/5.5 GHz 2 dBi dual-band antenna, RP-SMA (male) connector |
| Hardware Specifications | |
| • Computer | |
| CPU | ARMv7 Cortex-A8 300/600/1000 MHz |
| USB | USB 2.0 hosts x 1, Type A connector |
| DRAM | DDR3 SDRAM:UC-8112-LX/LX1: 512 MB UC-8162-LX: 512 MB UC-8132-LX: 256 MB UC-8131-LX: 256 MB |
| OS (pre-installed) | Debian 8 (Kernel 4.1) |
| • Storage | |
| Main Storage | • 1 GB SD card with OS pre-installed (UC-8131/8132/8162 only) • 2 GB micro SD card with OS pre-installed (UC-8112-LX/LX1 only) |
| Storage Expansion | SD socket for storage expansion (UC-8112 only) |
| • Ethernet Interface | |
| LAN | Auto-sensing 10/100 Mbps ports (RJ45) x 2 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Serial Interface | |
| Serial Standards | RS-232/422/485 ports, software-selectable (5-pin terminal block connector) x 1 or 2 |
| Console Port | RS-232 (TxD, RxD, GND), 4-pin pin header output (115200, n, 8, 1) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | Max. 921600 bps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| • LEDs | |
| System | Power x 1, USB x 1, SD x 1, signal strength x 3 (UC-8112/8162/8132 with cellular module) |
| LAN | 10M/100M on connector |
| Programmable | Diagnosis x 3 |
| • Switches and Buttons | |
| Push Button | Initially configured to return a diagnostic report, and to reset the device to factory defaults |
| • Physical Characteristics | |
| Housing | Polycarbonate plastic |
| Weight | 224 g (0.50 lb) |
| Dimensions | 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in) |
| Mounting | DIN-rail, wall (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Anti-Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached) |
| Anti-Shock | 20 g @ IEC 60068-2-27, half sine wave, 30 ms |
| • Power Requirements | |
| Input Voltage | 12 to 24 VDC (3-pin terminal block, V+, V-, SG) |
| Input Current | • 450 mA @ 12 VDC • 225 mA @ 24 VDC |
| Power Consumption | 5.4 W (without cellular module and external USB device attached) |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EC 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: DC Power: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m, 60 s |
| Green Product | RoHS, CRoHS, WEEE |
| • Reliability | |
| Alert Tools | Built-in RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | UC-8162-T-LX: 301,648 hrs UC-8132-T-LX: 302,648 hrs UC-8131-T-LX: 315,063 hrs UC-8112-T-LX: 1,181,598 hrs UC-8162-LX/UC-8132-LX: 1,195,173 hrs UC-8131-LX: 1,465,546 hrs UC-8112-LX: 1,149,242 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
