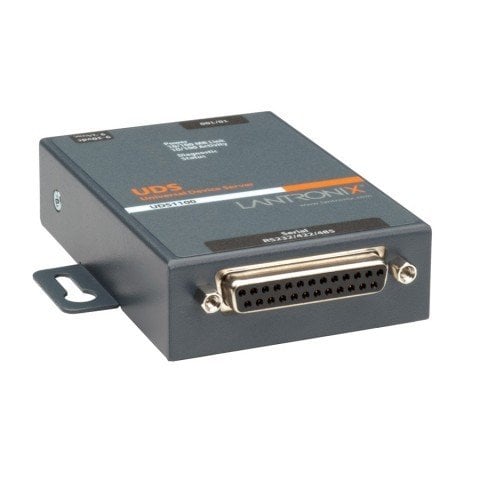

UD1100002-01 (UDS1100 serisi)
Single port 10/100 device server with international power supply and adapters
Single port 10/100 device server with international power supply and adapters
UDS serisi, kullanıcıların herhangi bir seri port’lu cihaza, ethernet veya internet üzerinden bağlamalarını, yönetmelerini ve kontrol etmelerini sağlar. Yangın ve alarm paneli ekipman üreticileri ürünlerine, UL'ye yeniden başvurmaya gerek duymadan ağ yeteneklerini kolayca ekleyebilir.
- HTTP, DHCP, Telnet, seri veya Lantronix Device Installer yardımcı programı ile kolay yapılandırma
- RS232, RS422 ve RS485 desteği
- RoHS ve WEEE
- TruPort® Com port kontrol teknolojisi
- Power over Ethernet (PoE) modeli
- UL 864 (versiyon 9) standardı
ÜRÜN SİPARİŞ KODLARI :
|
UD1100002-01 |
Single port 10/100 device server with international power supply and adapters |
|
PoE UDS1100 Single Port 10/100 Device Server |
Serial Interface
- Interface: Software-selectable RS232, RS422 or RS485 (2 and 4 wire support)
- Connectors: 1 DB25F DCE serial port
- Data Rates: Software-selectable baud rate from 300 to 230 KBaud
Serial Line Format
- Characters: 7 or 8 data bits
- Parity: odd, even, none
- Stop Bits: 1 or 2 Control
Flow Control
- Signals: CTS/RTS (Hardware)
- Flow Control: XON/XOFF (Software)
Network Interface
- Interface: 10Base-T/100Base-TX Ethernet port
- Software selectable Ethernet speed 10/100/Auto
- Software selectable Half/Full/Auto duplex
- Connectors: RJ45
- Standards: ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, and Telnet, TFTP
Indicators (LED)
- Power, 10/100 Link/Activity (green)
- 100/100 Link/Activity (green)
- Diagnostics (red)
- Status (green)
Processor
- CPU: Lantronix DSTNI-EX 48 MHz clock
- Memory: 256 KB zero wait state SRAM, 2 MB Flash
Management
- Lantronix DeviceInstaller GUI, Serial login, SNMP, Telnet login, HTTP
Power
- UDS1100:
- 9-30 VDC or 9-24 VAC on barrel connector (1.5 Watts maximum consumption)
- 9-30 VDC on DB25F serial interface
- UDS2100:
- Powered over Ethernet via 802.3AF compliant power source
Environmental
- Operating: 0° to 60° C (32° to 140°F)
- Storage: -40° to 85° C (-40° to 185° F)
Agency Approvals
- UL, CSA, FCC, CE, TUV, CTick, VCC, UL 864
Included Software
- Windows® 98/ME/NT/2000/XP-based DeviceInstaller configuration software, Com Port Redirector software and related utilities
Packaging
- Material: Metal enclosure with integrated wall mounts; optional 35 mm DIN-rail mount available
- Dimensions (LxWxH): 9.0 x 6.4 x 2.3 cm (3.5 x 2.5 x 0.9 in)
- Weight: 0.20 kg (0.45 lb)
- IP Rating: 30
Shipping Dimensions
- Dimensions (LxWxH): 35.5 x 17.1 x 7.6 cm (14 x 6.75 x 3 in)
- Weight: 1.5 kg (3.0 lbs)
Emissions
| FCC Part 15 Subpart B Class A | Radiated Emissions 30MHz – 1000MHz |
| ICES-003 Issue 4 February 2004 Class A | Radiated Emissions 30MHz – 1000MHz |
| AS/NZS CISPR 22: 2004 Class A | Radiated Emissions 30MHz – 1000MHz |
| EN55022: 1998 + A1: 2000 + A2: 2003 Class A | Radiated Emissions 30MHz – 1000MHz |
| VCCI V-3/2005.04 Class A | Radiated Emissions 30MHz – 1000MHz |
| EN61000-3-2: 2000 Class A | Harmonic Current Emissions |
| EN61000-3-3: 1995 + A1: 2001 | Fluctuations and Flicker |
Immunity
| EN55024: 1998 | +A1: 2001 +A2: 2003 |
| IEC_61000-4-2: 1995 | ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect) |
| IEC_61000-4-3: 1995 | Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80% |
| IEC_61000-4-4: 1995 | EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines |
| IEC_61000-4-5: 1995 | Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode |
| IEC_61000-4-6: 1996 | Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz) |
| IEC_61000-4-8: 1993 | Magnetic Field Immunity 50Hz 1.0 Arms/m |
| IEC_61000-4-11: 1994 | Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods) |
Isolation
- Designed with protection against transients and ESD for use under harsh environments.
- Serial Port: 15 kV ESD protection on RS232 and RS422/485 transceivers
- Power Input: Up to non-repeated 600 W 10/100 usec pulse protection against transient over voltages
- Ethernet Port: 1500 VAC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection
