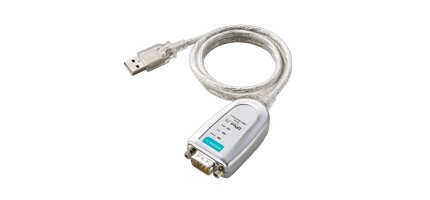

UPort 1110
1-port RS-232 USB-to-serial converters
UPort® 1100 serisi USB-Seri dönüştürücüler, seri bağlantı noktası olmayan dizüstü bilgisayarlar için mükemmel bir aksesuar olduğu gibi sahada standart COM port’u veya DB9 konnektörü olmayan farklı cihazlar ile seri haberleşme ihtiyaçlarında en uygun çözümdür. UPort® 1110, USB'den RS-232'ye, UPort® 1130/1130I USB'den RS-422/485'e ve UPort® 1150 USB'den RS-232/422/485'e dönüştürür. Tüm ürünler yeni ve eski seri aygıtlarla uyumludur.
- USB 2.0 uyumlu
- 12 Mbps USB veri hızı
- Maksimum 921,6 kbps
- Windows, WinCE ve Linux sürücü desteği
- Mini DB9 dişi terminal bloğu adaptörü
- USB ve TxD / RxD etkinliğini gösteren LED'ler
- 2 kV elektrik izolasyonu (UPort 1130I ve 1150I)
ÜRÜN SİPARİŞ KODLARI :
|
1 Port USB-to-Serial Adaptor, RS-232
|
|
|
1 Port USB-to-Serial Adaptor, RS-422/485 |
|
|
1 port USB-to-Serial Hub, RS-422/485, w/ Isolation |
|
|
1 port USB-to-Serial Hub, RS-232/422/485 |
|
|
1-port RS-232/422/485 USB-to-serial converter with optical isolation protection |
| Çalışma Sıcaklığı | : | 0/+55C |
| Toplam Port Sayısı | : | 1 |
| RS-232 | : | 1 |
| USB | : | 1 |
| • USB Interface | |
| Compliance | USB 1.0/1.1 compliant, USB 2.0 compatible |
| Connector | USB Type A |
| Speed | 12 Mbps (Full-Speed USB) |
| • Serial Interface | |
| Number of Ports | 1 |
| Serial Standards | RS-232 |
| Connector | DB9 male |
| Electrical Isolation | 2 kV (UPort 1130I and 1150I) |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| FIFO | 64 bytes |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-4w | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w | Data+(B), Data-(A), GND |
| RS-485 Data Direction | ADDC® (Automatic Data Direction Control) |
| • Operating Systems | |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0 |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x Note: Please refer to Moxa’s website for the latest driver support information. |
| • Physical Characteristics | |
| Housing | ABS + PC |
| Weight | Product only: 65 g (0.14 lb) Packaged: 200 g (0.44 lb) |
| Dimensions | 37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in) |
| • Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF |
| • Power Requirements | |
| Input Voltage | 5 VDC |
| Input Current | 30 mA @ 5 VDC |
| • MTBF (mean time between failures) | |
| Time | 1,949,025 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
