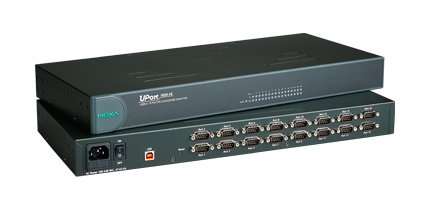

UPort 1650-16
16-port RS-232/422/485 USB-to-serial converters
UPort® 1600-16 USB-Seri dönüştürücüler, USB port'u aracılığıyla dizüstü bilgisayarınız veya iş istasyonunuza 16 RS-232 veya RS-232/422/485 aygıtı bağlamanıza izin verir.
- Standard 19-inch rackmount size and metal housing for industrial-grade requirements
- Up to 16 ports for easy USB-to-serial expansion
- 3-in-1 serial ports for a cost-effective solution
- True USB 2.0 Hi-Speed transmission for greater productivity
- 128-byte FIFO and on-chip hardware and software flow control to ensure stable data transmission during inspection
- Each serial port has its own LED indicator for easy troubleshooting
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| UPort 1610-16 | 16-port RS-232 USB-to-serial converter, adapter included |
| UPort 1650-16 | 16-port RS-232/422/485 USB-to-serial converter, adapter included |
| Çalışma Sıcaklığı | : | 0/+55C |
| Toplam Port Sayısı | : | 16 |
| RS-232/422/485 | : | 16 |
| USB | : | 1 |
| • USB Interface | |
| Compliance | USB 1.1/2.0 compliant |
| Connector | USB Type B |
| Speed | 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) |
| • Serial Interface | |
| Number of Ports | 16 |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps (including 500 kbps) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| FIFO | 128 bytes |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-4w | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w | Data+(B), Data-(A), GND |
| RS-485 Data Direction | ADDC® (Automatic Data Direction Control) |
| • Operating Systems | |
| Windows Real COM Drivers | Windows 2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0 |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| Android Driver | Android 3.1.x and later Note: Please refer to Moxa’s website for the latest driver support information. |
| • Physical Characteristics | |
| Housing | SECC sheet metal (1 mm) |
| Weight | Product only: 2475 g (5.45 lb) Packaged: 3485 g (7.68 lb) |
| Dimensions | 440 x 45.5 x 198.1 mm (17.32 x 1.79 x 7.80 in) |
| • Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55022/24 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF |
| Green Product | RoHS, CRoHS, WEEE |
| • Power Requirements | |
| Input Voltage | 100 to 240 VAC |
| Input Current | 220 mA @ 100 VAC |
| • MTBF (mean time between failures) | |
| Time | 120,001 hrs |
| Standard | MIL-HDBK-217F |
| • Warranty | |
| Warranty Period | 5 years |
