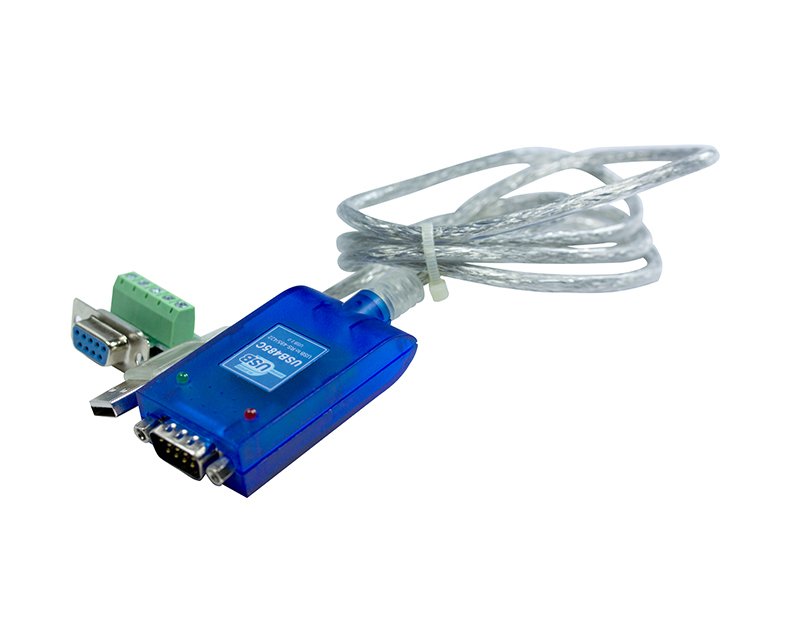

USB485C
USB - Seri (RS-422/485) Çevirici
USB→RS-422/485, USB2.0
- USB ve RS-422/485 arasında çift yönlü iletişim
- Harici besleme gerektirmez
- Otomatik seri port sinyal hızı ayarlama
- 600W surge ve 15KV elektrostatik koruma
- -20~60℃
| Çalışma Sıcaklığı | : | -20/+60C |
| Toplam Port Sayısı | : | 1 |
| RS-422/485 | : | 1 |
| USB | : | 1 |
| Konnektör Tipi | : | DB9 Male |
| Serial Port |
Standard: EIA RS-485, RS-422 Quantity of serial port: 1 RS-485 serial port or RS-485/422 serial port RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300bps~115200bps Interface form: adopt DB9 Male or 5-pin 5.08mm pitch terminal blocks Transmission distance: 1800m Direction control: RS-485 direction adopts ADDC (Automatic Data Direction Control) Load capacity: RS-485 supports 32-point polling environment (customizable 128-point) Interface protection: 600W surge protection, 15kV electrostatic protection
|
|
USB Port |
Standard: USB 1.1, USB 2.0, USB CDC V1.1 Quantity of interfaces: 1 USB interface USB signal: VCC, DATA+, DATA-, GND Transmission rate: high speed 480Mbps, full speed 12Mbps Interface form: USB A-type plug, Female Transmission distance: 5m |
|
Operating System |
Windows 98/ME/2000/XP/7, Linux v5.0 |
|
Power Requirement
|
USB interface power supply, without external power supply
|
|
Power Consumption |
Static power consumption: ≤80mA Dynamic power consumption (mean value): ≤150mA
|
|
Environmental Limit |
Operating temperature: -20~60℃ Storage temperature: -25~85℃ Relative humidity: 5%～95% （no condensation）
|
|
Physical Characteristic |
Housing: plastic Dimension (W x H x D): 33mm×18mm×72mm (cable length 1.5m) Weight: 70g
|
|
Certification |
CE, FCC, RoHS |
