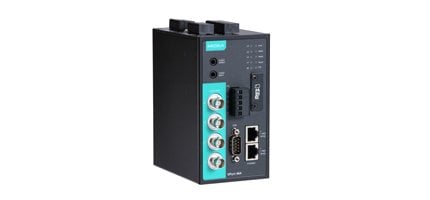

VPort 464-T
Superior video performance, 4-channel industrial video encoders
Endüstriyel uygulamalarda en iyi video kalitesini sağlayan VPort 464, diğer video sıkıştırma standartlarına göre daha düşük bir bant genişliği sağlayan H.264 video sıkıştırma algoritmasına sahip 4-kanal endüstriyel video encoder çözümüdür. VPort 464'ün her kanalı aynı anda 2 video akışı destekleyebilir veya 4 kanalın tamamı H.264 ve MJPEG sıkıştırma formatları kullanılarak 1 quad akışı sağlayacak şekilde birleştirebilir. -40/+75°C çalışma sıcaklığı, IP30 koruma ve sahip olduğu endüstriyel sertifikalar ile VPort 464, tüm endüstriyel ortamlar için en uygun seçimdir.
VPort 464, iki gigabit Ethernet portu içerir ve kaskad mod ile ağ yedekliliğini destekler. Moxa'nın yenilikçi DynaStream™ teknolojisi, video kare hızını otomatik olarak değiştirmenize ve böylece ağ bant genişliği bütçenizi kontrol etmenizin yanısıra ağ yönetimini basitleştirmenize olanak sağlar. CBR Pro™ fonksiyonu, sınırlı bant genişliği olduğu durumlarda en düşük paket kaybını garanti ederek görüntülerin mozaik efekti göstermemesini sağlar.
- Each channel supports 2 D1 30 fps streams simultaneously, or merge 1 quad stream 30 fps image into 4 channels
- Video latency under 200 ms
- 2 Ethernet ports for Cascading or Ethernet port redundancy
- Moxa DynaStream™ function support for network efficiency
- ONVIF support for standardization and interoperability
- Local storage capability with microSD card slot
- Industrial design with -40 to 75°C operating temperature
ÜRÜN SİPARİŞ KODLARI
|
4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -25 to 60°C |
|
|
VPort 464-T |
4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -40 to 75°C |
AKSESUARLAR
Yazılım
|
64-channel IP video surveillance software for industrial automation systems |
| • Video | |
| Video Compression | H.264 (MPEG4 part 10, AVC) or MJPEG |
| Video Inputs | 4, BNC connector (1.0 Vpp, 75 ohm) |
| Video Output | Via Ethernet |
| Video Streams | Dual streams for each channel, or 1 quad stream |
| NTSC/PAL | Auto-sensing or manual |
| Video Viewing | • DynaStream™ support for changing the video frame rate automatically • On-screen display: Text lines, Graphical image (BMP, GIF, or JPEG) • CBR Pro™: Support for accurate streaming bit rate control • Maximum of 5 simultaneous unicast connections, and 50 multicast clients • Image tuning to control brightness, contrast, saturation, hue, sharpness, and noise reduction |
| • Audio | |
| Audio Inputs | 1, Line-in 3.5 mm phone jack connector |
| Audio Outputs | 1, Line-out 3.5 mm phone jack connector |
| Audio Format | Mono, PCM (G.711) |
| • Network | |
| Protocols | IPv4/v6, TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS (ToS), SNMP V3, DDNS, Modbus/TCP, 802.1X, SSH/HTTPS, NTCIP |
| Ethernet | 2 10/100/1000BaseT(X) Ethernet ports, RJ45 connectors |
| • Serial Port | |
| PTZ Ports | 1 RS-232 or RS-422/485 port, terminal block connector or DB9 male connector, 115.2 kbps |
| Console Port | 1, RS-232 RJ45 port |
| • GPIO | |
| Digital Inputs | 4, max. 8 mAHigh: +13 V to +30 V; Low: -30 V to +3 V |
| Relay Outputs | 2, max. 24 VDC @ 1 A |
| • LED Indicators | |
| STAT | System status |
| PWR1 | Power 1 |
| PWR2 | Power 2 |
| FAULT | Can be configured to correspond to system alarm, power failure, or disconnected network |
| PTZ | Indicates if PTZ or COM port data is being transmitted |
| SD | Indicates if microSD card mounting or unmounting is successful |
| V1, V2, V3, V4 | Video input signal activity for channels 1 to 4 |
| • Power Requirements | |
| Input Voltage | 2 redundant power inputs, 12 to 32 VDC or 18 to 30 VAC, terminal block connector |
| Input Current | 12 to 32 VDC, 1.0 A (max.) or 18 to 30 VAC, 1.0 A (max.) |
| Power Consumption | 12 W (max.) |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in) |
| Weight | 1.13 kg (2.49 lb) |
| Installation | DIN-rail mounting (standard), wall mounting (optional) |
| • Alarms | |
| Video Motion Detection | Each channel has 3 independently configurable motion areas |
| Intelligent Video Surveillance | Camera tampering detection |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers and CGI events for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP with event-triggered actions |
| • PTZ (Pan/Tilt/Zoom) | |
| PTZ Camera Control | Via RS-232/422/485 PTZ port |
| PTZ Control Functions | Pan, tilt, zoom, focus, moving speed, preset position (max. 128 positions) |
| PTZ Function Updates | Driver upload supported |
| Supported Device Protocols | Pelco D, Pelco P, Custom Camera |
| • Security | |
| Password | User level password protection |
| Filtering | By IP address |
| Authentication | 802.1X |
| Encryption | HTTPS, SSH |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -25 to 60°C (-13 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, 2 to 13.2 Hz: 2 mm (peak-peak); 13.2 to 100 Hz: 0.7g; 1.50 hrs/axis IEC 60068-2-6, 3 to 9 Hz: 7 mm (peak-peak); 9 to 150 Hz: 1.0g; 1.86 hrs/axis |
| Shock | IEC 60068-2-27, 20g/11ms |
| Altitude | 2000 m |
| Ingress Protection | IEC 60529, IP30 |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | EC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| • MTBF (mean time between failures) | |
| Time | 569,152 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| • Minimum Viewing System Requirements | |
| CPU | Intel Core i5, 2.4 GHz or above |
| Memory | 1 GB memory or above |
| OS | Windows 7 |
| Browser | Internet Explorer 9.x or above |
| • Software Development | |
| VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website). |
| Standards | ONVIF, Profile S |
