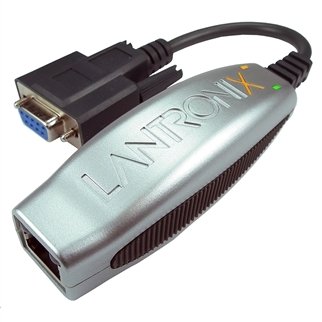

xDirect-IAP, seri arabirimi ile herhangi bir cihaz veya makineye hızlı ve kolay bir şekilde Ethernet bağlantısı sağlayan, kompakt yapıda ModBus destekli Seri -Ethernet sunucusudur. Entegre ethernet portu, PoE de dahil olmak üzere çoklu güç seçenekleri uygun fiyatlı bir ağ bağlantısı çözümü sunar.
- Entegre 10/100 Ethernet
- Seri Kablo
- Full IP Stack
- Modbus, TCP, ASCII, RTU desteği
- Maksimum 115.2Kbps
- PoE de dahil olmak üzere esnek güç seçenekleri
- -40°/+85°C
ÜRÜN SİPARİŞ KODLARI :
|
XDT10P0IA-01-S |
xDirect-IAP PoE Device Server, Modbus, RS232/422/485 DB9F Serial Port, 10/100 Ethernet Port, No Power Supply |
|
xDirect-IAP Device Server, Modbus, RS232/422/485 DB9F Serial Port, 10/100 Ethernet Port, 100-240 VAC International Power Supply with Regional Adapters |
Serial Interface
- Modes: RS232, RS422 or RS485 (2 and 4 wire support)
- Baud Rate: 300bps to 115.2 Kbps
- Characters: 7 or 8 data bits
- Stop Bits: 1 or 2
- Parity: Odd, even, more
- Modem Control Signals: DTR, DSR/DCD
- Flow Control: XON/XOFF (software), CTS/RTS (hardware)
Serial Connectors
- Single-port: DB9F (DCE Pinned)
Ethernet Interface
- Interface: 10Base-T /100Base-T (Auto-sensing)
- Speed: 10/100 Mbps
- Connector: RJ45
- Protocols: UDP, TCP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, Modbus TCP, Modbus ASCII, Modbus RTU
LED Indicators
- Power/Status, Link, Activity, Serial RX Activity & TX Activity
Processor
- CPU: Based on DSTni-EX Enhanced 16-bit x86 Architecture
- Memory: 256 KB SRAM, 1 MB Flash
Power Requirements
- Input Voltage: 5V at mini-USB-B jack
- Input Voltage: 5-15 VDC at DB9F pin 9
- Power Consumption: 1.3W max w/o PoE, 2.0W max with PoE
Form Factor
- Dimensions:
- Weight: 0.068 Kg (0.15 lbs)
Shipping Dimensions
- 194 x 149 x 52 mm (7.63″ x 5.88″ x 2.06″), non-PoE model
- 149 x 97 x 37 mm (5.88″ x 3.81″ 1.44″), PoE model
Environmental Limits
- Operating Temperature: **
- -40° to 85° C (-40° to 185° F), non-PoE model
- -40° to 70° C (-40° to 158° F), PoE model
- Storage Temperature: -40° to 85° C (-40° to 185° F)
- Relative Humidity: 0% to 90% non-condensing
** The xDirect-IAP device server is UL rated to 75° C.
The included power supply (non-PoE model only) has an operating temperature range of 0° to 40° C.
Software
- Windows 7/Vista/XP/2008 Server/2003 Server (32-bit and 64-bit versions), DeviceInstaller™ configuration software, Com Port Redirector software and related utilities
- Configuration Options: Telnet Client, Serial Terminal
Isolation and Protection
- Serial Port: 15 KV ESD protection on RS232 and RS422/485 transceivers
- Ethernet Port: 1500 VAC isolation shielded
- PoE: 1500 VAC isolation
Regulatory Approvals
- Emissions:
- FCC Part 15, Subpart B, Class B
- EN55022, Class B
- EN61000-3-2, EN61000-3-3
- ICES-003 Issue 4
- AS/NZS CISPR22
- Immunity:
- EN55024
- EN61000-4-2, EN6100-4-3, EN61000-4-4, EN61000-4-5,
- EN61000-4-6, EN61000-4-8, EN61000-4-11
- Agency Approvals:
- UL 60950-1, 2nd Edition
- CAN/CSA C22.2 No. 60950-1-07, 2nd Edition
- CE
- VCCI
- C-Tick
- IEC 60950-1 2005, 2nd Edition
Warranty
- 5-year Limited
