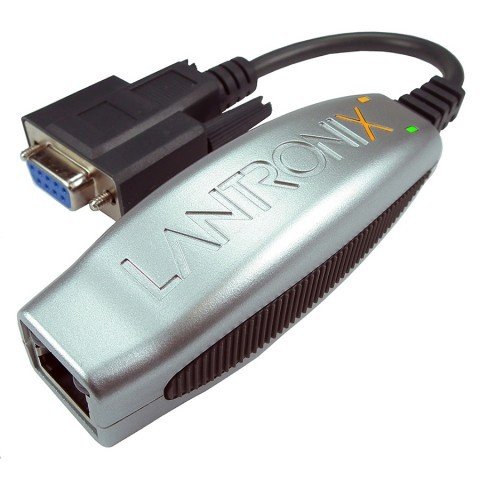

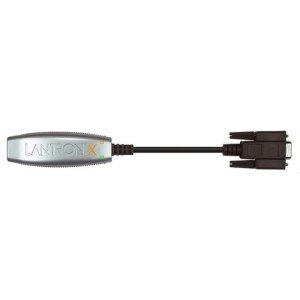

XDT4851002-01-S
xDirect485 Single Port RS232/422/485 10/100 Device Server, 100-240 VAC International Power Supply with Regional Adapters
xDirect, seri arabirimi ile herhangi bir cihaz veya makineye hızlı ve kolay bir şekilde Ethernet bağlantısı sağlayan, kompakt yapıda Seri -Ethernet sunucusudur. Entegre ethernet portu, PoE de dahil olmak üzere çoklu güç seçenekleri ile xDirect, uygun fiyatlı bir ağ bağlantısı çözümü sunar. xDirect, kullanıcının bir PC, akıllı telefon veya tabletten standart bir web tarayıcısı kullanarak cihaza erişmesini ve yapılandırmasını sağlayan dahili bir web sunucusu ile birlikte gelir.
- Entegre 10/100 Ethernet
- Seri Kablo
- Full IP Stack ve Web Server Uygulaması
- Maksimum 921,6Kbps
- 128/192/256-bit AES
- PoE de dahil olmak üzere esnek güç seçenekleri
- -40°/+85°C
ÜRÜN SİPARİŞ KODLARI :
|
xDirect PoE Single Port RS232/422/485 10/100 Device Server, No Power Supply |
|
|
xDirect232 Single Port RS232 10/100 Device Server, 100-240 VAC International Power Supply with Regional Adapters |
|
|
XDT4851002-01-S |
xDirect485 Single Port RS232/422/485 10/100 Device Server, 100-240 VAC International Power Supply with Regional Adapters |
Serial Interface
- Modes: RS232, RS422* or RS485* (2 and 4 wire support)
- Baud Rate: 300bps to 921.6 Kbps
- Characters: 7 or 8 data bits
- Stop Bits: 1 or 2
- Parity: Odd, even, more
- Control Signals: CTS/RTS (Hardware)
- Flow Control: CTS/RTS, XON/XOFF
*Available on xDirect485 & PoE models
Serial Connectors
- Single-port: DB9F (DCE Pinned)
Ethernet Interface
- Interface: 10Base-T /100Base-T (Auto-sensing)
- Speed: 10/100 Mbps
- Connector: RJ45
- Protocols: UDP, TCP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, Telnet Com Port Control
LED Indicators
- Power/Status, Link, Activity, Serial RX Activity & TX Activity
Processor
- CPU: Based on DSTni-EX Enhanced 16-bit x86 Architecture
- Memory: 256 KB SRAM, 1 MB Flash
Power Requirements
- Input Voltage: 5V at mini-USB-B jack
- Input Voltage: 5-15 VDC at DB9F pin 9
- Power Consumption: 1.3W max w/o PoE, 2.0W max with PoE
Form Factor

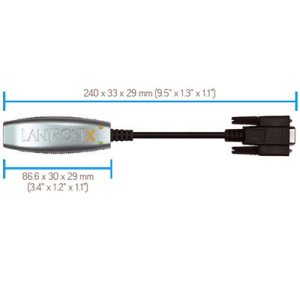

- Dimensions:
- Weight: 0.068 Kg (0.15 lbs)
Shipping Dimensions
- 180 x 130 x 53 mm (LxWxH)
Environmental Limits
- Operating Temperature: **
- -40° to 85° C (-40° to 185° F), non-PoE models
- -40° to 70° C (-40° to 158° F), PoE model
- Storage Temperature: -40° to 85° C (-40° to 185° F)
- R elative Humidity: 0% to 90% non-condensing
** The xDirect is UL rated to 75° C. The included power supply has an operating temperature range of 0° to 40° C. Extended temperature power supplies are available (refer to Ordering Information section).
Software
- Windows 7/Vista/XP/2008 Server/2003 Server (32-bit and 64-bit versions), DeviceInstaller™ configuration software, Com Port Redirector software and related utilities
- Configuration Options: Web Browser, Telnet Client, Serial Terminal
Security
128/192/256-bit AES Encryption
Isolation and Protection
- Serial Port: 15 KV ESD protection on RS232 and RS422/485 transceivers
- Ethernet Port: 1500 VAC isolation shielded
- PoE: 1500 VAC isolation
Regulatory Approvals
- Emissions:
- FCC Part 15, Subpart B, Class B
- EN55022, Class B
- EN61000-3-2, EN61000-3-3
- ICES-003 Issue 4
- AS/NZS CISPR22
- Immunity:
- EN55024
- EN61000-4-2, EN6100-4-3, EN61000-4-4, EN61000-4-5,
- EN61000-4-6, EN61000-4-8, EN61000-4-11
- Agency Approvals:
- UL 60950-1, 2nd Edition
- CAN/CSA C22.2 No. 60950-1-07, 2nd Edition
- CE
- VCCI
- C-Tick
- IEC 60950-1 2005, 2nd Edition
Warranty
- 5-year Limited
