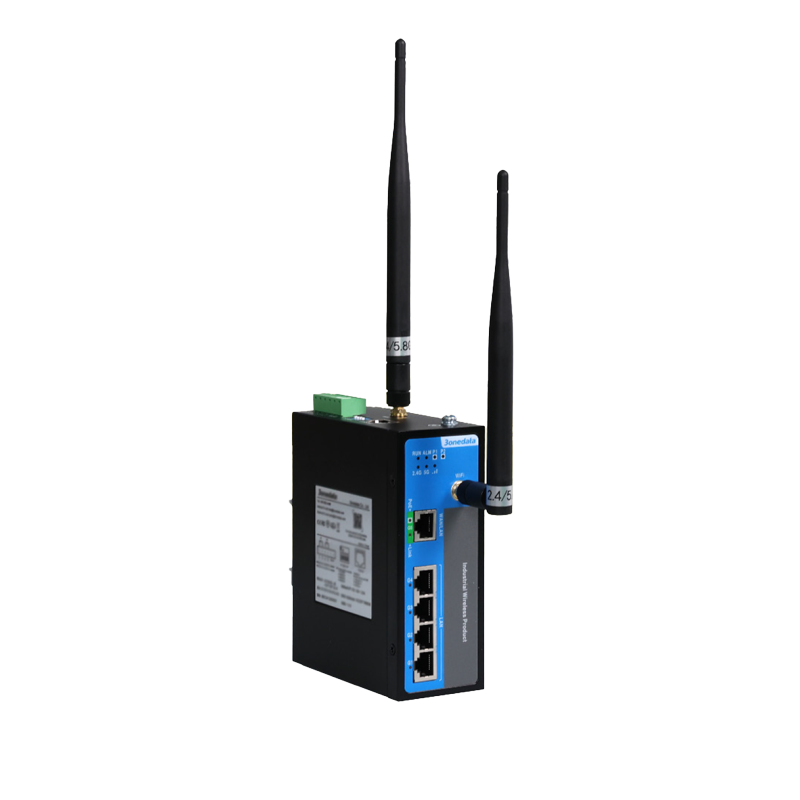

IAP3300L-2E-4GT1GP-2LVI
Wireless Single-band Access Point
- 2 x 2.4G/5G anten arayüzü, 4 x Gigabit RJ45 port (LAN) ve 1 x Gigabit PoE RJ45 port (LAN/WAN) desteği
- WiFi6 (802.11ax) desteği; sistem kapasitesini ve eşzamanlı erişimi artırır, iletim gecikmesini azaltır
- Routing, AP, bridge ve client mode gibi çoklu network modları desteği
- IEEE802.3at/af PoE power supply input ve 12~48VDC power supply input desteği
- -40~55℃ geniş çalışma sıcaklık aralığı desteği
IAP3300L-2E-4GT1GP-2LVI, 5-port full Gigabit indoor dual-band WiFi6 wireless AP’dir. PoE güç beslemesi IEEE802.3af/at protokol standardına uygundur. Cihaz; 2.4G/5G combined anten arayüzü, Gigabit RJ45 port (LAN), Gigabit PoE RJ45 port (LAN/WAN) ve diğer arayüzleri sunar. DIN-Rail veya wall mounting desteğiyle farklı uygulama sahalarının ihtiyaçlarını karşılar.
Management system; route, AP, bridge, client, dual-link ve diğer çalışma modlarını destekler. IEEE802.11a/b/g/n/ac/ax wireless technology desteğiyle cihazın toplam wireless rate’i 1774.5Mbps’e ulaşabilir. WPA/WPA2/WPA3 gibi wireless encryption methodlarını destekler; ayrıca SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, port forwarding, port redirection, ARP binding, DMZ setting gibi security policy sunar. Virtual AP desteği vardır; yani tek bir AP cihazı birden fazla SSID’yi destekleyebilir.
DIP switch, cihazın fabrika ayarlarına dönmesini sağlar. Donanımı fanless, düşük güç tüketimli, geniş sıcaklık ve voltaj aralıklı tasarıma sahiptir ve zorlu EMC gereksinimlerine yönelik endüstriyel testlerden geçmiştir. Tüm bileşenleri endüstriyel sınıftadır, IP40 koruma derecesine sahiptir.
Cihaz; AGV araçları, endüstriyel robotlar, fabrika otomasyonunda akıllı depolama, petrokimya endüstrisi, enerji izleme ve benzeri uygulamalarda yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| IAP3300L-2E-4GT1GP-2LVI | Wi-Fi 6, 5*10/100/1000 Base-T(X) RJ45 (1*48VDC PoE input), 2*combined*2.4G/5.8G RP-SMA-K antenna interface, dual power supply:12~48VDC, DIN-Rail/wall mounting, -40~55℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE802.11a/b/g/n/ac/ax for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE802.11e for WWM
IEEE802.3af for PoE
IEEE802.3at for PoE+
Working Mode
Routing mode (WAN: PPPoE dial-up, static IP, DHCP dynamic IP acquisition)
AP mode (LAN: static IP, DHCP dynamically acquiring IP)
Bridge mode (connection: WDS bridge, universal bridge; point-to-point, roaming)
Client mode (connection: WDS bridge, universal bridge, wireless NAT; point-to-point, efficient roaming)
Dual-link mode (connection: WDS bridge, Dual-universal bridge,
Dual-wireless NAT; Seamless roaming)
WLAN
WAP/WAP2/WAP3 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, RTS threshold, China/US wireless channel, WMM
Management
System state, network status, wireless state, device state, ARP table, routing table, intranet settings, extranet settings, wireless settings, AC management, SNMP management, QoS management, AP roaming control, roaming agent, user settings, system upgrade, timed restart, profile update, system log, wireless user list, and Wi-Fi real-time traffic monitoring, log management, time settings, access settings and diagnostic tools
Security Policy
Wireless user black/white list, wireless user event notice, IP filtering, MAC filtering, URL filtering, port forwarding, port redirection, ARP binding, DMZ settings, access settings
Routing/Switching
Static routing (routing mode, wireless NAT)
Location Service
Wireless probe
Troubleshooting
Network detection, Ping test, route tracing
Time Management
NTP Client
Radio Frequency
802.11b/g/n/ax: 2.412GHz~2.4835GHz
802.11a/n/ac/ax: 5.18GHz~5.825GHz
RF power output: 27dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Receiving Sensitivity
802.11b: -87dBm@1Mbps, -76dBm@11Mbps
802.11g/a: -82dBm@6Mbps, -65dBm@54Mbps
802.11n: -82dBm@MCS0, -64dBm@MCS7
802.11ac: -82dBm@MCS0, -57dBm@MCS9
802.11ax: -82dBm@MCS0, -52dBm@MCS11
Transmitting Power
802.11b: 24dBm@1Mbps, 20dBm@11Mbps
802.11g/a: 24dBm@6Mbps, 20dBm@54Mbps
802.11n: 24dBm@MCS0, 20Bm@MCS7
802.11ac: 24dBm@MCS0, 20Bm@MCS9
802.11ax: 24dBm@MCS0, 20Bm@MCS11
Interface
Gigabit RJ45 port (LAN): 4 10/100/1000Base-T(X) self-adaptive RJ45 LAN port, support automatic flow control, full/half duplex mode, MDI/MDI-X self-adaption
Gigabit RJ45 port (LAN/WAN): 1 10/100/1000Base-T(X) self-adaptive
RJ45 LAN/WAN port, supports automatic flow rate control, full/half duplex, MDI/MDI-X self-adaption; supports IEEE802.3af/at standard PoE power input
Antenna interfaces: 2 2.4/5G combined antenna interfaces, adopting
RPSMA-K connector
Console port: CLI command management port(RS-232)
Relay (Reserved): one relay output, and adopts 6-pin 5.08mm pitch terminal blocks, with the relay occupying two pins
Power Supply
Gigabit PoE RJ45 port: supports IEEE802.3af/at standard, PoE 48VDC power input
Power supply terminal: 12~48VDC power input, support non-polarity, using 6-pin 5.08mm pitch terminal blocks, with power supply occupies 4 pins
Indicator
Running indicator, alarm indicator, power indicator, 2.4G indicator, 5.8G indicator, 2.4G/5G bridge signal strength indicator, WAN indicator, LAN indicator, PoE indicator
Power Consumption
Normal temperature No-load
9.2w@12VDC, 8.3w@24VDC, 8.2w@36VDC, 8.8w@48VDC
Normal temperature full load
21.6w@12VDC, 18.0w@24VDC, 19.0w@36VDC, 18.7w@48VDC
High temperature full load
22.3w@12VDC, 19.0w@24VDC, 18.7w@36VDC, 18.9w@48VDC
Working Environment
Operating temperature: -40~55℃
Storage temperature: -40~85℃
Relative humidity: 5%～ 95% (no condensation)
Physical Characteristic
Housing: IP40 protection grade
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: 741g
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet port: ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
