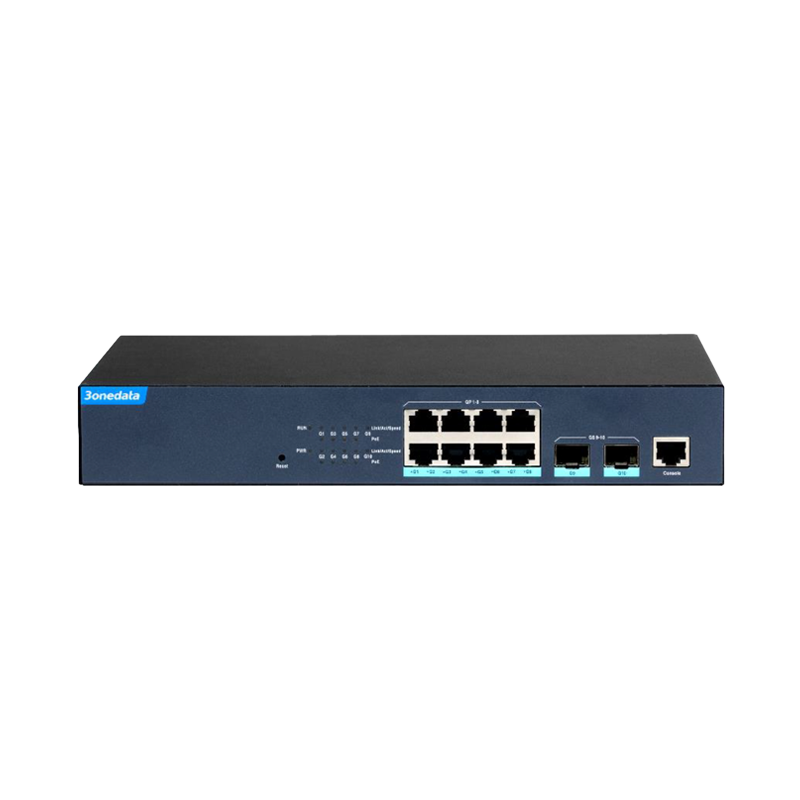

ICS5000-E8GP2GS-PRO
8*10/100/1000Base-T(X) (PoE) RJ45 + 2*Gigabit SFP slot, power supply 220VAC/DC (100-240VAC/DC)
Rack Montajı 10 Port Gigabit Layer 2 Managed PoE Ethernet Switch
- 8 x Gigabit PoE port, 2 x Gigabit SFP slot destekler
- Ring patentli ring network teknolojisi; single ring, coupling ring, chain ring, dual-homing topolojilerini destekler ve ağ arızası otomatik toparlanma süresi < 20 ms
- ARP, STP/RSTP/MSTP, MRP, ERPS, VLAN, LACP, IGMP Snooping, LLDP, SNMP gibi birçok network protokolü ve endüstri standardını destekler
- 220VAC/DC (100–240VAC/DC) güç girişi
- -10~45°C çalışma sıcaklık aralığı
- IP20 koruma seviyesi
ICS5000-E8GP2GS-PRO, 10 port full Gigabit Layer 2 network managed PoE Ethernet switch’tir. PoE beslemesi IEEE802.3af/at standardına uygundur ve bağlı powered device cihazlarını Ethernet üzerinden besleyerek kablo ihtiyacını azaltır. Seri; gigabit PoE portları ve gigabit SFP slotları sunar, self-negotiation sayesinde karşı uçla otomatik hız ve duplex anlaşması yapabilir. 220VAC/DC (100–240VAC/DC) power input desteğine sahiptir. Desktop veya rack mounted kurulum seçenekleriyle farklı uygulama sahalarına uyum sağlar. Network management system; IPv4, ARP, Ring, STP/RSTP/MSTP, MRP, ERPS, VLAN, IGMP Snooping, LLDP, LACP, Port Mirroring gibi birçok network protokolünü ve endüstri standardını destekler. SNMP merkezi yönetim, port statistics, storm suppression, network diagnosis, online upgrade, PoE management gibi kapsamlı yönetim fonksiyonlarına sahiptir. HTTP, HTTPS, Telnet, SSH erişim yöntemlerini destekler ve kullanıcı dostu arayüz tasarımıyla kolay kullanım sunar.
Cihaz üzerindeki RESET butonu yeniden başlatma ve factory reset işlevini destekler. Ürün aktif fanlı yapıda tasarlanmıştır. Donanım düşük güç tüketimli geniş sıcaklık tasarımına sahiptir ve zorlu EMC gereksinimleri için sıkı endüstriyel testlerden geçmiştir. Akıllı şehir uygulamaları, güvenli şehir çözümleri, yeni enerji sistemleri ve akıllı üretim gibi birçok endüstriyel sahada geniş şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| ICS5000-E8GP2GS-PRO | Layer 2, 8*10/100/1000Base-T(X) (PoE) RJ45 + 2*Gigabit SFP slot, power supply 220VAC/DC (100-240VAC/DC), rack mounting, -40~75℃ operating temperature |
Standard & Protocol
10Base-T, following IEEE 802.3
100Base-TX, following IEEE 802.3u
1000Base-T, following IEEE 802.3ab
1000Base X, following IEEE 802.3z
Flow control, following IEEE 802.3x
Spanning tree, following IEEE 802.1D
Fast spanning tree, following IEEE 802.1w
Multiple spanning trees, following IEEE 802.1s
ERPS, following ITU-T G.8032
VLAN, following IEEE 802.1Q
LLDP, following IEEE 802.1AB
LACP, following IEEE 802.3ad
PoE, following IEEE 802.3af
PoE+, following IEEE 802.3at
Management
SNMP v1/v2c/v3 centralized management device, port mirroring, LLDP, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server, PoE management (PoE product support)
Security
User permission grading, SSH/HTTPS protocol authorization, link oscillation protection, port loop detection, Smart Link, port alarm
Switch Function
802.1Q VLAN, MAC, Static Aggregation, LACP, ARP, Storm Suppression
Unicast / Multicast
IGMP Snooping
Redundancy Technology
Ring, MRP, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Traceroute, network cable diagnosis, DDMI
Time Management
NTP client/server, time zone configuration
Interface
Gigabit PoE: 10/100/1000Base-T(X), Automatic Flow Control, Full/Half Duplex, MDI/MDI-X automatic detection; Single port can support IEEE802.3af standard PoE. The output power is 15.4W, which is the standard PoE+ output power of IEEE802.3at 30W; The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Gigabit SFP: 1000Base-X SFP slot
CONSOLE port: CLI command line management port (RS-232), RJ45
Indicator
Power indicator light, operation indicator light, alarm indicator light, interface indicator light
Switch Property
Transmission method: storage and forwarding
MAC address: 8K
Cache: 4.1Mbit
Backplane bandwidth: 20G
Exchange latency:<10 S
Power Supply
220VAC/DC (100-240VAC/DC)
Three-phase socket
Power Consumption
Empty: 5.9W@220VAC
Full load: 156.5W@220VAC
Working Environment
Working temperature: -10~45
Storage temperature: -40~75
Relative humidity: 5%~95% (without condensation)
Physical Characteristic
Shell: IP20 protection level, metal shell
Size (width × high × Depth: 280mm × 44mm × 180mm (excluding hanging ears)
Installation: rack mounted
Weight: 1456g
Industrial Standard
IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 3
Contact discharge: 6kV
Air discharge: 8kV
IEC 61000-4-4 (EFT, Electrical Fast Transient Pulse Immunity), Level 3
Power supply: 2kV
Electric port: 1kV
IEC 61000-4-5 (Surge, Surge Immunity), Level 3
Power supply: common mode 2kV, differential mode 1kV
Electrical port: common mode 2kV, differential mode 1kV
Impact: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
