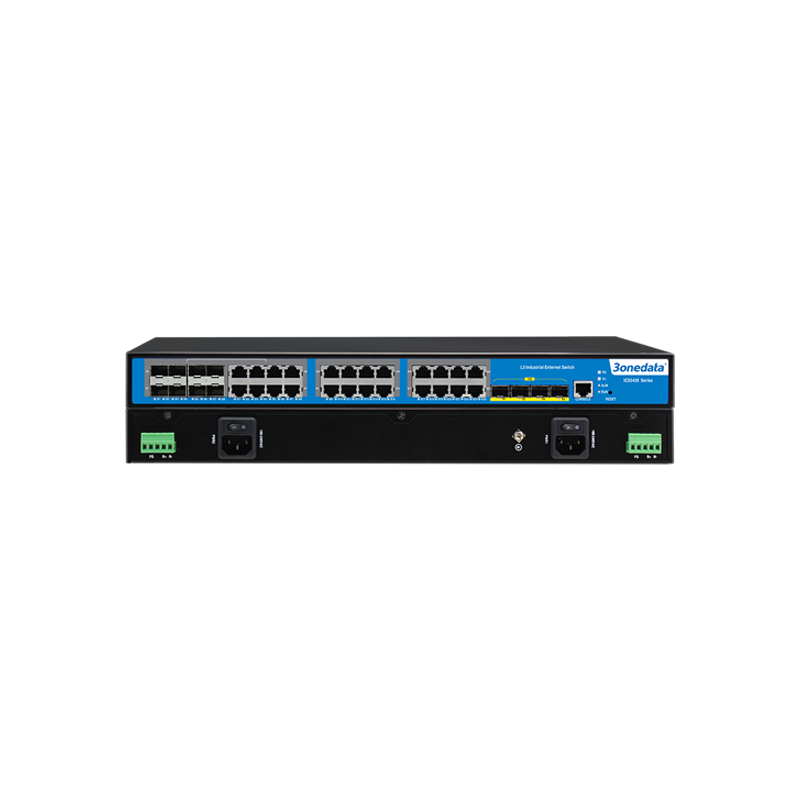

ICS5428-16GT8GC4XS-2P48
16*10/100/1000Base-T(X) RJ45 + 8*1000M Combo + 4*1G/10G SFP, dual power supply: 48VDC (36~72VDC)
28 Port 10 Gigabit Layer 3 Yönetilebilir Endüstriyel Ethernet Switch
- 4 adet 10 Gigabit fiber port (SFP+ slot) veya 4 adet Gigabit fiber port (SFP slot), 8 adet Gigabit combo port (SFP slot veya RJ45) ve 16 adet Gigabit copper port (opsiyonel PoE) desteği
- Ring patented technology kullanımı; single ring, coupling ring, chain, Dual-homing function desteği
- ERPS ve loop detection desteği; data loop'tan kaynaklanan broadcast storm’u önleyerek döngüyü etkin biçimde ortadan kaldırır
- 10 Gigabit bant genişliği; yüksek performans ve yüksek hızla büyük miktarda video, ses ve veri iletimi sağlar
- Opsiyonel dual AC/DC power supply desteği; giriş voltajı: 100~240 VAC/DC veya 48 VDC veya 24 VDC
- -40~75 ℃ geniş çalışma sıcaklık aralığı desteği
ICS5428 serisi; 28 portlu Gigabit/10 Gigabit Layer 3 endüstriyel Ethernet switch’tir. 10 Gigabit SFP slotları, Gigabit SFP slotları, Gigabit PoE portları, Gigabit copper portları ve Gigabit fiber/copper combo port sunar. 1U rack montaj tasarımına sahiptir. PoE güç beslemesi IEEE802.3af/at protokol standardına uygundur ve Ethernet üzerinden bağlı cihazlara güç sağlayarak bu cihazların ek kablo ihtiyacını azaltır. Zengin arayüz çeşitliliği, Gigabit/10 Gigabit kombinasyon bant genişliği ve yüksek performanslı, yüksek hızlı video, ses ve veri iletim kabiliyeti büyük ölçekli endüstriyel ağ uygulamalarının gereksinimlerini karşılar.
Ağ yönetim sistemi; ARP, VRRP, RIP, OSPF, BGP, NAT, ERPS, STP/RSTP/MSTP, 802.1Q VLAN, QoS, IGMP Snooping (statik multicast), LLDP, port trunking ve port mirror gibi çok sayıda network protokolü ve endüstri standartları desteği sunar. Port konfigürasyonu, port istatistikleri, 802.1X authentication, network diagnosis, rapid configuration, online upgrade ve loop detection gibi kapsamlı yönetim işlevlerine sahiptir. CLI, WEB, Telnet, SSH, SNMP ve diğer erişim yöntemlerini destekler. Kullanıcı dostu arayüz tasarımı ve basit, pratik kullanım sayesinde ağ yönetim sistemi iyi bir kullanıcı deneyimi sağlar.
Ürün, opsiyonel dual AC/DC power supply desteğine sahiptir. Giriş güç beslemesi iki bağımsız güç devresinden oluşur; böylece güç kaynaklarından biri arıza yapsa bile cihazın normal çalışması sağlanır. Güç beslemesinde veya portta link arızası olduğunda ALARM göstergesi yanar ve alarm verir; aynı anda röleye bağlı alarm cihazı da hızlı saha arıza tespiti için uyarı gönderir. Donanım fanless, düşük güç tüketimli, geniş sıcaklık ve voltaj aralığına sahip olacak şekilde tasarlanmıştır; zorlu EMC gereksinimlerine uygun olduğunu kanıtlayan sıkı endüstriyel standart testlerinden geçmiştir. Akıllı şebeke, raylı ulaşım, akıllı şehir, güvenli şehir, yeni enerji, akıllı üretim gibi birçok endüstriyel alanda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| ICS5428-16GT8GC4XS-2P220 | Layer 3, 16*10/100/1000Base-T(X) RJ45 + 8*1000M Combo + 4*1G/10G SFP, dual power supply: 100~240VAC/DC, rack mounting, -40~75℃ operating temperature |
| ICS5428-16GT4GS8GC-2P220 | Layer 3, 16*10/100/1000Base-T(X) RJ45 + 4*1000M SFP + 8*1000M Combo, dual power supply: 100~240VAC/DC, rack mounting, -40~75℃ operating temperature |
| ICS5428-16GT8GC4XS-2P48 | Layer 3, 16*10/100/1000Base-T(X) RJ45 + 8*1000M Combo + 4*1G/10G SFP, dual power supply: 48VDC (36~72VDC), rack mounting, -40~75℃ operating temperature |
| ICS5428-16GT4GS8GC-2P48 | Layer 3, 16*10/100/1000Base-T(X) RJ45 + 4*1000M SFP + 8*1000M Combo, dual power supply: 48VDC (36~72VDC), rack mounting, -40~75℃ operating temperature |
| ICS5428-16GT8GC4XS-2P24 | Layer 3, 16*10/100/1000Base-T(X) RJ45 + 8*1000M Combo + 4*1G/10G SFP, dual power supply: 24VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| ICS5428-16GT4GS8GC-2P24 | Layer 3, 16*10/100/1000Base-T(X) RJ45 + 4*1000M SFP + 8*1000M Combo, dual power supply: 24VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| ICS5428-16GP8GC4XS-2P48 | Layer 3, 16*10/100/1000Base-T(X) PoE RJ45 + 8*1000M Combo + 4*1G/10G SFP, dual power supply: 48VDC (36~72VDC), rack mounting, -40~75℃ operating temperature |
| ICS5428-16GP4GS8GC-2P48 | Layer 3, 16*10/100/1000Base-T(X) PoE RJ45 + 4*1000M SFP + 8*1000M Combo, dual power supply: 48VDC (36~72VDC), rack mounting, -40~75℃ operating temperature |
| Toplam Port Sayısı | : | 28 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 16 |
| Combo Port | : | 8 |
| 1G/10G | : | 4 |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE802.3ae for 10GBase-X SFP+
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
Management
SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Log Management, Port Statistics, ARP, PoE management
Security
User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, SSH configuration, link flapping protection, NAT, DHCP snooping, loop detection
Switch Function
802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation
Unicast / Multicast
Static Multicast, Multicast Passthrough, GMRP, IGMP-Snooping, PIM-SM, PIM-DM
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Traceroute, Port Loopback, SFP Digital Diagnosis
Routing Technique
VRRP, RIP, OSPF, BGP
Time Management
NTP
Interface
Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption
Gigabit PoE:10/100/1000Base-T (X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 2 of PoE power supply are positive, while Pin 3 and 6 are negative
Gigabit SFP: 100/1000Base-X self-adaptive SFP slot
10Gigabit SFP+: 1000/10GBase-X self-adaptive SFP+ slot
Combo port: 10/100/1000Base-T(X) RJ45 or 1000Base-X SFP slot
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2 5-pin 5.08mm pitch terminal blocks(relay occupies 2 pins), support 2 relay alarm outputs, current loading capacity is 5A/30VDC or 10A/125VAC
Indicator
Run indicator, interface indicator power indicator, alarm indicator, PoE indicator
Switch Property
Transmission mode: store and forward
MAC address: 16K
Packet buffer size: 12Mbit
Backplane bandwidth: 128G
Power Supply
- ICS5428-16GT8GC4XS-2P220
Input voltage: 220VAC (100~240VAC/DC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 5A
Access terminal: single-phase socket with rocker switch
- ICS5428-16GT8GC4XS-2P48
Input voltage: 48VDC (36~72VDC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 3A
Connection protection: anti-reverse connection
Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
- ICS5428-16GT8GC4XS-2P24
Input voltage: 24VDC (18~72VDC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 3A
Connection protection: anti-reverse connection
Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
- ICS5428-16GP8GC4XS-2P48
Input voltage: 48VDC
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 3A
Connection protection: anti-reverse connection
Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
Power Consumption
No-load: 10.5W@220VAC
Full-load: 25.3W@220VAC
PoE device with POE load, the maximum power is 240W
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP30 protection, metal
Installation: 19-inch 1U rack mounting
Weight: 3940g
Dimension (W x H x D): 440.4mm×44mm×304.8mm
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ± 8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3
Power supply: ±2kV
Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
