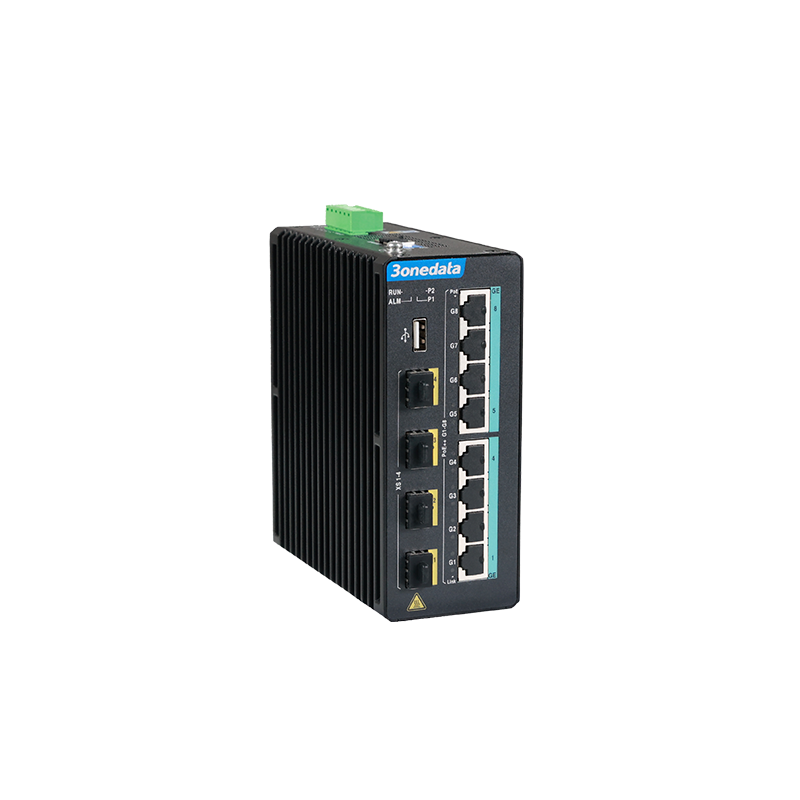

ICS6400BT-8GP4XS-2LV
8*10/100/1000Base-T(X) PoE (360W) RJ45 + 4*1G/2.5G/10G SFP+, dual power supply: 48VDC (44~57VDC)
DIN-Rail Montajı 12 Port Gigabit/10 Gigabit Layer 3 Endüstriyel Ethernet Switch
- 8 adet Gigabit PoE copper port, 4 adet 10 Gigabit SFP+ slot ve 1 adet USB arayüz desteği
- Ring patented technology kullanımı; single ring, coupling ring, chain, Dual-homing ring network function ve ağ arızasında < 50 ms otomatik recovery time desteği
- PoE güç beslemesi desteği; tek bir PoE port için maksimum 90 W, tüm cihaz için toplam 360 W çıkış gücü
- 2×48 VDC (44~57 VDC) dual power redundancy ve anti-reverse connection desteği
- -40~75 ℃ geniş çalışma sıcaklık aralığı desteği
Ethernet üzerinden bağlı cihazlara güç sağlayarak ek kablo bağlantısı ihtiyacını azaltır. Bu ürün; Gigabit PoE copper portlar ve 10 Gigabit SFP+ slotlar sunar, farklı uygulama senaryolarının gereksinimlerini karşılamak için DIN-Rail montaj tasarımına sahiptir.
Ağ yönetim sistemi; Static Routing, RIP, VRRP, NAT, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS, DHCP Server, DHCP Client, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring gibi çok sayıda network protokolü ve endüstri standartları desteği sunar. Port konfigürasyonu, port istatistikleri, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading gibi kapsamlı yönetim işlevlerine sahiptir ve CLI, HTTP, HTTPS, Telnet, SSH gibi farklı erişim yöntemlerini destekler. Kullanıcı dostu arayüz tasarımı ve kolay, pratik kullanım sayesinde ağ yönetim sistemi güçlü bir kullanıcı deneyimi sağlar.
Giriş güç beslemesi iki bağımsız güç devresinden oluşur; böylece güç kaynaklarından biri arızalansa bile cihazın normal çalışması sağlanır. DIP switch tasarımı, cihazın fabrika ayarlarına geri döndürülmesini ve yeniden başlatılmasını sağlar. Güç beslemesinde veya portta link arızası oluştuğunda ALM göstergesi yanar ve alarm verir; aynı anda röleye bağlı alarm cihazı da hızlı saha arıza tespiti için uyarı gönderir. Donanım fanless, düşük güç tüketimli, geniş sıcaklık ve voltaj aralığına sahip olacak şekilde tasarlanmıştır; zorlu EMC gereksinimlerine uygun olduğunu kanıtlayan sıkı endüstriyel standart testlerinden geçmiştir. Akıllı şehirler, güvenlik uygulamaları, park alanları ve elektronik polis sistemleri gibi birçok endüstriyel alanda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| ICS6400BT-8GP4XS-2LV | Layer 3, 8*10/100/1000Base-T(X) PoE (360W) RJ45 + 4*1G/2.5G/10G SFP+, dual power supply: 48VDC (44~57VDC), DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10GbE SFP+
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
Management
SNMP v1/v2 c/v3 centralized management of devices, RMON, port mirroring, LLDP, DHCP, Relay, port speed limit, port isolation, port statistics, file management, online upgrades, log information, Syslog, PoE management
Security
User privilege classification, ACL, SSH/HTTPS protocol authorization, access control, SNMP, RMON, link flap protection, port loop detection, IPDT, IPv6DT, Smart-Link, NAT, port alarm, temperature alarm, power alarm, network load alarm
Switch Function
802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression
Unicast / Multicast
IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM
Redundancy Technology
Ring, MRP, STP/RSTP/MSTP, ERPS
Routing Technique
RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP
Troubleshooting
Ping, Traceroute, Network Cable Diagnosis, DDM
Time Management
NTP
PoE
Maximum power: 90W
PoE power supply pins: 1 and 2 are positive, 3 and 6 are negative, 4 and 5 are positive, 7 and 8 are negative
Interface
Gigabit copper port: 10/100/1000Base-T(X) adaptive or forced mode, RJ45, automatic flow control, full/half duplex mode adaptive, MDI/MDI-X automatic detection; A single port supports a maximum of 90W PoE power supply output. PoE power supply pin 1 and 2 are positive, 3 and 6 are negative, 4 and 5 are positive, and 7 and 8 are negative
10Gigabit SFP+ slot: 1G/2.5G/10G Base-X self-adaption or forced mode, SFP+ slot
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal blocks, alarm occupies 2-pin, supports 1 relay alarm output, current load capacity is 5A@30VDC or 10A@125VAC or 5A@250VDC
USB port: Type-A USB 2.0 Female (reserved)
Indicator
Power indicator, running indicator, alarm indicator, interface indicator, PoE indicator
Switch Property
Transmission mode: store and forward
MAC address: 16K
Cache: 12Mbit
Backplane bandwidth: 128Gbps
Switch delay: <10μs
Power Supply
Power input: 2 48VDC (44~57VDC), dual power supply redundancy, support anti-reverse connection
Connection method: adopt 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Power Consumption
No-load at normal temperature: 6.72W@48VDC
Full-load at normal temperature: 352.3W@48VDC (with PoE)
No-load at high temperature: 9.22W@48VDC
Full-load at high temperature: 357.6W@48VDC (with PoE)
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation)
Mechanical Structure
Housing: IP30 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 62mm×150mm×135mm
Weight: 1.471kg
Industrial Standard
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Ethernet interface: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode ±6kV, differential mode ±2kV
Ethernet port: common mode ±6kV, differential mode ±2kV
Relay: common mode ±6kV, differential mode ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-31
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
