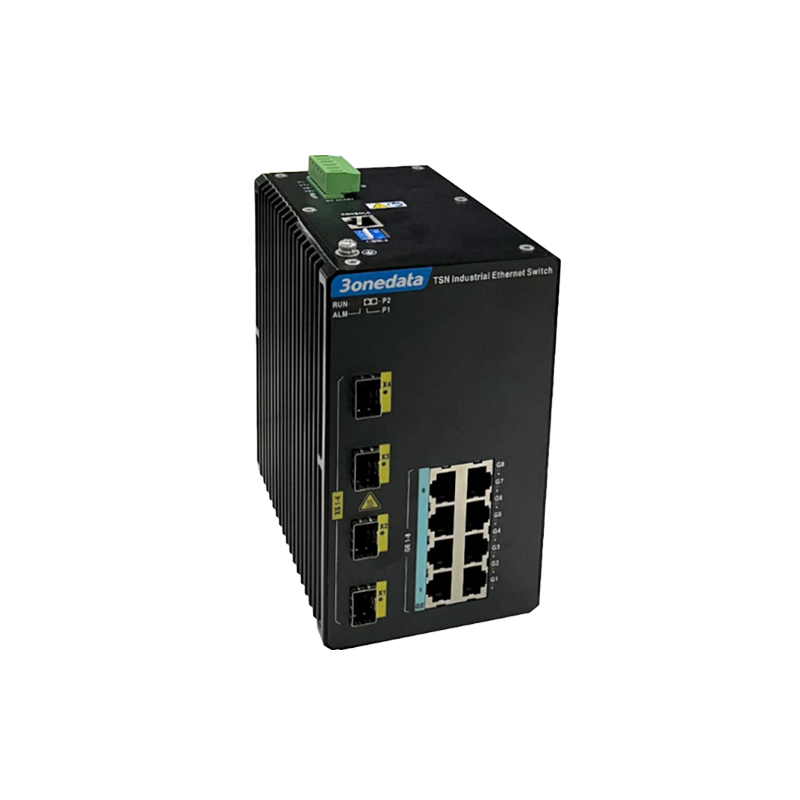

ICS6400TSN-12GT4XS-2LV
12*10/100/1000Base-T(X) (RJ45) + 4*1G/2.5G/10G Base-X SFP+ slot, dual power supply: 24VDC/48VDC (18~54VDC)
DIN-Rail Montajı 16-Port Gigabit/10Gigabit Layer 3 TSN Endüstriyel Ethernet Switch
- 4 x 10G SFP+ slot ve 12 x Gigabit copper port destekler
- Precision Time Protocol (PTP) ile sub-microsecond seviyesinde yüksek hassasiyetli zaman senkronizasyonu sağlar
- TSN (Time Sensitive Networking) protokollerini destekler: IEEE802.1AS, IEEE802.1Qbv, IEEE802.1Qbu, IEEE802.1CB, IEEE802.1Qci, IEEE802.1Qcc — düşük gecikmeli ve yüksek güvenilirlikte deterministik veri iletimi sağlar
- Ring patentli teknoloji; single ring, coupling ring, chain, Dual-homing topolojilerini destekler, ağ hatası otomatik toparlanma süresi < 20 ms
- Dual power redundancy, giriş voltajı 24VDC/48VDC (18~54VDC)
- -40~75°C geniş çalışma sıcaklık aralığı
ICS6400TSN-12GT4XS-2LV, 16 port Gigabit/10Gigabit Layer 3 TSN industrial Ethernet switch modelidir. 10G SFP+ slot ve Gigabit copper port sunar; auto-negotiation ile hız ve duplex ayarı otomatik yapılır. DIN-Rail mounting destekler. Cihaz, IEEE802.1’in TSN (Time Sensitive Networking) standartlarını destekler: 802.1AS, 802.1Qbv, 802.1Qbu, 802.1CB, 802.1Qci, 802.1Qcc. TSN, kritik veriler için deterministik, düşük gecikmeli ve yüksek güvenilirlikte Ethernet iletişimi sağlar.
Network management system; IPv6, PTP, TSN, RIP, OSPF, PIM, VRRP, ISIS, NAT, Ring, STP/RSTP/MSTP, MRP, ERPS, VLAN, IGMP/MLD, DHCP Server/Relay, LLDP, LACP, Port Mirroring gibi geniş protokol desteğine sahiptir. SNMP merkezi yönetim, port statistics, storm suppression, network diagnosis ve online upgrade desteklenir. CLI, HTTP/HTTPS, Telnet, SSH, Netconf üzerinden yönetilebilir. Cihaz iki bağımsız DC power supply devresi ile güçlendirilmiştir. DIP switch, factory reset fonksiyonunu destekler. Power veya port hatalarında ALM alarm verir. Donanım fanless yapıdadır, düşük güç tüketir, geniş sıcaklık aralığına uygundur ve ağır EMC koşulları için test edilmiştir. Raylı sistemler, akıllı şehirler, yeni enerji uygulamaları, akıllı madencilik ve akıllı üretim gibi endüstriyel alanlarda yaygın olarak kullanılır.
| Model | Açıklama |
|---|---|
| ICS6400TSN-12GT4XS-2LV | 12*10/100/1000Base-T(X) (RJ45) + 4*1G/2.5G/10G Base-X SFP+ slot, dual power supply: 24VDC/48VDC (18~54VDC), DIN-rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10GBase-X
IEEE 802.1AS for TSN
IEEE 802.1Qbv
IEEE 802.1Qbu
IEEE 802.1CB
IEEE 802.1Qci
IEEE 802.1Qcc
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
TSN
PTP precise clock synchronization, frame preemption, TAS, Netconf+YANG configuration
Management
SNMP v1/v2c/v3 centralized managed equipment, Port Mirroring, LLDP, DHCP Server, DHCP Relay, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server
Security
User privilege classification, SSH/HTTPS protocol authorization, link flap protection, port loop detection, IPDT, IPv6DT, Smart-Link, NAT, port alarm and power alarm
Switch Function
802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression
Unicast / Multicast
IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM
Redundancy Technology
Ring, MRP, STP/RSTP/MSTP, ERPS
Routing Technique
RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP
Troubleshooting
Ping, Traceroute, Network Cable Diagnosis, DDMI
Time Management
NTP Client, Time Zone Configuration, PTP
Interface
Gigabit copper port: 10/100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotunning
10Gigabit SFP+: 1G/2.5G/10G Base-X self-adaption or forced mode, SFP+ slot
Console port: CLI command line management port(RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal blocks (relay occupies 2 pins), support 1 relay alarm output, the current load capacity is 1A@30VDC or 0 3A@125VAC
Indicator
Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator
Switch Property
Transmission mode: store and forward
MAC address: 32K
Buffer: 32Mbit
Backplane bandwidth: 90G
Switch delay: <10μs
Power Supply
24VDC/48VDC (18~54VDC), dual power supply redundancy
Adopt 6-pin 5.08mm pitch terminal blocks. The power supply occupies 4 pins and supports anti-reverse connection
Power Consumption
No-load: 17.3W@48VDC
Full-load: 26.2W@48VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 79mm×150mm×135mm
Weight: 1627g
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Contact discharge: ±6kV
Air discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Copper port: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Copper port: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF
320000 hours
Authentication
CE, FCC, RoHS
