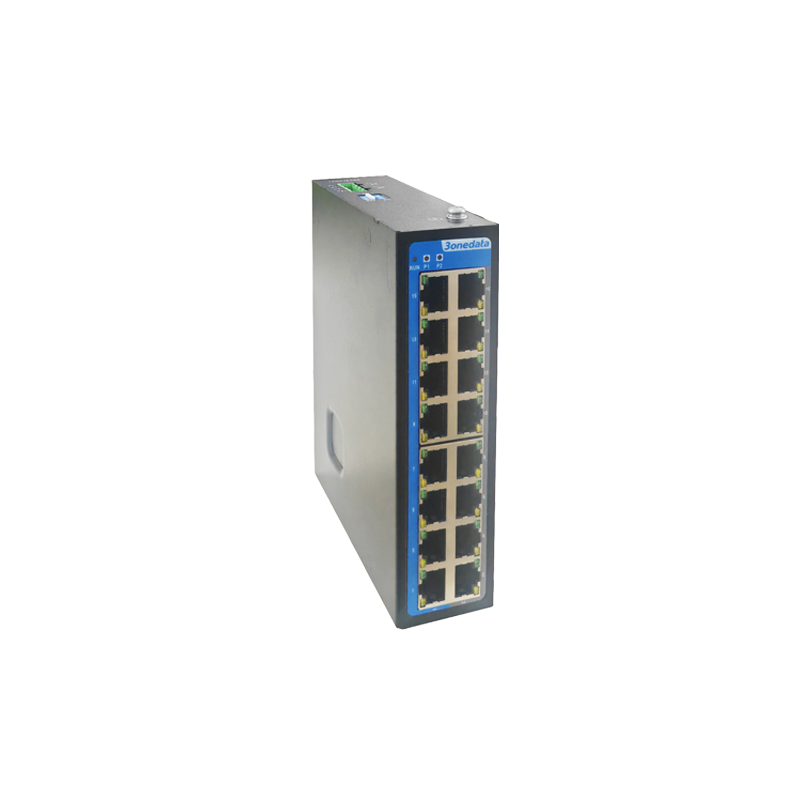

IES2016-16T-2LV
16-Port 100M Unmanaged Industrial Ethernet Switch
- 16 adet 100M copper port desteği
- Dual power supply redundancy, non-polarity connection ve 5A overcurrent protection
- Input voltage: 12/24/48VDC (9~60VDC)
- -40~75℃ geniş çalışma sıcaklık aralığı desteği
IES2016-16T-2LV, 16 port 100M unmanaged industrial Ethernet switch’tir. Bu ürün, 100M copper port sunar ve 12/24/48VDC (9~60VDC) dual power supply girişini destekler.
DIN-Rail veya Wall mounting yapısı sayesinde farklı kullanım senaryolarının gereksinimlerini karşılayabilir. DIP switch üzerinden flow control ve storm suppression fonksiyonları gerçekleştirilebilir. Donanım yapısı fanless ve düşük güç tüketimlidir; ayrıca zorlu endüstriyel ortamlarda EMC gereksinimlerini karşılayacak şekilde kapsamlı testlerden geçmiştir.
Bu sayede cihaz, rail transit, smart city, safe city, new energy, intelligent manufacturing ve benzeri birçok endüstriyel alanda geniş bir kullanım yelpazesi sunar.
| Model | Açıklama |
|---|---|
| IES2016-16T-2LV | Unmanaged Industrial Switch, 16-port 10/100Base-T(X), RJ45 , dual power supply redundancy, 12/24/48VDC, non-polarity, DIN-Rail or wall mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow Control
Interface
Copper port: 10/100Base-T(X), RJ45, Full/half Duplex Mode, MDI/MDI-X Autotunning
Indicator
Power indicator, running indicator, interface Link/Act indicator, interface Speed indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Backplane bandwidth: 3.2Gbps
Switch time delay: <10μs
Power Supply
Voltage range: 12/24/48VDC (9~60VDC)
Connection mode: 4-pin 5.08mm pitch terminal blocks
Power supply quantity: dual power supply redundancy backup
Connection protection: non-polarity
Overcurrent protection: 5A
Power Consumption
No-load: 0.6W@12VDC
Full-load: 2.76W@12VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation)
Mechanical Structure
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 40.6mm×150mm×120mm
Weight: 0.649kg
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
Power supply: ±4kV
Ethernet interface: ±2kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode ±2kV, differential mode ±1kV
Ethernet port: common mode ±4kV, differential mode ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
