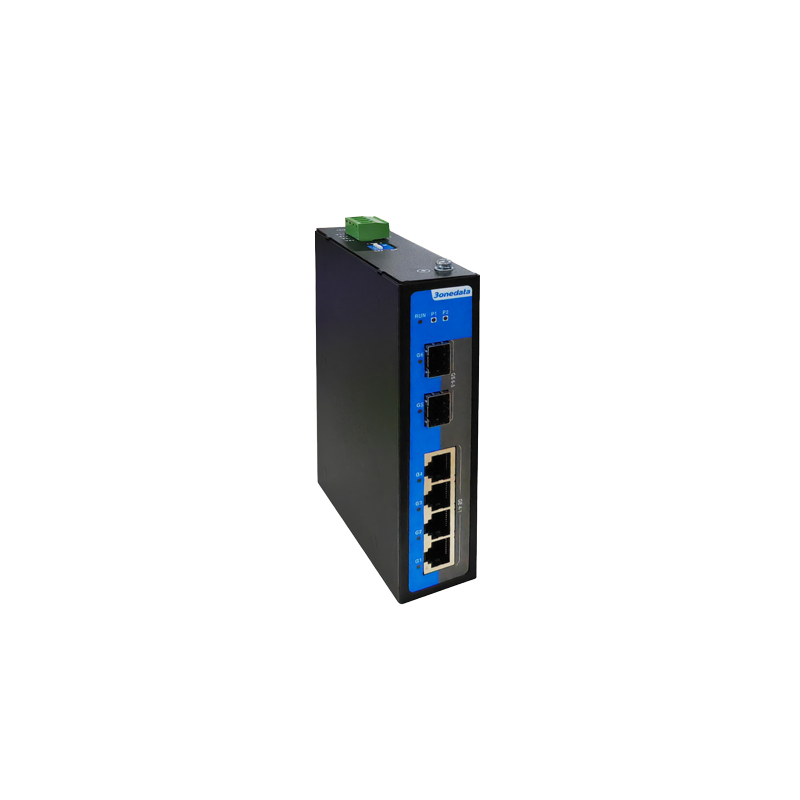

IES2300SL-4GT2GS-2LV
4*10/100/1000Base-T(X) RJ45 + 2*1000M SFP, dual power supply 9~60VDC
IES2300SL Fiber-Port Serisi
- 2 x Gigabit SFP slotu ve 4 x Gigabit bakır port desteği
- 2 x Gigabit SFP slotu ve 8/16 x Gigabit bakır port desteği (Opsiyonel PoE)
- PoE modellerde maksimum güç tüketimi 240W’tır
- Çift güç girişli yedeklilik desteği
- PoE olmayan modeller için giriş voltajı: 12~60VDC
- PoE modeller için giriş voltajı: 44~57VDC
- -40~75°C geniş çalışma sıcaklık aralığı desteği
IES2300SL Fiber-Port serisi, 6/10/18 port Gigabit Layer 2 unmanaged industrial Ethernet switch modellerinden oluşur ve opsiyonel PoE desteği sunar. PoE güç çıkışı IEEE802.3af/at standartlarına uygundur. Seri; Gigabit SFP slot, Gigabit copper port ve Gigabit PoE copper port seçeneklerini destekler. DIN-Rail veya wall mounting ile kurulabilir ve farklı uygulama senaryolarına uyum sağlar.
Input power supply yapısı iki bağımsız devreden oluşur; güç kaynaklarından biri arızalansa bile cihaz normal şekilde çalışmaya devam eder. DIP switch üzerinden cihaz reboot işlemi yapılabilir. Donanım fanless yapıdadır, düşük güç tüketir, geniş sıcaklık ve geniş voltaj aralığını destekler. Zorlu EMC gereksinimlerine uygun olduğunu gösteren endüstriyel testlerden geçmiştir. Akıllı şehir uygulamaları, güvenli şehir çözümleri, akıllı üretim ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IES2300SL-4GT2GS-2LV | Unmanaged, 4*10/100/1000Base-T(X) RJ45 + 2*1000M SFP, dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2300SL-8GT2GS-2LV | Unmanaged, 8*10/100/1000Base-T(X) RJ45 + 2*1000M SFP, dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2300SL-16GT2GS-2LV | Unmanaged, 16*10/100/1000Base-T(X) RJ45 + 2*1000M SFP, dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2300SL-8GP2GS-2LV | Unmanaged, 8*10/100/1000Base-T(X) PoE RJ45 + 2*1000M SFP, dual power supply 44~57VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2300SL-16GP2GS-2LV | Unmanaged, 16*10/100/1000Base-T(X) PoE RJ45 + 2*1000M SFP, dual power supply 44~57VDC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
PoE (optional)
The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface
Gigabit Copper Port: 10/100/1000Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE
Gigabit SFP: 1000Base-X SFP slot
Indicator
Running Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator (PoE device)
Switch Property
IES2300SL-4GT2GS-2LV
Transmission mode: store and forward
MAC address: 2K
Backplane bandwidth: 16Gbps
Switch time delay: <10μs
IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV
Transmission mode: store and forward
MAC address: 4K
Cache: 2.5Mbit
Backplane bandwidth: 20Gbps
Switch time delay: <10μs
IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV
Transmission mode: store and forward
MAC address: 8K
Cache: 4.1Mbit
Backplane bandwidth: 52Gbps
Switch time delay: <10μs
Power Supply
IES2300SL-4GT2GS-2LV, IES2300SL-8GT2GS-2LV, IES2300SL-16GT2GS-2LV
Power supply input: 12~60VDC, dual power supply redundancy
Connection mode: adopt 4-pin 5.08mm pitch terminal blocks
Connection protection: support anti-reverse connection
IES2300SL-8GP2GS-2LV, IES2300SL-16GP2GS-2LV
Power supply input: 44~57VDC, dual power supply redundancy
Connection mode: adopt 4-pin 5.08mm pitch terminal blocks
Connection protection: support anti-reverse connection
Power Consumption
IES2300SL-4GT2GS-2LV
No-load: 0.8W@48VDC
Full-load: 3.6W@48VDC
IES2300SL-8GP2GS-2LV
No-load: 2.43W@48VDC
Full-load (PoE): 229.4W@48VDC
IES2300SL-16GP2GS-2LV
No-load: 5.32W@48VDC
Full-load (without PoE): 12.96W@48VDC
Full-load (with PoE): 238W@48VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation)
Mechanical Structure
IES2300SL-4GT2GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 35mm×150mm×120mm
Weight: 562g
IES2300SL-8GT2GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 40.6mm×150mm×120mm
IES2300SL-8GP2GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 40.6mm×150mm×120mm
Weight: 639g
IES2300SL-16GT2GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 65mm×150mm×120mm
IES2300SL-16GP2GS-2LV
Housing: IP30 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 65mm×150mm×120mm
Weight: 947g
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
IES2300SL-4GT2GS-2LV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode ±2kV, differential mode ±1kV
Ethernet port: common mode ±2kV, differential mode ±1kV
IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV, IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV
IEC 61000-4-5 (Surge), Level 4+
Power supply: common mode ±6kV, differential mode ±2kV
Ethernet port: common mode ±6kV, differential mode ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
