IES618-2F-4D(RS232) (SM,SC)
2*100Base-FX (Single-mode, SC, 20KM) + 6*10/100Base-T(X) (RJ45) + 4*RS-232 (DB9), dual power supply: 12~48VDC
- 8 adet 100M bakır veya Fiber port, 4 seri (RS-232 veya RS-422/485) port
- SW-Ring patentli teknoloji: single ring, coupling ring, chain, Dual-homing, ağ arızasında otomatik kurtarma süresi < 20ms
- 12-48VDC geniş giriş voltajı aralığı
- -40~75℃ çalışma sıcaklık aralığı

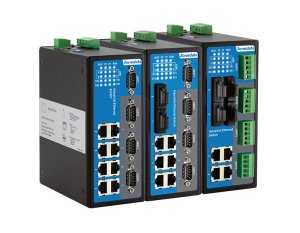

IES618 Serisi, 8 port Layer 2 yönetilebilir endüstriyel ethernet anahtar serisidir. Ürün serisi; 4 adet seri port (RS-232 veya RS-422/485) ve 8 adet 100M/Fiber port konfigürasyonlarını içerir.
Ağ yönetim sistemi; STP/RSTP, 802.1Q VLAN, QoS, IGMP Statik Multicast, Port Trunking, Port Mirroring gibi birçok ağ protokolünü ve endüstriyel standartları destekler. Ayrıca port konfigürasyonu, port istatistikleri, geçiş kontrolü gibi eksiksiz yönetim işlevlerine sahiptir. CLI, WEB, Telnet, SNMP gibi çeşitli erişim yöntemlerini destekler.
Donanım, fansız yapısı, düşük güç tüketimi ve geniş çalışma sıcaklık aralığı ile öne çıkar. EMC için endüstriyel standart testlerden geçmiştir. Ürün; demiryolu taşımacılığı, akıllı şehir, güvenli şehir, yenilenebilir enerji, havacılık, askeri projeler gibi pek çok endüstriyel uygulama alanında yaygın şekilde kullanılmaktadır.
Model | 100M Bakır Port | 100M Fiber Port | Multi-Mode / Single-Mode | SC / ST | RS-232 | RS-485 |
---|---|---|---|---|---|---|

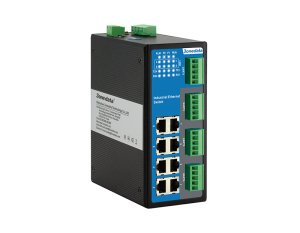

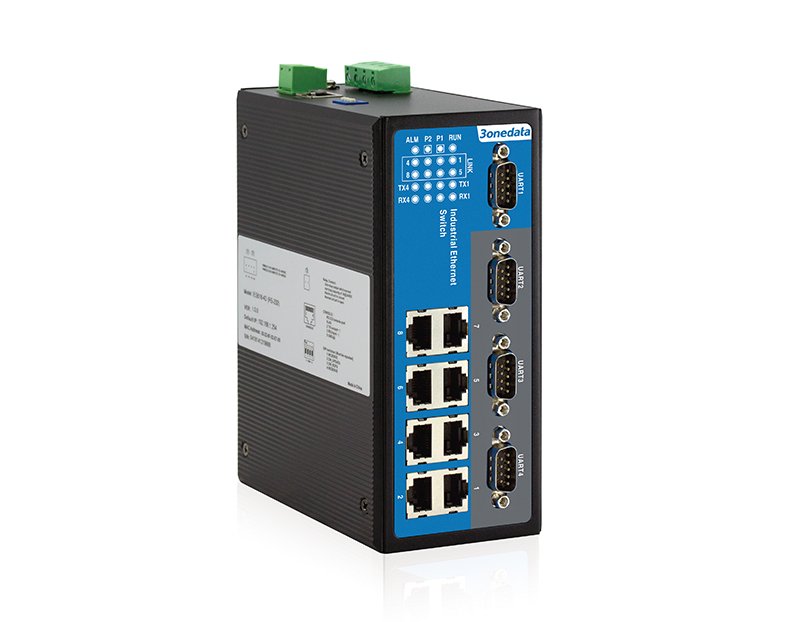

IES618-4D(RS-232) | 8 | 0 | - | - | 4 | 0 |
IES618-2F-4D(RS-232) (MM,SC) | 6 | 2 | Multi-Mode | SC | 4 | 0 |
IES618-2F-4D(RS-232) (MM,ST) | 6 | 2 | Multi-Mode | ST | 4 | 0 |

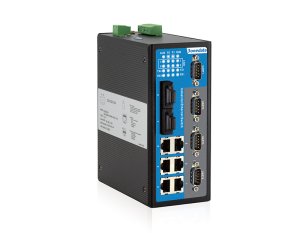

IES618-2F-4D(RS-232) (SM,SC) | 6 | 2 | Single-Mode | SC | 4 | 0 |
IES618-2F-4D(RS-232) (SM,ST) | 6 | 2 | Single-Mode | ST | 4 | 0 |
IES618-4F-4D(RS-232) (MM,SC) | 4 | 4 | Multi-Mode | SC | 4 | 0 |
IES618-4F-4D(RS-232) (MM,ST) | 4 | 4 | Multi-Mode | ST | 4 | 0 |
IES618-4F-4D(RS-232) (SM,SC) | 4 | 4 | Single-Mode | SC | 4 | 0 |
IES618-4F-4D(RS-232) (SM,ST) | 4 | 4 | Single-Mode | ST | 4 | 0 |
IES618-4DI(RS-485) | 8 | 0 | - | - | 0 | 4 |
IES618-2F-4DI(RS-485) (MM,SC) | 6 | 2 | Multi-Mode | SC | 0 | 4 |
IES618-2F-4DI(RS-485) (MM,ST) | 6 | 2 | Multi-Mode | ST | 0 | 4 |
IES618-2F-4DI(RS-485) (SM,SC) | 6 | 2 | Single-Mode | SC | 0 | 4 |
IES618-2F-4DI(RS-485) (SM,ST) | 6 | 2 | Single-Mode | ST | 0 | 4 |
IES618-4F-4DI(RS-485) (MM,SC) | 4 | 4 | Multi-Mode | SC | 0 | 4 |
IES618-4F-4DI(RS-485) (MM,ST) | 4 | 4 | Multi-Mode | ST | 0 | 4 |
IES618-4F-4DI(RS-485) (SM,SC) | 4 | 4 | Single-Mode | SC | 0 | 4 |
IES618-4F-4DI(RS-485) (SM,ST) | 4 | 4 | Single-Mode | ST | 4 | 4 |
Toplam Port Sayısı | : | 8 |
Çalışma Sıcaklığı | : | -40/+75C |
10/100BaseT(X) | : | 6 |
100BaseFX SFP | : | 2 |
Seri Port | : | RS232 |
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS
|
Management |
Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, File Management, Port Statistics
|
Security |
Classification of User Permissions, Relay Alarm (Port Alarm and Power Supply Alarm)
|
Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
Unicast / Multicast
|
Static Multicast |
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
Serial Port Server Function |
4 serial device servers, each one supports 4 TCP or UDP session connections; multiple operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
|
Interface |
Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC
|
Serial Port
|
RS-232 signal: TXD, RXD, RTS, CTS, DTR, DSR, GND RS-422 signal: T+, T-, R+, R-, GND RS-485 signal: D+, D-, GND Check bit: None, Even, Odd, Space, Mark Data bit: 5bit, 6bit, 7bit, 8bit Baud rate: 300-115200bps Interface type: DB9 male of RS-232 5-pin terminal blocks of RS-485/422 Load capacity: RS-485/422 supports 32 nodes polling environment (customizable 128 points) Directional control: RS-485 adopts automatic data flow control technology RS-232 interface protection: electrostatic protection 15kV RS-485/422 interface protection: isolation voltage 2kV, electrostatic protection 15kV
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
Switch Property |
Transmission mode: store and forward MAC address: 2K Packet buffer size: 1Mbit Backplane bandwidth: 2G Switch time delay: < 10μs
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks, dual power supply redundancy, nonpolarity, reverse polarity protection support built-in 4.0A overcurrent protection
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%~95%(no condensation)
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 70mm×160mm×130mm
|
Industrial Standard |
EMI: FCC Part 15, CISPR (EN55022) class A EMS: IEC61000-4-2 (ESD), Level 4 IEC61000-4-3(RS), Level 3 IEC61000-4-4 (EFT), Level 4 IEC61000-4-5 (Surge), Level 4 IEC61000-4-6(CS), Level 3 IEC61000-4-8(PFM), Level 5 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IES 60068-2-6 |
Certification |
CE, FCC, RoHS |
