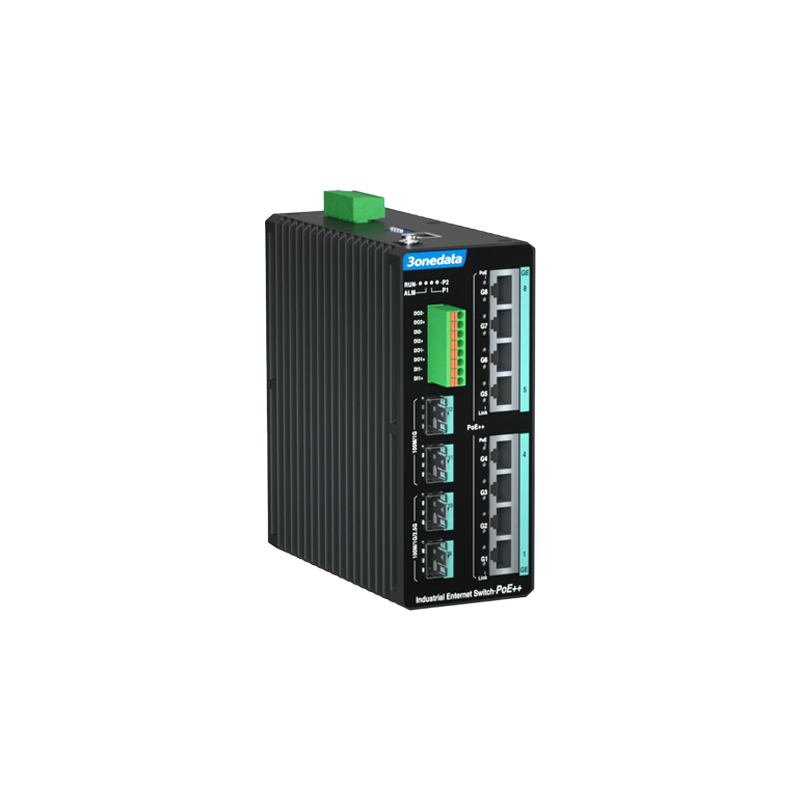

IES6300-8GHP2GS2HS-2P48-360W
Layer 2+, 8*10/100/1000Base-T(X) Hi-PoE RJ45 + 2*100M/1000M SFP + 2*100M/1G/2.5G SFP, dual power supply: 48~55VDC
12 Port Gigabit Layer 2+ Managed Endüstriyel PoE++ Switch
- 2 x 100M/1G/2.5G SFP, 2 x 100M/1G SFP, 8 x Gigabit PoE port, 2 x DI ve 2 x DO
- Tüm PoE port IEEE 802.3af/at/bt standardına uygundur. Tek bir PoE port maksimum 90W power destekler; PoE port toplam power değeri 360W’ye kadar desteklenir
- SW-Ring; single ring, coupling ring, chain, Dual-homing destekler; recovery time < 20 ms
- STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL ve SNMP gibi birçok network protocol ve endüstri standardını destekler
- Dual power redundancy desteği; giriş voltajı: 50–55 VDC
- -40 ~ 75 °C geniş çalışma sıcaklık aralığı
IES6300-8GHP2GS2HS-2P48-360W, 12 portlu Gigabit Layer 2+ managed endüstriyel PoE Ethernet switch modelidir. PoE power supply IEEE 802.3af/at/bt protocol standardına uygundur. Bu ürün; Gigabit PoE copper port, 100M/1G SFP slotu, 100M/1G/2.5G SFP slotu ve I/O port gibi birden fazla interface sunar. DIN-Rail montaj yapısını benimser ve farklı uygulama sahalarının gereksinimlerini karşılar.
Network management sistemi; Ring, STP/RSTP/MSTP, ERPS, DHCP Server/Snooping/Relay, VLAN, QoS, IGMP Snooping, LLDP, MEP, LACP ve Port Mirroring gibi birçok network protocol ve endüstri standardını destekler. Port configuration, NAS, ACL, network diagnosis, online upgrade vb. kapsamlı management fonksiyonlarını destekler. CLI, WEB, Telnet, SSH, SNMP ve diğer access method’lar kullanılabilir. Network management sistemi; kullanıcı dostu arayüz tasarımı ve kolay, pratik kullanım özellikleri ile iyi bir kullanıcı deneyimi sunar.
Power supply yapısı, biri arızalansa bile cihazın normal çalışmasını sağlayabilen iki bağımsız power supply devresinden oluşur. DIP switch tasarımı, cihaz fabrika ayarlarına geri döndürmeyi mümkün kılar. DC power supply veya port tarafında link failure oluştuğunda ALM göstergesi yanar ve alarm üretir; aynı zamanda röleye bağlı alarm cihazı hızlı saha arıza tespiti için alarm sinyali gönderir. Donanım; fansız, düşük power consumption ve geniş sıcaklık aralığı tasarımına sahiptir. Ayrıca sıkı endüstriyel standart testlerinden geçmiş olup zorlu EMC gereksinimlerine sahip endüstriyel sahalarda kullanılabilir. AP coverage, railway transportation, smart city, safe city, new energy, smart grid, intelligent manufacturing ve diğer endüstriyel alanlarda yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| IES6300-8GHP2GS2HS-2P48-360W | Layer 2+, 8*10/100/1000Base-T(X) Hi-PoE RJ45 + 2*100M/1000M SFP + 2*100M/1G/2.5G SFP, dual power supply: 48~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
IEEE 802.3bt for PoE++
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, QoS, PoE, DHCP Server, DHCP Snooping, DHCP Relay, Static MAC Address, LLDP, Storm Suppression, User Password, Login Method, File Management, Log Management, Port Statistics, MEP
Security
User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, IO Alarm, Loop Protection
Switch Function
802.1Q VLAN, Static Aggregation, LACP
Unicast / Multicast
IGMP Snooping, Unicast MAC
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Cable Detection, Port Mirroring
Time Management
NTP, Time Zone Configuration
PoE
The total power of PoE supports 360W and supports the mixed plug-in of devices of IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt standards
PoE supports enabling and disabling port power supply
PoE supports power supply priority. When the power is overloaded, it can power high priority device first
PoE supports delayed power supply to avoid the instant power supply shock when powering on the device
PoE supports detecting the status of power receiving devices automatically. When the power receiving device fails, the power supply port can be closed and reopened to restart the power receiving device and solve the problem of power receiving device crash
Interface
Gigabit PoE port: 10/100/1000Base-T(X) self-adaption, RJ45, Full/Half Duplex, MDI/ MDI-X self-adaption. The single port supports 15.4W PoE output power of IEEE802.3af standard and 30W PoE+ output power of IEEE802.3at standard, power supply pin: 1/2-, 3/6+; 90W PoE++ output power of IEEE802.3bt standard, power supply pin: 1/2-, 3/6+, 4/5-, 7/8+
Gigabit SFP Slot: 100/1000Base-X self-adaption or forced mode, SFP slot
2.5G SFP Slot: 100/1000/2.5G Base-X self-adaption or forced mode, SFP slot
I/O port: Support 2 DI and 2 DO, 8-pin 3.81mm pitch terminal blocks, support dry contact input and relay-type output
Console port: CLI command line management port(RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal blocks (relay occupies 2 pins), support 1 relay alarm output, the current load capacity is 1A@30VDC or 0 3A@125VAC
Indicator
Running indicator, alarm indicator, power supply indicator, interface indicator, PoE indicator, I/O output indicator, I/O input indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 4Mbit
Backplane bandwidth: 30G
Switch delay: <10μs
Power Supply
Power input: 50~ 55VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Power supply quantity: dual power supply redundancy backup
Connection protection: anti-reverse connection
Overcurrent protection: 7.5A
Power Consumption
No-load: ≤ 5.5W@50VDC
Full-load: ≤ 380W@50VDC (with 360W PoE load)
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 62mm×150mm×135mm
Industrial Standard
IEC 6100042 (ESD, electrostatic discharge), Level 3
IEC 6100044 (EFT, electrical fast transient pulses), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
