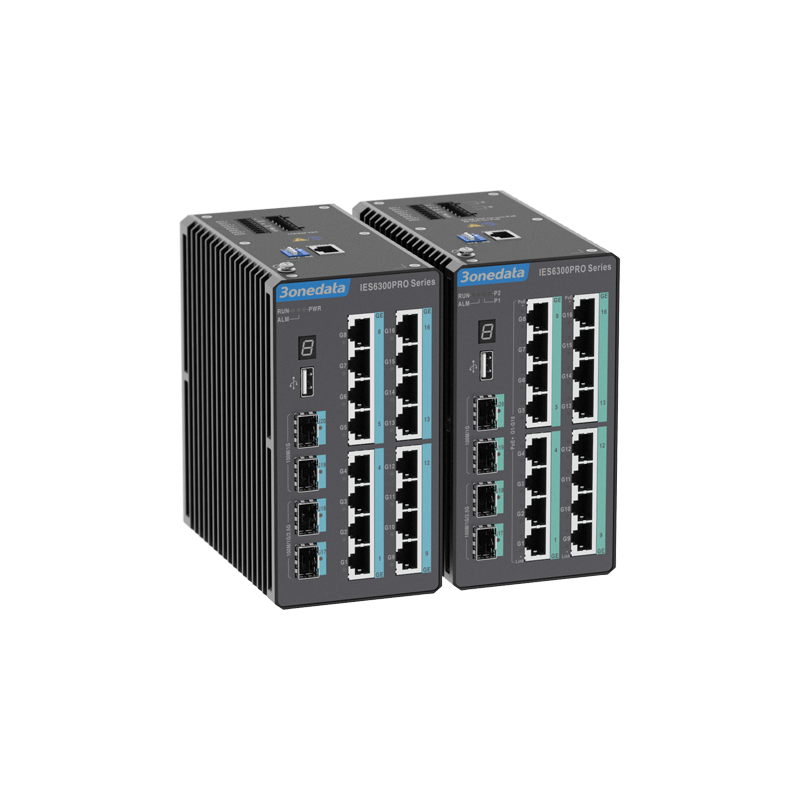

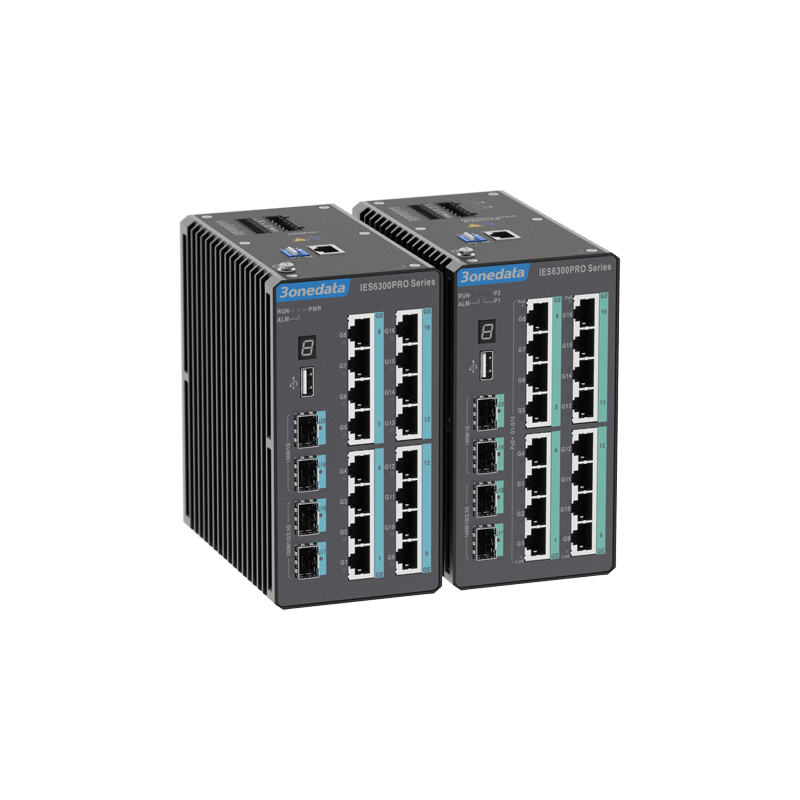

IES6300PRO-16GP2GS2HS-2Di2Do-2LV
16*10/100/1000Base-T(X) PoE RJ45 + 2*100/1000M SFP + 2*100M/1G/2.5G SFP + 2*DI + 2*DO, dual power supply: 48VDC (44VDC~55VDC)
- 8 veya 16 Gigabit copper port (opsiyonel PoE), 2 Gigabit SFP slot, 2 2.5G SFP slot, 2 DI ve 2 DO desteği
- Ring patented technology kullanımı, single ring, coupling ring, chain, Dual-homing, network failure otomatik recovery time < 20ms
- IPv6, PTP, STP/RSTP/MSTP, ERPS, VLAN, QoS, LACP, DHCP, IGMP Snooping, LLDP, ACL, SNMP ve MEP desteği
- 3 opsiyonel power supply desteği: 24/48VDC, 48VDC PoE, 110/220VAC
- -40~75℃ geniş çalışma sıcaklık aralığı
IES6300PRO serisi, 12/20 portlu Gigabit Layer 2 managed endüstriyel Ethernet switch’tir. PoE güç beslemesi IEEE802.3af/at protokol standardına uygundur. Bu seri 6 farklı ürün sunar ve Gigabit copper port, Gigabit PoE copper port, 100M/1G SFP slot, 100M/1G/2.5G SFP slot, I/O port ve USB gibi çeşitli arayüzleri destekler. Farklı uygulama senaryolarının gereksinimlerini karşılamak için DIN-Rail montajını destekler.
Network management system; IPv6, PTP, Ring, STP/RSTP/MSTP, ERPS, DHCP Server/Snooping/Relay, VLAN, QoS, IGMP Snooping, LLDP, Port Trunking ve Port Mirroring gibi çeşitli network protokol ve endüstri standardı desteği sunar. Port Configuration, NAS, ACL, Network Diagnosis, Online Upgrade gibi kapsamlı management fonksiyonlarına sahiptir. CLI, WEB, TELNET, SSH, SNMP ve diğer access metotları desteklenir. Network management system kullanıcı dostu arayüz dizaynı ve kolay, pratik operasyon sayesinde iyi bir kullanıcı deneyimi sağlar.
DC power supply iki bağımsız power supply devresinden oluşur, böylece power supply arızalandığında cihazın normal çalışması sağlanır. DIP switch tasarımı device factory setting recovery işlemini gerçekleştirebilir. DC power supply veya port link failure durumunda ALM indicator yanar ve alarm verir; aynı anda röleye bağlı alarm device hızlı saha arıza tespiti için uyarı gönderir.
Donanım fanless, düşük güç tüketimi ve geniş sıcaklık aralığına sahip olacak şekilde tasarlanmıştır; zorlu EMC gereksinimlerine sahip endüstriyel ortamlara uygun olduğunu kanıtlayan katı endüstriyel standart testlerinden geçmiştir. AP coverage, railway transportation, smart city, safe city, new energy, smart grid, intelligent manufacturing ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IES6300PRO-8GT2GS2HS-2Di2Do-2LV | Layer 2, 8*10/100/1000Base-T(X) RJ45 + 2*100/1000M SFP + 2*100M/1G/2.5G SFP + 2*DI + 2*DO, dual power supply: 24/48VDC (12~55VDC), DIN-Rail mounting, PTP-specific |
| IES6300PRO-8GP2GS2HS-2Di2Do-2LV | Layer 2, 8*10/100/1000Base-T(X) PoE RJ45 + 2*100/1000M SFP + 2*100M/1G/2.5G SFP + 2*DI + 2*DO, dual power supply: 48VDC (44VDC~55VDC), DIN-Rail mounting, PTP-specific |
| IES6300PRO-8GT2GS2HS-2Di2Do-HV | Layer 2, 8*10/100/1000Base-T(X) RJ45 + 2*100/1000M SFP + 2*100M/1G/2.5G SFP + 2*DI + 2*DO, single power supply: 110/220VAC (85~256VAC/DC), DIN-Rail mounting, PTP-specific |
| IES6300PRO-16GT2GS2HS-2Di2Do-2LV | Layer 2, 16*10/100/1000Base-T(X) RJ45 + 2*100/1000M SFP + 2*100M/1G/2.5G SFP + 2*DI + 2*DO, dual power supply: 24/48VDC (12~55VDC), DIN-Rail mounting, PTP-specifc |
| IES6300PRO-16GP2GS2HS-2Di2Do-2LV | Layer 2, 16*10/100/1000Base-T(X) PoE RJ45 + 2*100/1000M SFP + 2*100M/1G/2.5G SFP + 2*DI + 2*DO, dual power supply: 48VDC (44VDC~55VDC), DIN-Rail mounting, PTP-specific |
| IES6300PRO-16GT2GS2HS-2Di2Do-HV | Layer 2, 16*10/100/1000Base-T(X) RJ45 + 2*100/1000M SFP + 2*100M/1G/2.5G SFP + 2*DI + 2*DO, single power supply: 110/220VAC (85~256VAC/DC), DIN-Rail mounting, PTP-specific |
| Toplam Port Sayısı | : | 20 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 16 |
| PoE Port | : | 16 |
| 1000Base SFP | : | 2 |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, QoS, PoE, DHCP Server, DHCP Relay, Static MAC Address, LLDP, LLDP-MED, Storm Suppression, User Password, Login Method, File Management, Log Management, Port Statistics, MEP
Security
User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, IO Alarm, Loop Protection, DHCP Snooping, Temperature Protection
Switch Function
802.1Q VLAN, Static Aggregation, LACP
Unicast / Multicast
IGMP Snooping, Unicast MAC
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Ping6, Cable Detection, Port Mirroring, DDMI
Time Management
NTP client/server, PTP, Time zone configuration
Interface
Gigabit copper port: 10/100/1000Base-T(X) self-adaption, RJ45, full/half duplex, MDI/MDI-X self-adaption
Gigabit PoE port: 10/100/1000Base-T(X) self-adaption, RJ45, Full/Half Duplex, MDI/ MDI-X self-adaption. The single port supports 15.4W PoE output power of IEEE802.3af standard and 30W PoE+ output power of IEEE802.3at standard, power supply pin: 1/2-, 3/6+
Gigabit SFP Slot : 100/1000Base-X self-adaption or forced mode, SFP slot
2.5G SFP Slot: 100/1000/2.5G Base-X self-adaption or forced mode, SFP slot
LED digital tube: support 1 seven-segment LED digital tube, which shows the running status of the device
USB interface: support 1 USB2.0 Type-A(Female), which can be used to download logs, backup configuration files, or upload configuration files
I/O port: Support 2 DI and 2 DO, 8-pin 3.81mm pitch terminal blocks, support dry contact input and relay-type output
Console port: CLI command line management port(RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal blocks (relay occupies 2 pins), support 1 relay alarm output, the current load capacity is 1A@30VDC or 0 3A@125VAC
Indicator
Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Buffer: 4Mbit
Backplane bandwidth: 58G
Switch delay: <10μs
Power Supply
IES6300PRO-8GT2GS2HS-2Di2Do-2LV, IES6300PRO-16GT2GS2HS-2Di2Do-2LV:
Power supply input: 24/48VDC (12~55VDC)
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply on the left side)
Power supply quantity: dual power supply redundancy backup
Connection protection: anti-reverse connection
IES6300PRO-8GP2GS2HS-2Di2Do-2LV, IES6300PRO-16GP2GS2HS-2Di2Do-2LV:
Power supply input: 48VDC (44VDC~55VDC)
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply on the left side)
Power supply quantity: dual power supply redundancy backup
Connection protection: anti-reverse connection
IES6300PRO-8GT2GS2HS-2Di2Do-HV, IES6300PRO-16GT2GS2HS-2Di2Do-HV:
Power supply input: 110/220VAC (85~256VAC/DC)
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply on the left side)
Number of power supply: single power supply
Power Consumption
＜240W (with PD load)
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95%(no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 79mm×150mm×135mm
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Contact discharge: ±6kV
Air discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
DC power supply: ±2kV
Copper port: ±2kV
Relay: ±2kV
IEC 61000-4-5 (Surge), Level 3
DC power supply: differential mode±1kV, common mode±2kV
Copper port: differential mode±1kV, common mode±2kV
Insulation strength: 500VAC, < 10mA
Insulation resistance: ≥20MΩ
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
