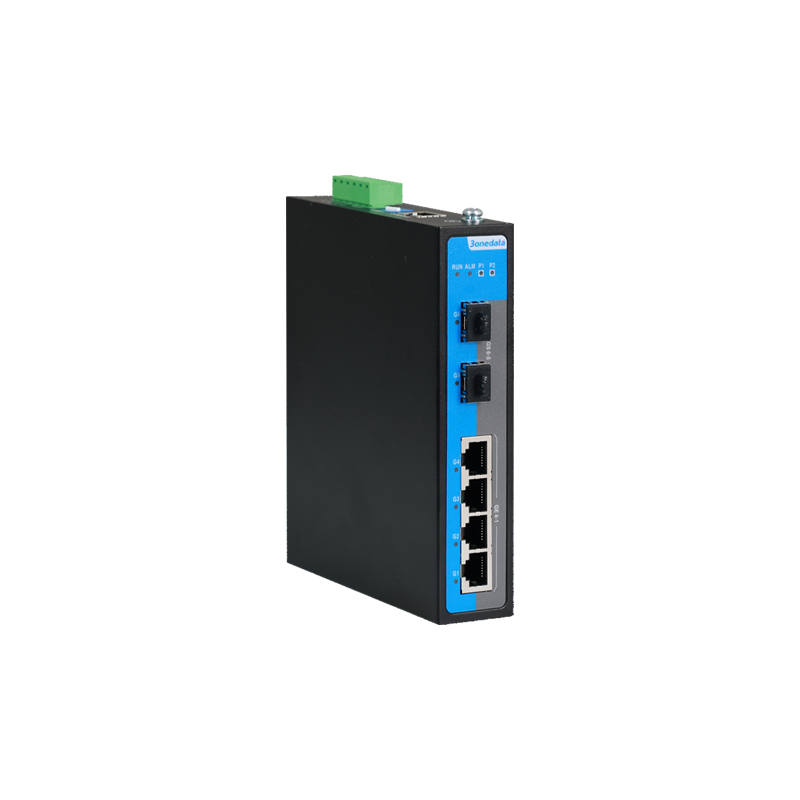

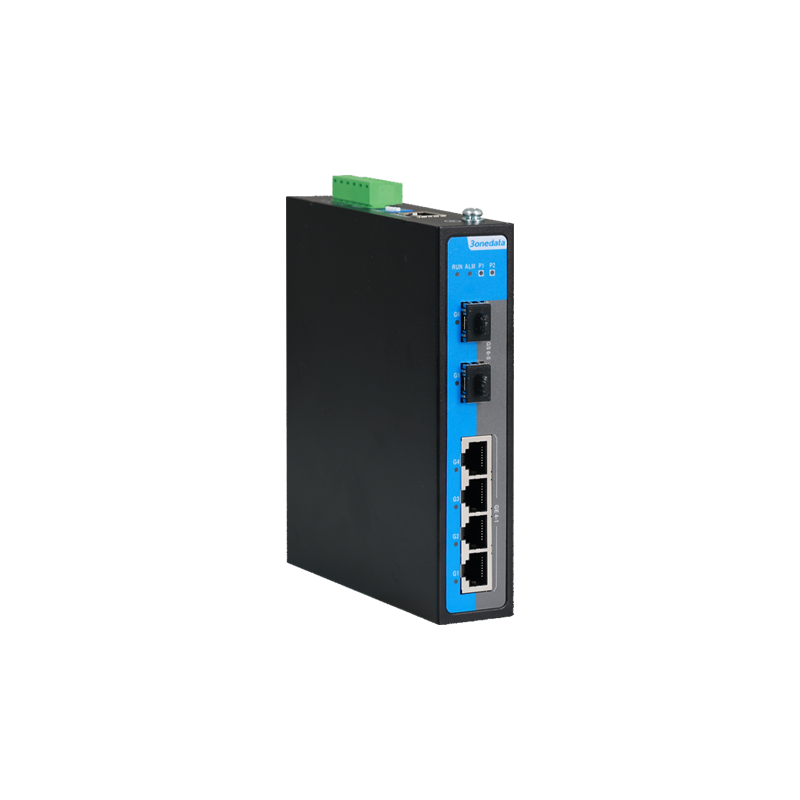

IES6300SL-4GT2GS-2LV
4*10/100/1000Base-T(X) RJ45 + 2*1000Base-X SFP, dual power supply: 12~60VDC
- 2 Gigabit SFP slot ve 4 Gigabit copper port (opsiyonel PoE), 4 Gigabit SFP slot ve 8 Gigabit copper port (opsiyonel PoE) veya 4 Gigabit SFP slot ve 16 Gigabit copper port (opsiyonel PoE) desteği
- Ring patented technology kullanımı, single ring, coupling ring, chain, Dual-homing function desteği
- STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL ve SNMP gibi birden fazla network protokolü ve endüstri standardı desteği
- PoE modellerde 6 port için maksimum güç tüketimi 120W, 12/16 port için 240W
- Dual power redundancy desteği. Non-PoE modellerde giriş voltajı: 12~60VDC, PoE modellerde: 44~57VDC
- -40~75℃ geniş çalışma sıcaklık aralığı desteği
IES6300SL serisi ürünler, opsiyonel PoE desteğine sahip 6/12/20 portlu Gigabit Layer 2 managed endüstriyel Ethernet switch’lerdir. PoE güç beslemesi IEEE802.3af/at protokol standardına uygundur. Bu seri 6 farklı ürün sunar ve Gigabit SFP slot, Gigabit copper port ve Gigabit PoE copper port desteğine sahiptir. Farklı uygulama senaryolarının gereksinimlerini karşılamak için DIN-Rail veya duvar montajını destekler.
IPv4, VLAN, STP/RSTP/MSTP, ERPS, PoE, DHCP, LLDP, IGMP Snooping, QoS, Modbus TCP monitoring, port trunking, port mirroring gibi çeşitli network protokolleri ve endüstri standardı desteği sunar. Port configuration, port statistics, ACL, 802.1X authentication, network diagnosis, rapid configuration, online upgrade gibi kapsamlı management fonksiyonlarına sahiptir. CLI, WEB, Telnet, SNMP, SSH ve diğer erişim metotları desteklenir.
Input power supply iki bağımsız power supply devresinden oluşur, böylece power supply arızalandığında cihazın normal çalışması sağlanır. DIP switch tasarımı device factory setting recovery ve restart işlemini gerçekleştirebilir. Power supply veya port link failure durumunda ALM indicator yanar ve alarm verir; aynı anda röleye bağlı alarm device hızlı saha arıza tespiti için uyarı gönderir.
Donanım fanless, düşük güç tüketimi, geniş sıcaklık ve voltaj aralığına sahip olacak şekilde tasarlanmıştır ve zorlu EMC gereksinimlerine sahip endüstriyel ortamlara uygun olduğunu kanıtlayan katı endüstriyel standart testlerinden geçmiştir. Smart city, safety city, intelligent manufacturing ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IES6300SL-4GT2GS-2LV | Layer 2, Managed, 4*10/100/1000Base-T(X) RJ45 + 2*1000Base-X SFP, dual power supply: 12~60VDC, DIN-Rail, wall mounting, -40~75℃ operating temperature |
| IES6300SL-8GT4GS-2LV | Layer 2, Managed, 8*10/100/1000Base-T(X) RJ45 + 4*1000Base-X SFP, dual power supply: 12~60VDC, DIN-Rail, wall mounting, -40~75℃ operating temperature |
| IES6300SL-4GP2GS-2LV | Layer 2, Managed, 4*10/100/1000Base-T(X) PoE (120W) RJ45 + 2*1000Base-X SFP, dual power supply: 44~57VDC, DIN-Rail, wall mounting, -40~75℃ operating temperature |
| IES6300SL-8GP4GS-2LV | Layer 2, Managed, 8*10/100/1000Base-T(X) PoE (240W) RJ45 + 4*1000Base-X SFP, dual power supply: 44~57VDC, DIN-Rail, wall mounting, -40~75℃ operating temperature |
| IES6300SL-16GT4GS-2LV | Layer 2, Managed, 16*10/100/1000Base-T(X) RJ45 + 4*1000Base-X SFP, dual power supply: 12~60VDC, DIN-Rail, wall mounting, -40~75℃ operating temperature |
| IES6300SL-16GP4GS-2LV | Layer 2, Managed, 16*10/100/1000Base-T(X) PoE (240W) RJ45 + 4*1000Base-X SFP, dual power supply: 44~57VDC, DIN-Rail, wall mounting, -40~75℃ operating temperature |
| Toplam Port Sayısı | : | 6 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 4 |
| 1000Base SFP | : | 2 |
Standard & Protocol
IEEE 802.3 for 10Base-T Ethernet
IEEE 802.3u for 100Base-TX
IEEE 802.3z for 1000Base-X Fiber
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control and Back Pressure
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tag
IEEE802.1p for Class of Service (CoS)
IEEE 802.1X for User Authentication (Radius)
IEEE 802.1AB for Link Layer Discovery Protocol (LLDP)
ITU-T G.8032 for ERPS
IEEE 802.3ad for Link Aggregation Control Protocol (LACP)
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
Management
SNMP v1/v2c/v3, RMON, LLDP, PoE, QoS, DHCP Server, DHCP Snooping, port settings, dynamic/static MAC addresses, MAC/IPv4, storm suppression, user passwords, file management, log management, port statistics, link flapping protection, Modbus TCP monitoring
Security
User Privilege Classification, Port and Power Alarm, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, Email Alarm
Switch Function
802.1Q VLAN, link aggregation, static aggregation, LACP, bandwidth flow control
Unicast / Multicast
Multicast filtering, IGMP Snooping IGMPV1/V2/V3
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Log record, port mirroring, Ping, Traceroute, network cable diagnosis, SFP DDM
Time Management
NTP, Time Zone Configuration
PoE (optional)
The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface
Gigabit Copper Port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE
Gigabit SFP: 1000Base-X SFP slot
Console port: CLI management port (RS-232), RJ45
Alarm port: support 1 relay alarm output, and adopt 6-pin 5.08mm pitch terminal blocks (relay occupies 2 pins)
LED Indicator
Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator
Switch property
IES6300SL-4GT2GS-2LV, IES6300SL-4GP2GS-2LV
Transmission mode: store and forward
MAC address: 8K
Cache: 4.1Mbit
Backplane bandwidth: 20Gbps
Switch time delay: <10μs
IES6300SL-8GT4GS-2LV, IES6300SL-8GP4GS-2LV, IES6300SL-16GT4GS-2LV, IES6300SL-16GP4GS-2LV
Transmission mode: store and forward
MAC address: 8K
Cache: 4.1Mbit
Backplane bandwidth: 56Gbps
Switch time delay: <10μs
Power Supply
IES6300SL-4GT2GS-2LV, IES6300SL-8GT4GS-2LV, IES6300SL-16GT4GS-2LV
Power supply input: 12~60VDC, dual power supply redundancy
Connection method: adopt 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Connection protection: support anti-reverse connection
IES6300SL-4GP2GS-2LV, IES6300SL-8GP4GS-2LV, IES6300SL-16GP4GS-2LV
Power supply input: 44~57VDC, dual power supply redundancy
Connection method: adopt 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Connection protection: support anti-reverse connection
Power Consumption
IES6300SL-4GT2GS-2LV
No-load: 3.6W@48VDC
Full-load: 5.7W@48VDC (high temperature)
IES6300SL-8GT4GS-2LV
No-load: 5.7W@48VDC
Full-load: 10.1W@48VDC (high temperature)
IES6300SL-4GP2GS-2LV
No-load: 3.3W@48VDC
Full-load: 113.3W@48VDC
IES6300SL-8GP4GS-2LV
No-load: 4.6W@48VDC
Full-load: 229.3W@48VDC
IES6300SL-16GP4GS-2LV
No-load: 7.5W@48VDC
Full-load(without PoE): 16.1W@48VDC
Full-load(PoE): 248.1W@48VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation)
Mechanical Structure
IES6300SL-4GT2GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 35mm×150mm×120mm
Weight: 0.631kg
IES6300SL-8GT4GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 40.6mm×150mm×120mm
Weight: 0.678kg
IES6300SL-4GP2GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 35mm×150mm×120mm
Weight: 0.647kg
IES6300SL-8GP4GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 40.6mm×150mm×120mm
Weight: 0.694kg
IES6300SL-16GT4GS-2LV
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 65mm×150mm×120mm
IES6300SL-16GP4GS-2LV
Housing: IP30 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 65mm×150mm×120mm
Weight: 1.088kg
Industrial Standard
EMI: FCC Part15 CISPR (EN55032) Class A
FCC Part15 CISPR22 (EN55022) Class A
IEC/EN 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC/EN 61000-4-3 (RF Field Strength Susceptibility)
80 MHz to 1 GHz: 10 V/m
IEC/EN 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
Relay: ±2kV
IEC/EN 61000-4-5 (Surge), Level 4+
Power supply: common mode ±6kV, differential mode ±2kV
Ethernet port: common mode ±6kV, differential mode ±2kV
Relay: common mode ±2kV, differential mode ±1kV
IEC/EN 61000-4-6 (Conducted Susceptibility):10KHz
IEC/EN 61000-4-8 Power Frequency Magnetic Field Susceptibility
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-31/ IEC 60068-2-32
Vibration: IEC 60068-2-64/ IEC 60068-2-6
Authentication
CE, UL, FCC, RoHS
