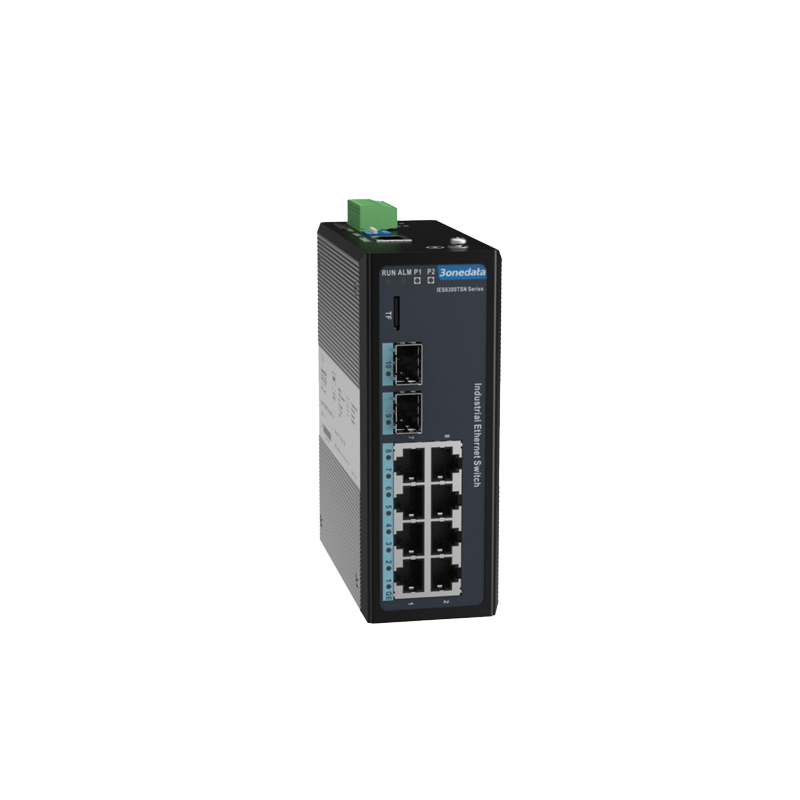

IES6300TSN-8GT2GS-2LV
8*10/100/1000Base-T(X) (RJ45) + 2*1000Base-X SFP slot, dual power supply: 9~60VDC
IES6300TSN Serisi - 10 Port Gigabit Layer 2 Managed TSN Endüstriyel Ethernet Switch
- 8 x Gigabit copper port ve 2 x Gigabit SFP slot destekler
- Precision Time Protocol (PTP) ile yüksek hassasiyetli zaman senkronizasyonu için sub-microsecond doğruluk sağlar
- TSN (Time Sensitive Networking) protokollerini destekler: IEEE802.1Qbv, IEEE802.1Qav, IEEE802.1AS. Kritik veriler için düşük gecikmeli ve yüksek güvenilirlikte deterministik iletim sunar
- SW-Ring patentli teknoloji; single ring, coupling ring, chain, Dual-homing topolojilerini destekler ve ağ arızası toparlanma süresi < 20 ms
- Dual power supply, giriş voltajı 9~60VDC
- -40~75°C geniş çalışma sıcaklık aralığı
IES6300TSN-8GT2GS-2LV, 10 port Gigabit Layer 2 managed industrial Ethernet switch’tir. Ürün; Gigabit copper port ve Gigabit SFP slot sunar ve DIN-Rail mounting ile farklı kurulum sahalarına uyum sağlar.
Network management system; PTP, TSN, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS, IGMP Snooping, LLDP, DHCP Server, DHCP Snooping, Port Trunking, Port Mirroring gibi birçok protokolü ve endüstri standardını destekler. Ayrıca port configuration, port isolation, port statistics, access control, network diagnosis, rapid configuration ve online upgrade gibi kapsamlı yönetim fonksiyonları sunar. CLI, WEB, Telnet, SSH ve SNMP erişim yöntemleri desteklenir ve kullanıcı dostu arayüz tasarımı ile kolay kullanım sağlar.
DIP switch, cihazın factory setting recovery fonksiyonunu destekler. Power supply yapısı iki bağımsız güç devresinden oluşur; bunlardan biri arızalansa bile cihaz çalışmaya devam eder. Power, port veya diğer yapılandırılabilir olaylarda hata oluştuğunda ALM göstergesi yanar ve röleye bağlı alarm cihazı uyarı üretir, böylece sahada hızlı troubleshooting yapılabilir. Donanım fanless yapıdadır, düşük güç tüketir, geniş sıcaklık ve voltaj aralığını destekler ve zorlu EMC koşullarına uygun olduğunu gösteren sıkı endüstriyel testlerden geçmiştir.
Smart city, rail transit, safety city, new energy, intelligent manufacturing gibi birçok endüstriyel uygulamada güvenle kullanılabilir.
| Model | Açıklama |
|---|---|
| IES6300TSN-8GT2GS-2LV | 8*10/100/1000Base-T(X) (RJ45) + 2*1000Base-X SFP slot, dual power supply: 9~60VDC, DIN-rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 1588 for PTP
IEEE 802.1AS for gPTP
IEEE802.1Qbv, IEEE 802.1Qav for TSN
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, DHCP Server, Port Mirroring (TX, RX, TX & RX), QoS, LLDP, File Management, Log Management, Syslog Server, Port Statistics
Security
Classification of User Permissions, Access Control, Port Alarm, Temperature Alarm, Power Supply Alarm, Network Load Alarm, Error Frame Alarm, Discarded Frame Alarm, Trap Alarm, Relay Alarm, E-mail Alarm, SSH Configuration, Telnet Configuration, HTTP Configuration, HTTPS Configuration, DHCP-Snooping, Loop Detection
Switch Function
802.1Q VLAN, Port Static/Dynamic Aggregation, Bandwidth Management, Flow Control, Port Rate Limit, Port Isolation
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Traceroute, Cable Diagnosis, SFP DDM
Time Management
NTP server, NTP client, PTP, TSN
Interface
Gigabit copper port: self-adaptive 10/100/1000Base-T(X) RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
Gigabit SFP: 1000Base-X SFP slot
TF card slot (reserved): 1 TF(Micro SD) card slot, reserved
Alarm port: 1 relay alarm output, 6-pin 5.08mm pitch terminal blocks, relay occupies the right 2 pins, current carrying capacity is 1A@30VDC or 0.3A@125VAC
Console port: CLI command line management port (RS-232), RJ45
Indicator
RUN indicator, ALM indicator, power supply indicator, interface indicator
Switch Property
Transmission mode: store and forward
MAC address: 16K
Buffer: 2Mbit
Backplane bandwidth: 20G
Switch time delay: <10μs
Power Supply
9~60VDC, support dual power supply redundancy, non-polarity, using 6-pin 5.08mm pitch terminals (the power supply occupies the left 4 pins)
Power Consumption
No-load: 4.3W@48VDC (normal temperature), 4.9W@48VDC (high temperature)
Full-load: 6.8W@48VDC (normal temperature), 7.8W@48VDC (high temperature)
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: 0.6kg
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ± 8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3
Power supply: ±2kV
Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
