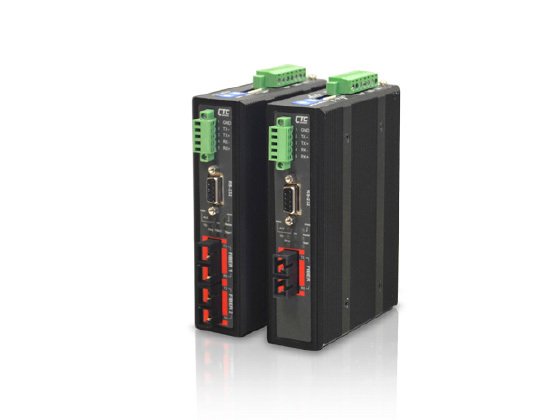

IFC-FDC-E-SC002
RS-232/422/485 (Daisy Chain) Fiber Converter
Bu dönüştürücüler, RS-232 (3 telli), RS-485 (2 telli, yarım dupleks) veya RS-422/485 (4 telli, tam çift yönlü) bağlantı için arayüz modları seçebilir ve üç yönlü iletişime ilave olarak ikinci bir bağımsız RS-232 iletişim kanalı özelliği sunar. Sahip olduğu terminal bloğu ile bir alarm röle ve iki yedek DC güç girişi sunar. IFC Serisi konvertörler genişletilmiş -40°/+75°C çalışma sıcaklık aralığı versiyonlarına da sahiptir. Tüm bu özel olarak tasarlanmış özelliklere sahip IFC Serisi, endüstriyel otomasyon uygulamalarınızın zorlu ortamlarda bile sorunsuz ve sürekli çalışmasını sağlamak için güvenilir ve ideal çözümlerdir. Ürün, RS485/422/232 ağlarına uygulanabilen MODBUS gibi şeffaf protokol desteklidir.
NOT : 1 fiber portlu kompakt model için IFC-Serial Serisi'ni inceleyiniz.
- Supports 2 fiber link (IFC-FDC)
- Supports dual channel communication, including Triple-Way communication, and Two-Way communication
- Extend serial transmission distance up to 2km, 30km, 60km
- Supports several topology , cable redundancy, ring redundancy, daisy chain, point to point
- Redundant dual power inputs (12/24/48VDC)
- Protocol transparent, suitable for all serial (RS485/422/232) transmission protocol, such as Modbus...
- Baudrate up to 1024kpbs for serial port
- Auto baudrate, no need to set baudrate
- 2.5KV isolation for serial port (RS485/422/232)
- UL60950-1, CE, FCC, heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Supports relay output for power or link failure warning
- Hardened housing with IP30 protection
- Fanless and DIN-Rail design for harsh industrial environment
- Adjustable pull high/low resistor and terminator for RS-422/485 transmission
MODBUS NETWORK;
FIBER CABLE REDUNDANCY;
FIBER RING REDUNDANCY;
FIBER DAISY CHAIN;
|
Industrial RS-232/422/485 to 2x 100FX SC 2Km 1310nm 11dB MM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 2x 100FX SC 2Km 1310nm 11dB MM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 2x 100FX ST 2Km 1310nm 11dB MM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 2x 100FX ST 2Km 1310nm 11dB MM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 2x 100FX SC 30Km 1310nm 19dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 2x 100FX SC 30Km 1310nm 19dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 2x 100FX ST 30Km 1310nm 19dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 2x 100FX ST 30Km 1310nm 19dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 2x 100FX SC 50Km 1310nm 28dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 2x 100FX SC 50Km 1310nm 28dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 2x 100FX ST 50Km 1310nm 28dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 2x 100FX ST 50Km 1310nm 28dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 100FX 1xA type(TX1310/RX1550nm) + 1xB type(TX1550/RX1310nm) SC 20Km 20dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 100FX 1xA type(TX1310/RX1550nm) + 1xB type(TX1550/RX1310nm) SC 20Km 20dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
| Çalışma Sıcaklığı | : | -40/+75C |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | SC |
|
FieldBus Protocol |
Protocol Transparent |
Protocol applicable to all operations available on RS485/422/232, such as Modbus,… |
|
Data Flow |
Dual Channel Communication |
Both of Triple-Way and Two-Way |
|
Optical Interface |
Connector |
SC, ST |
|
Fiber Port |
2 fiber ports (IFC-FDC) |
|
|
Fiber Type |
MM 2km, SM 30km, 60km |
|
|
Wavelength |
MM 1310nm, SM 1310 |
|
|
Point to Point Transmission |
Full duplex |
|
|
Ring Transmission |
Full duplex, self-healing operation |
|
|
Fiber Port Topology |
Cable redundancy(Figure 3), ring redundancy(Figure 4), daisy chain(Figure 5), point to point (IFC-FDC) |
|
|
Point to point(Figure 7) (IFC-Serial) |
||
|
Electrical Interface |
Serial Port Connector |
RS-232(DB9), RS-422/RS-485(5 pin terminal block) |
|
RS-485 : 4, 2 wires, RS-422 : 4 wires |
||
|
RS-485 direction |
Automatically detection |
|
|
Serial Port Baudrate |
50 to 1024kpbs |
|
|
Serial Port Isolation |
2.5KV isolation for serial signals |
|
|
Pull high resistor |
Selected by 10 position rotary switch |
|
|
Pull low resistor |
Selected by 10 position rotary switch |
|
|
120ohm Terminator |
Built-in 120 ohm terminator (Selected by Dip Switch) |
|
|
Environmental |
Operating Temperature |
-10 ~ 60°C (IFC-FDC, IFC-Serial) |
|
Storage temperature |
-40 ~ 85°C |
|
|
Humidity |
5 ~ 95% RH |
|
|
LED Indications |
PWR1, PWR2, Alarm, Master, TD, RD, Fiber Link, Fiber2 Link (IFC-FDC only), Ring |
|
|
Alarm Relay |
Alarm exists for power, fiber link or ring protection |
|
|
Power |
Power Input |
Redundant Dual Power 12, 24, 48 VDC (9.6 ~ 58VDC) |
|
Power Consumption |
6W (IFC-FDC) |
|
|
Power Reversal Protection |
Yes |
|
|
Over Current Protection |
Signal Short Together Protected |
|
|
Terminal Block for Power and Alarm : |
||
|
Mechanical |
Water & Dust Proof |
IP30 Protection, Fanless |
|
Dimensions |
106 x 38.6 x 142.1mm (D x W x H) |
|
|
Mounting |
DIN-Rail, or wall mounting (Optional) |
|
|
Weight |
0.64kg (IFC-FDC) 0.63kg (IFC-Serial) |
|
|
Certification |
Safety |
UL60950-1 |
|
EMC |
CE |
|
|
EMI |
FCC Part 15 Subpart B Class A, CE |
|
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|
|
EMS |
EN61000-4-2 ESD Level 3 |
|
|
EN61000-4-3 RS Level 3 |
||
|
EN61000-4-4 EFT Level 3 |
||
|
EN61000-4-5 Surge Level 3 |
||
|
EN61000-4-6 CS Level 3 |
||
|
Free Fall |
IEC 60068-2-32 |
|
|
Vibration |
IEC 60068-2-6 |
|
|
Shock |
IEC 60068-2-27 |
|
|
Green |
RoHS |
|
|
MTBF |
739,886 Hours (IFC-FDC) |
|
