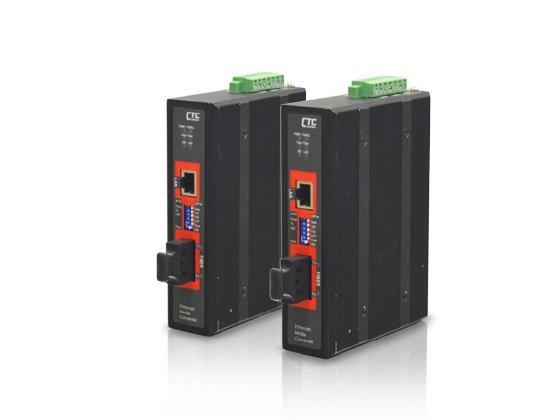

IMC-100C-E-SC040A

10/100Base-TX to 100Base-FX Fiber Converter (Compact)


IMC-100C, elektriksel 10/100Base-TX ve optik 100Base-FX Ethernet arasında dönüşümü destekleyen yönetilmeyen endüstriyel sınıf kompakt boyutlu Fast-Ethernet ortam dönüştürücüsüdür. DIP-Switch ile gerçekleştirilebilen basit ayarlar ile 10/100 hız, ve half-full duplex için UTP port konfigüre edilebilir. Yine DIP-Switch ile LFPT (Link Fault Pass Through), anahtar modu (depolama ve iletim) veya Dönüştürücü Modu (Jumbo frame Pass-through) konfigürasyonları yapılabilir. Sağlam DIN rayı veya duvar montajlı opsiyonları ile endüstriyel ağ ve akıllı ulaşım sistemleri (ITS) gibi zorlu ortamlar için uygundur.


  • DC input power 12/24/48VDC (9.6 ~ 60VDC) or 24VAC (18~36VAC)
  • IP30 rugged metal housing, compact size and fanless
  • Wide operating temperature -40 ~ 75°C (IMC-100C-E )
  • CE, FCC, railway traffic EN50121-4 certification
  • Heavy industrial grad EMS, EMI, EN61000-6-2, EN61000-6-4 certified
  • Store-and-Forward mode and Pass Through mode (set by DIP SW)
  • Support LFPT (Link Fault Pass Through)
  • Conversion between 10/100Base-TX and 100Base-FX cable interface
  • Provides a 4 pin DIP-Switch to set functions


ÜRÜN SİPARİŞ KODLARI :


IMC-100C-E-SC002

Industrial 10/100Base-TX to 100Base-FX SC 2Km 1310nm 11dB MM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-ST002

Industrial 10/100Base-TX to 100Base-FX ST 2Km 1310nm 11dB MM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-SC030

Industrial 10/100Base-TX to 100Base-FX SC 30Km 1310nm 19dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-ST030

Industrial 10/100Base-TX to 100Base-FX ST 30Km 1310nm 19dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-SC050

Industrial 10/100Base-TX to 100Base-FX SC 50Km 1310nm 28dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-ST050

Industrial 10/100Base-TX to 100Base-FX ST 50Km 1310nm 28dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-SC080

Industrial 10/100Base-TX to 100Base-FX SC 80Km 1310nm 34dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-ST080

Industrial 10/100Base-TX to 100Base-FX ST 80Km 1310nm 34dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-SC020A

Industrial 10/100Base-TX to 100Base-FX Bidi SC 20Km TX1310/RX1550nm(A type) 17dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-SC020B

Industrial 10/100Base-TX to 100Base-FX Bidi SC 20Km TX1550/RX1310nm(B type) 17dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-SC040A

Industrial 10/100Base-TX to 100Base-FX Bidi SC 40Km TX1310/RX1550nm(A type) 26dB SM, daul 12/24/48VDC power input, -20~75oC

IMC-100C-E-SC040B

Industrial 10/100Base-TX to 100Base-FX Bidi SC 40Km TX1550/RX1310nm(B type) 26dB SM, daul 12/24/48VDC power input, -20~75oC

Çalışma Sıcaklığı : -20/+75C


Standard

IEEE 802.3 10Base-T 10Mbit/s Ethernet

IEEE 802.3u 100Base-TX, 100Base-FX, Fast Ethernet

IEEE 802.3x Flow Control

RJ45 Ports

10/100Base-TX Auto MDI/MDI-X and Auto-Negotiation Function
Supports UTP CAT.5e Twisted Pair cable

Fiber Ports

100Base-FX (SC/ST connectors)

Switch Architecture

Store and Forward in Switch mode

Supports 1024 MAC addresses in Switch mode

Ethernet Packet length

2046Byte (Max) in Switch mode

Jumbo Frame

9K bytes in Pass through (Converter mode)

Fiber Parameters

Fiber Cable (Multi-mode): 50/125um,62.5/125um

Fiber Cable (Single-mode): 9/125um

Wavelength: 1310nm (Multi-mode/Single-mode)

Available distance:
2KM (Multi-mode)
30KM (Single-mode)
50KM (Single-mode)

Link Fault Pass Through Through (LFPT)

TX- Fiber: If TX port link down, the media converter will force Fiber port to link down

Fiber-TX: If Fiber port link down, the media converter will force TX port to link down

DIP Switch

Force Fiber port Duplex
ON: Half Duplex
OFF: Full Duplex

LFPT
ON: Enables LFPT (Link Fault Pass Through)
OFF: Disables LFPT

Architecture
OFF: Switching mode
ON: Pass through Converter mode

Connector

Fiber:
SC (Multi-mode, 2km), SC (Single-mode, 30km, 50KM)
ST (Multi-mode, 2km), ST (Single-mode, 30km, 50KM)

RJ-45 Socket: CAT.5e (10/100Mbps) Twisted Pair cable

Auto MDI/MDI-X and Auto-Negotiation Function Support

LED

PWR (Green): ON: Power active/ OFF: Power is inactive

Fiber (Green):
LNK/Act (Green) : Link&Active
Dup (Green) : Fiber port Full or Half duplex

LAN :
100 (Green): 100M Link & Active
10 (Green) : 10M Link & Active

Reverse Polarity Protection

Supported for power input

Overload Current Protection

Supported

Power Supply

12/24/48VDC(9.6~58VDC) or 24VAC (18~36VAC), polarity reverse protect function and removable terminal block

Removable Terminal Block

Provides for 1xDC input power (2pin)

Power Consumption

12VDC Input Voltage ~ 1.8W

24VDC Input Voltage ~ 1.8W

48VDC Input Voltage ~ 2.1W

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40 ~ 75°C (IMC-100C-E)

Storage Temperature

-40 ~ 85°C

Housing

Compact size, Rugged Metal, IP30 Protection and fanless

Dimensions

70 x 30 x 103mm (D X W X H)

Weight

215g

Installation

DIN Rail mounting, or wall mounting (Optional)

MTBF

1,558,180 Hours
MIL-HDBK-217

Warranty

5 years




Certification

EMC

CE

EMI (ElectromagneticInterference)

FCC Part 15 Subpart B Class A, CE

Railway Traffic

EN50121-4

Immunity for Heavy Industrial Environment

EN61000-6-2

Emission for Heavy Industrial Environment

EN61000-6-4

EMS

EN61000-4-2 (ESD) Level 3, Criteria B

EN61000-4-3 (RS) Level 3, Criteria A

EN61000-4-4 (EFT) Level 3, Criteria A

EN61000-4-5 (Surge) Level 3, Criteria B

EN61000-4-6 (CS) Level 3, Criteria A

EN61000-4-8 (PFMF) Field Strength: 300A/m, Criteria A

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6
