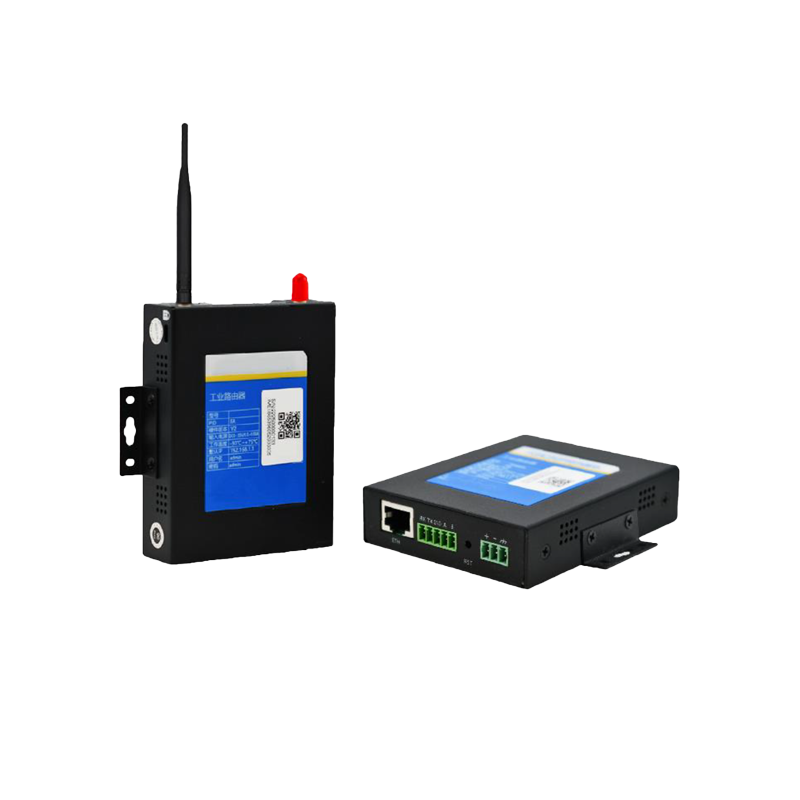

IRT2000-A1-1T1D-12-LV
Endüstriyel 4G Wireless Router
- 1 adet 100 Mbps LAN portu, 1 RS-232/485 seri port, 2 harici anten arayüzü (1 adet 4G anten, 1 adet Wi-Fi anten arayüzü), 1 SIM/UIM kart yuvası vb.
- Tüm 4G ağ bağlantılarını destekler; hücresel kablosuz ağ standartları: FDD-LTE / TDD-LTE / WCDMA / EDGE / GPRS / GSM
- Link backup, 4G/Wi-Fi ve kablolu Ethernet link switching desteği
- OpenVPN client, IPsec, PPTP/L2TP, GRE, N2N desteği ve güçlü veri güvenliği mekanizmaları
- 6–35VDC giriş voltajı desteği, düşük güç tüketimi tasarımı, farklı saha güç besleme yöntemlerine uyumlu
- Fansız tasarım, metal kasa
- -30~75℃ geniş çalışma sıcaklık aralığı desteği
IRT2000-A1-1T1D-12-LV, tek portlu, uygun maliyetli, tüm ağlarla uyumlu endüstriyel sınıf bir router’dır. 4G/Wi-Fi yüksek hızlı kablosuz ağları veri taşıyıcı olarak kullanarak uzak cihazlar ve sahalar arasında güvenli ve yüksek hızlı kablosuz bağlantı sağlar. Nerede olursanız olun, cihazınız 4G/Wi-Fi ağları sayesinde hızlı bir şekilde internete erişebilir.
Bu endüstriyel sınıf kablosuz router; düşük güç tüketimi, -30℃ ila +75℃ geniş çalışma sıcaklık aralığı, küçük boyut, hafif yapı ve katı EMC standartlarına uyumu ile zorlu sıcaklık, nem ve elektromanyetik girişim koşullarında güvenilir ağ iletişimi ihtiyacını karşılar. Endüstriyel uygulamalar için ideal bir çözümdür.
Ayrıca VPN fonksiyonu ile donatılmıştır ve IPSec, L2TP, GRE gibi birçok VPN şifreleme modunu destekler. Böylece cihaz verileri güvenli bir veri kanalı üzerinden iletilir, verilerin yetkisiz erişim ve değişikliklere karşı korunması sağlanır ve ağ uygulamalarına daha yüksek güvenlik kazandırılır.
Raylı ulaşım, güvenlik, akıllı şehirler, entegre boru galerileri, üretim otomasyonu ve akıllı aydınlatma direkleri gibi birçok endüstriyel alanda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IRT2000-A1-1T1D-12-LV | 2G/3G/4G, 1*10/100 Base-T(X) LAN RJ45 + 1*RS232/485 + 1*4G antenna interface, 1*Wi-Fi antenna interface, 1*SIM card slot, power input voltage: 6-35VDC, DIN-Rail or wall mounting, operating temperature: -30~75℃ |
Standard & Protocol
Wireless LAN, following IEEE802.11b/g/n
Wireless security, following IEEE802.11i
10Base-T, following IEEE 802.3
100Base TX, following IEEE 802.3u
Cellular Network
2G/3G/4G/Cellular network
LTE FDD: B1/B3//B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8
Transmitted Power
GSM/GPRS power level:
GSM850:4(2W)
EGSM900:4(2W)
DCS1800:1(1W)
PCS1900:1(1W)
EDGE power level:
GSM850: E2(0.5W)
EGSM900: E2 (0.5W)
DCS1800: E1(0.4W)
PCS1900: E1(0.4W)
UMTS power level:
WCDMA: 3 (0.25W)
LTE power class:3 (0.25W)
Receive Sensitivity
Frequency: GSM850@-109dBm (typical)
Frequency: EGSM900@-109dBm (typical)
Frequency: DCS1800@-109dBm (typical)
Frequency: PCS1900@-109dBm (typical)
Frequency: WCDMA B1@-110dBm (typical)
Frequency: WCDMA B2@-110dBm (typical)
Frequency: WCDMA B5@-110dBm (typical)
Frequency: WCDMA B8@-110dBm (typical)
LTE FDD@-97 dBm
Network Access
APN, VPDN
Access Authentication
CHAP/PAP/MS-CHAP/MS-CHAPV2
LAN Protocol
ARP, Ethernet
WAN Protocol
Static IP, DHCP, PPPoE
VLAN
VLAN management
IP Applications
Ping, Traceroute, DHCP Server/Client, DNS Relay, Dynamic DNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, NAT
IP Routing
Static routing
VPN
IPsec, L2TP/PPTP, GRE, OpenVPN, N2N
Firewall
NAT, PAT, DMZ, port mapping IP filtering, port filtering, MAC filtering
Link Backup
Link switching for 4G wireless networks, Wi Fi, and wired Ethernet
Link Detection
TCP/Ping heartbeat detection, VPN link detection, automatic connection when disconnected
QoS
Uplink and downlink bandwidth limitations
Embedded Watchdog
Self inspection of equipment operation and self repair of equipment operation faults
DTU
Built in software DTU function
Traffic Statistics
Real time traffic statistics
Monthly traffic statistics
Traffic limit setting
Timed Tasks
Timed restart
SNMP
SNMP v1/v2
Configuration Maintenance
Web Management
Telnet and SSH terminals
System status monitoring
NTP client, supporting device system clock network synchronization
Configure import and export
Network tools: Ping, Tracert
Firmware Management
Firmware upgrade, supports local (HTTP/serial) and remote upgrades
Event Alarm
System logs, application logs
Processor
Industrial grade 32-bit processor
Operating System
Linux system
Serial Port Parameters
5PIN terminal interface, 1 * RS232, 1 * RS485
Interface
Ethernet interface: 1 100Mbit LAN 10/100Mbit/s adaptive, built-in 1.5KV electromagnetic isolation protection
Antenna interface: 2 external antenna interfaces (standard SMA female, characteristic impedance 50 ohms), 1 4G antenna, 1 Wi Fi antenna
SIM/UIM card interface: Standard drawer type interface, supporting 1.8V/3V SIM/UIM cards, built-in 15KV ESD protection
Reset Button
Through this button, the device's parameter configuration can be restored to the factory values
Real Time Clock
Built in RTC, battery powered
WIFI
Supports IEEE 802.11n b/g/n 2.4GHz
Support AP/Client mode Supports open systems, shared keys, and WPA/WPA2 authentication
Support WEP/TKIP/AES encryption
Indicator Light
Power indicator light, ETH indicator light, system indicator light, network indicator light
Source
Interface: Terminal power socket, built-in power reverse protection and overvoltage protection
Standard power supply: DC 12V/1A
Power supply range: DC6~35V
Power Dissipation
Maximum power consumption: 2.4W
Idle working current: 120mA@12VDC
Average working current: 150mA@12VDC
Work Environment
Working temperature: -30~75 ℃
Storage temperature: -40~85 ℃
Relative humidity: 5%~95% (no condensation)
Mechanical Properties
Shell: IP30 protection level, metal Shell
Dimensions (width x height x depth): 100mm x 22mm x 78mm (excluding antenna and mounting parts) Installation method: rail mounted/wall mounted installation
Weight: ≤ 210g
Industry Standards
IEC 61000-4-2 (ESD, electrostatic discharge immunity), Level 3
Air discharge: ± 8kV
Contact discharge: ± 6kV
IEC 61000-4-4 (EFT, Electrical Fast Transient Burst Immunity), Level 3
Power supply: ± 2kV
Ethernet interface: ± 1kV
IEC 61000-4-5 (Surge, Level 3)
Power supply: common mode ± 2kV, differential mode ± 1kV
Ethernet interface: common mode ± 2kV, differential mode ± 1kV
Impact: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
