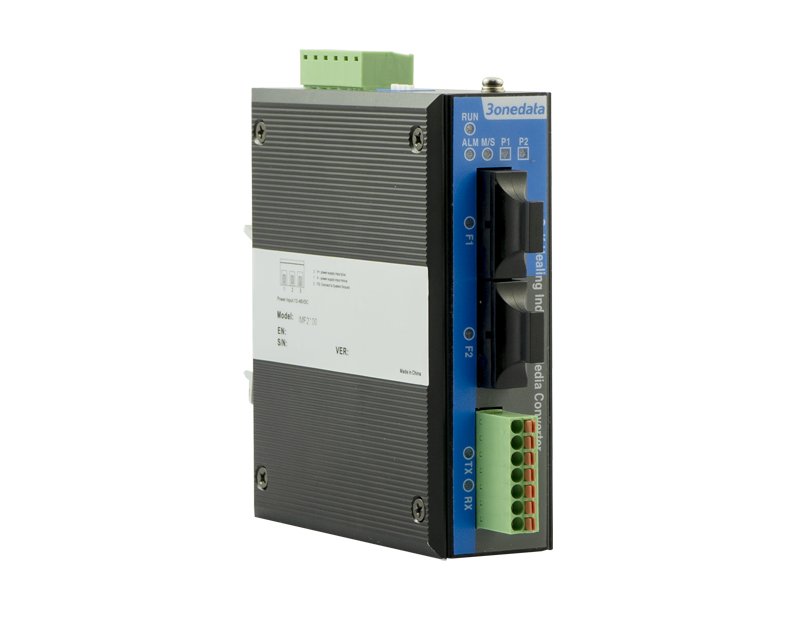

IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,SC)
DIN-Rail Mounting Fiber Converter
RS-232/422/485 to 2 optic fiber, Multi-Mode, SC, 2Km, Dual power 12-48VDC
- 1 x Seri (RS-232/422/485) ve 1 veya 2x Fiber port
- Fiber bağlantı hatası ve güç kesilmeleri için alarm çıkışı (Dual Power modellerinde)
- Çift 12-48 VDC güç girişi
- -40~75℃ çalışma sıcaklık aralığı
IMF2100 Serisi, bir veya iki fiber port alternatif model içeren ve bir RS-232/422/485 seri port içeren seri-fiber dönüştürücü ailesidir. Ürün ailesi ring yapıya uygundur.
Cihaz üzerindeki DIP SWITCH, cihazların master-slave konfigürasyonuna kolaylık sağlar. Fansız tasarım, düşük güç tüketimi, geniş çalışma sıcaklık aralığı ve EMC için endüstriyel standart testlerinden geçmiş olması; güç dağıtım otomasyonu, endüstriyel otomasyon, ulaşım ve telekomünikasyon gibi uygulamalarda yaygın bir şekilde tercih edilmesini sağlar.
| Model | Açıklama |
|---|---|
| IMF2100-1F-1DI(3IN1)-TB-2P(12-48VDC) (MM,SC) | RS-232/422/485 to 1 optic fiber, Multi-Mode, SC, 2Km, Dual power 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-2P(12-48VDC) (MM,ST) | RS-232/422/485 to 1 optic fiber, Multi-Mode, ST, 2Km, Dual power 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-2P(12-48VDC) (SM,SC) | RS-232/422/485 to 1 optic fiber, Single-Mode, SC, 20Km, Dual power 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-2P(12-48VDC) (SM,ST) | RS-232/422/485 to 1 optic fiber, Single-Mode, ST, 20Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,SC) | RS-232/422/485 to 2 optic fiber, Multi-Mode, SC, 2Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,ST) | RS-232/422/485 to 2 optic fiber, Multi-Mode, ST, 2Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,SC) | RS-232/422/485 to 2 optic fiber, Single-Mode, SC, 20Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,ST) | RS-232/422/485 to 2 optic fiber, Single-Mode, ST, 20Km, Dual power 12-48VDC |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 3 |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | Terminal Block |
| 100BaseFX | : | 2 |
Fiber Interface
Interface quantity: 1/2 (support ring network)
Interface form: optional SC/FC/ST interfaces
Transmission distance:
Multimode: 2km
Single mode: 20/40/60km
Transmission wavelength:
Multimode: 1310nm
Single mode: 1310nm or 1550nm
Serial Port
Standard: EIA RS-232C, RS-485, RS-422 standard
Serial ports: 1 RS-232/485/422 serial port (not available at the same time)
RS-232 signal: RXD, TXD, GND
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, R-
Baud rate: 300~115200bps
Data bit: 5bit, 6bit, 7bit, 8bit
Stop bit: 1bit, 1.5bit, 2bit
Parity bit: None, Even, Odd, Space, Mark
Interface form: 7-pin 3.81mm pitch terminal blocks
Directional control: RS-485 direction adopts Automatic Data Direction Control technology
Load capacity: RS-485 supports 32-point polling (customizable 128 points)
Pull high/low resistor for RS-485: 4.7kΩ
Terminating resistor for RS-485: internal 120Ω resistance controlled by DIP switch
Transmission distance: RS-232, 15m, RS-485/422 serial port, 1200m
Relay
Relay quantity: 1 relay alarm Output
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 2-pin relay)
Current load: 1A@30VDC, 0.3A@125VAC
Default relay state: normally open
Indicator
Power indicator, fiber port connection indicator, master/slave indicator, alarm indicator, serial port data receiving indicator, serial port data sending indicator
Power Supply
Support 3 optional power supply schemes: 12 ~ 48VDC (dual power supply), 110~370VDC or 85~265VAC
Scheme 1
Voltage range: 12~48VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Power supply protection: non-polarity, built-in 2.0A overcurrent protection
Power supply redundancy: support
Scheme 2
Voltage range: 110~370VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 2-pin power supply)
Power supply protection: non-polarity, built-in 2.0A overcurrent protection
Scheme 3
The power supply range is 85~265VAC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 2-pin power supply)
Power supply protection: built-in 2.0A overcurrent protection
Power Consumption
No-load: ≤3.0W@24VDC
Full-load: ≤3.4W@24VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail Mounting
Weight: ≤ 360g
Dimension (W x H x D): 35mm×110mm×95mm
Industrial Standard
IEC 60950-1 / EN 60950-1: Safety
EN 55032: Conducted & Radiated Disturbances
IEC 61000-3-2 Harmonic Current Emission
IEC 61000-3-3 Voltage Fluctuation & Flicker
EN 55024
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
Authentication
CE, FCC, RoHS
