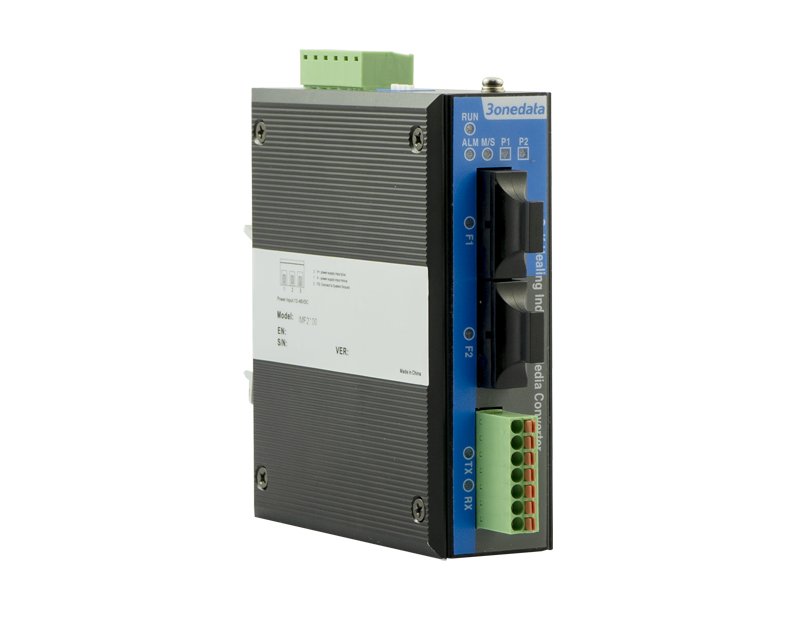

IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,ST)
DIN-Rail Mounting Fiber Converter
RS-232/422/485 to 2 optic fiber, Multi-Mode, ST, 2Km, Dual power 12-48VDC
- 1 x Seri (RS-232/422/485) ve 1 veya 2x Fiber port
- Fiber bağlantı hatası ve güç kesilmeleri için alarm çıkışı (Dual Power modellerinde)
- 12-48 VDC güç girişi
- -40~75℃ çalışma sıcaklık aralığı
IMF2100 Serisi, bir veya iki fiber port alternatif model içeren ve bir RS-232/422/485 seri port bulunduran seri-fiber dönüştürücü ailesidir. Ürün ailesi ring topoloji yapısına uygundur.
Cihaz üzerindeki DIP SWITCH, cihazların master-slave konfigürasyonunu kolaylaştırır. Fansız tasarımı, düşük güç tüketimi, geniş çalışma sıcaklık aralığı ve EMC standartlarına uygunluğu sayesinde güç dağıtım otomasyonu, endüstriyel otomasyon, ulaşım ve telekomünikasyon gibi uygulamalarda yaygın olarak tercih edilmektedir.
| Model | Açıklama |
|---|---|
| IMF2100-1F-1DI(3IN1)-TB-P(12-48VDC) (MM,SC) | RS-232/422/485 to 1 optic fiber, Multi-Mode, SC, 2Km, 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-P(12-48VDC) (MM,ST) | RS-232/422/485 to 1 optic fiber, Multi-Mode, ST, 2Km, 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-P(12-48VDC) (SM,SC) | RS-232/422/485 to 1 optic fiber, Single-Mode, SC, 20Km, 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-P(12-48VDC) (SM,ST) | RS-232/422/485 to 1 optic fiber, Single-Mode, ST, 20Km, 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,SC) | RS-232/422/485 to 2 optic fiber, Multi-Mode, SC, 2Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,ST) | RS-232/422/485 to 2 optic fiber, Multi-Mode, ST, 2Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,SC) | RS-232/422/485 to 2 optic fiber, Single-Mode, SC, 20Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,ST) | RS-232/422/485 to 2 optic fiber, Single-Mode, ST, 20Km, Dual power 12-48VDC |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 3 |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | Terminal Block |
| 100BaseFX | : | 2 |
|
Fiber Port |
Interface quantity: 1/2 (support ring network) Fiber port: optional SC/FC/ST interface Transmission distance: Multimode: 2km Single mode: 20/40/60km Transmission wavelength: Multimode: 1310nm Single mode: 1310nm or 1550nm
|
| Serial Port |
Standard: EIA RS-232C, RS-485, RS-422 Serial port: 1 RS-232/485/422 serial port, can’t be used simultaneously RS-232 signal: RXD, TXD, GND RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300~115200bps Data bit: 5bit, 6bit, 7bit, 8bit Stop bit: 1bit, 1.5bit, 2bit Check bit: None, Even, Odd, Space, Mark Interface type: 7-pin 3.81mm pitch terminal block Direction control: RS-485 adopts automatic data flow control technology Load capacity: RS-485 supports 32-point polling environment (128-point could be customized) RS-485 pull up/down resistor: 4.7kΩ RS-485 terminal resistance: built-in 120Ω, could be controlled by DIP switch Transmission distance: RS-232 serial port, 15m； RS-485/422 serial port, 1200m
|
| Relay |
Relay quantity: 1 relay alarm output Connection method: 6-pin 5.08mm pitch terminal block(relay occupies 2 pins) Current load: 1A@30VDC, 0.3A@125VAC Default relay status: normally open |
|
LED Indicator
|
Power Supply Indicator, Fiber Port Connection Indicator, Master/Slave Indicator, Alarm Indicator, Serial Port Data Receiving Indicator, Serial Port Data Sending Indicator |
|
Power Requirement
|
Support four optional power solutions, 12~48VDC (single power supply), 12~48VDC (dual power supply), 110~370VDC or 85~265VAC Solution 1 Power supply range: 12~48VDC Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins) Power supply protection: built-in 2.0A over-current protection and non-polarity Power supply redundancy: support Solution 2 Power supply range: 12~48VDC Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) Power supply protection: built-in 2.0A over-current protection and non-polarity Solution 3 Power supply range: 110~370VDC Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) Power supply protection: built-in 2.0A over-current protection and non-polarity Solution 4 Power supply range: 85~265VAC Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) Power supply protection: built-in 2.0A over-current protection
|
|
Power Consumption |
No-load: ≤3.0W@24VDC Full-load: ≤3.4W@24VDC
|
|
Environmental Limit |
Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%(no condensation)
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Weight: ≤360g Dimension (W x H x D): 35mm×110mm×95mm
|
|
Industrial Standard |
IEC 60950-1 / EN 60950-1: Safety EN 55032: Conducted & Radiated Disturbances IEC 61000-3-2 Harmonic Current Emission IEC 61000-3-3 Voltage Fluctuation & Flicker EN 55024 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11
|
|
Certification |
CE, FCC, RoHS |
