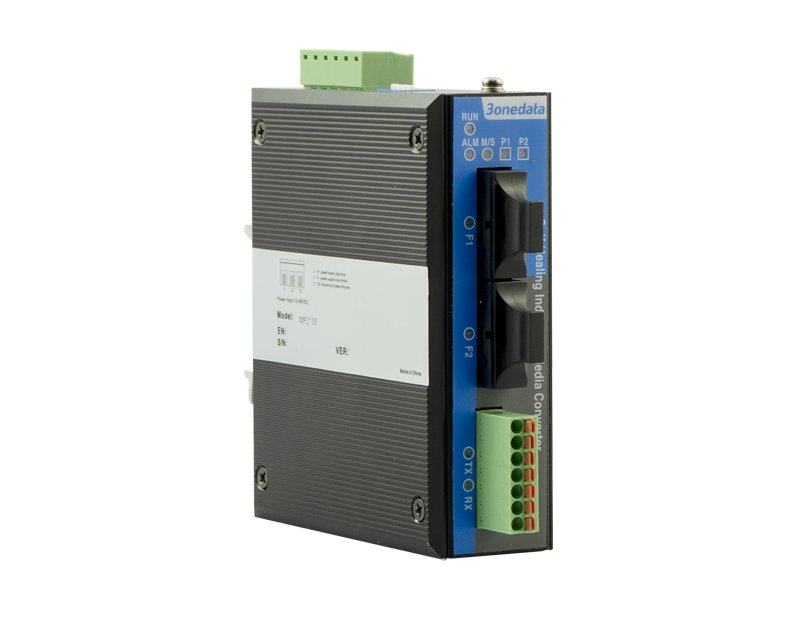

IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,SC)
DIN-Rail Mounting Fiber Converter
RS-232/422/485 to 2 optic fiber, Single-Mode, SC, 20Km, Dual power 12-48VDC
- 1 x Seri (RS-232/422/485) ve 1 veya 2x Fiber port
- Fiber bağlantı hatası ve güç kesilmeleri için alarm çıkışı (Dual Power modellerinde)
- Çift 12-48 VDC güç girişi
- -40~75℃ çalışma sıcaklık aralığı
IMF2100 Serisi, bir veya iki fiber port alternatif model içeren ve bir RS-232/422/485 seri port bulunduran seri-fiber dönüştürücü ailesidir. Ürün ailesi ring topoloji yapısına uygundur.
Cihaz üzerindeki DIP SWITCH, cihazların master-slave konfigürasyonunu kolaylaştırır. Fansız tasarımı, düşük güç tüketimi, geniş çalışma sıcaklık aralığı ve EMC standartlarına uygunluğu sayesinde güç dağıtım otomasyonu, endüstriyel otomasyon, ulaşım ve telekomünikasyon gibi uygulamalarda yaygın olarak tercih edilmektedir.
| Model | Açıklama |
|---|---|
| IMF2100-1F-1DI(3IN1)-TB-2P(12-48VDC) (MM,SC) | RS-232/422/485 to 1 optic fiber, Multi-Mode, SC, 2Km, Dual power 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-2P(12-48VDC) (MM,ST) | RS-232/422/485 to 1 optic fiber, Multi-Mode, ST, 2Km, Dual power 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-2P(12-48VDC) (SM,SC) | RS-232/422/485 to 1 optic fiber, Single-Mode, SC, 20Km, Dual power 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-2P(12-48VDC) (SM,ST) | RS-232/422/485 to 1 optic fiber, Single-Mode, ST, 20Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,SC) | RS-232/422/485 to 2 optic fiber, Multi-Mode, SC, 2Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,ST) | RS-232/422/485 to 2 optic fiber, Multi-Mode, ST, 2Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,SC) | RS-232/422/485 to 2 optic fiber, Single-Mode, SC, 20Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,ST) | RS-232/422/485 to 2 optic fiber, Single-Mode, ST, 20Km, Dual power 12-48VDC |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 3 |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | Terminal Block |
| 100BaseFX | : | 2 |
Fiber Interface
Interface quantity: 1/2 (support ring network)
Interface form: optional SC/FC/ST interfaces
Transmission distance:
Multimode: 2km
Single mode: 20/40/60km
Transmission wavelength:
Multimode: 1310nm
Single mode: 1310nm or 1550nm
Serial Port
Standard: EIA RS-232C, RS-485, RS-422 standard
Serial ports: 1 RS-232/485/422 serial port (not available at the same time)
RS-232 signal: RXD, TXD, GND
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, R-
Baud rate: 300~115200bps
Data bit: 5bit, 6bit, 7bit, 8bit
Stop bit: 1bit, 1.5bit, 2bit
Parity bit: None, Even, Odd, Space, Mark
Interface form: 7-pin 3.81mm pitch terminal blocks
Directional control: RS-485 direction adopts Automatic Data Direction Control technology
Load capacity: RS-485 supports 32-point polling (customizable 128 points)
Pull high/low resistor for RS-485: 4.7kΩ
Terminating resistor for RS-485: internal 120Ω resistance controlled by DIP switch
Transmission distance: RS-232, 15m, RS-485/422 serial port, 1200m
Relay
Relay quantity: 1 relay alarm Output
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 2-pin relay)
Current load: 1A@30VDC, 0.3A@125VAC
Default relay state: normally open
Indicator
Power indicator, fiber port connection indicator, master/slave indicator, alarm indicator, serial port data receiving indicator, serial port data sending indicator
Power Supply
Support 3 optional power supply schemes: 12 ~ 48VDC (dual power supply), 110~370VDC or 85~265VAC
Scheme 1
Voltage range: 12~48VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Power supply protection: non-polarity, built-in 2.0A overcurrent protection
Power supply redundancy: support
Scheme 2
Voltage range: 110~370VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 2-pin power supply)
Power supply protection: non-polarity, built-in 2.0A overcurrent protection
Scheme 3
The power supply range is 85~265VAC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 2-pin power supply)
Power supply protection: built-in 2.0A overcurrent protection
Power Consumption
No-load: ≤3.0W@24VDC
Full-load: ≤3.4W@24VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail Mounting
Weight: ≤ 360g
Dimension (W x H x D): 35mm×110mm×95mm
Industrial Standard
IEC 60950-1 / EN 60950-1: Safety
EN 55032: Conducted & Radiated Disturbances
IEC 61000-3-2 Harmonic Current Emission
IEC 61000-3-3 Voltage Fluctuation & Flicker
EN 55024
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
Authentication
CE, FCC, RoHS
