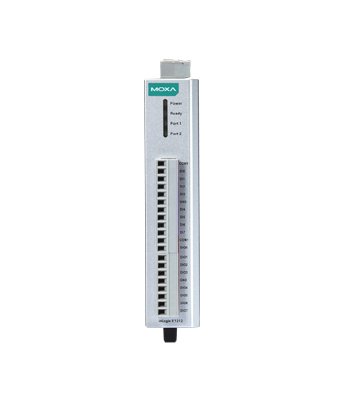

ioLogik E1211-T
Ethernet remote I/O with 2-port Ethernet switch, 16 DOs
ioLogik E1200 serisi, I/O verilerini almak için en sık kullanılan protokolleri destekler. Moxa'nın Smart I/O serisi, Modbus/TCP, EtherNet/IP protokollerinin yanı sıra SNMP, RESTful API ve Moxa MXIO kütüphanesini de desteklemektedir. IoLogik E1200, I/O verilerini alır ve bu protokollerden herhangi birine aynı anda veri dönüştürerek kolay ve zahmetsiz bağlantı sağlar.
- Esnek ve kullanıcı tanımlı ModbusTCP Slave adresleme olanağı
- Ethernet/IP Scanner mod desteği
- IIoT uygulamaları için RESTful API desteği
- Daisy-chain topolojiler için 2-Ethernet port
- Noktadan noktaya ( peer-to-peer) bağlantı desteği
- MX-AOPC UA Server ile patentli Active OPC iletişim yeteneği ( I/O verilerini doğrudan Active OPC sunucuya gönderir.)
- SNMPv1/v2c desteği ile veriler SNMP ile toplanabilir.
- Modbus/TCP Protocol desteği
- ioSearch yazılımı ile kolay konfigürasyon ve birden fazla cihazı hızlıca devreye alma
- Kullanıcı dostu Web Arabirimi
- MXIO kütüphanesi ile Windows ve Linux plaformlarında I/O Yönetimi
- UL/cUL Class I Division 2 ve ATEX Zone 2 sertifikasyonları
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| ioLogik E1210 | Ethernet Remote I/O with 2-port Ethernet switch and 16 DIs |
| ioLogik E1210-T | Ethernet Remote I/O with 2-port Ethernet switch and 16 DIs , -40 to 75°C operating temperature |
| ioLogik E1211 | Ethernet Remote I/O with 2-port Ethernet switch and 16 DOs |
| ioLogik E1211-T | Ethernet Remote I/O with 2-port Ethernet switch and 16 DOs, -40 to 75°C operating temperature |
| ioLogik E1212 | Ethernet Remote I/O with 2-port Ethernet switch, 8 DIs, and 8 DIOs |
| ioLogik E1212-T | Ethernet Remote I/O with 2-port Ethernet switch, 8 DIs, and 8 DIOs, -40 to 75°C operating temperature |
| ioLogik E1213 | Ethernet Remote I/O with 2-port Source Type Ethernet switch and 8 DIs, 4 DOs, and 4 DIOs |
| ioLogik E1213-T | Ethernet Remote I/O with 2-port Source Type Ethernet switch and 8 DIs, 4 DOs, and 4 DIOs, -40 to 75°C operating temperature |
| ioLogik E1214 | Ethernet Remote I/O with 2-port Ethernet switch, 6 DIs, and 6 Relays |
| ioLogik E1214-T | Ethernet Remote I/O with 2-port Ethernet switch, 6 DIs, and 6 Relays, -40 to 75°C operating temperature |
| ioLogik E1240 | Ethernet Remote I/O with 2-port Ethernet switch and 8 AIs |
| ioLogik E1240-T | Ethernet Remote I/O with 2-port Ethernet switch and 8 AIs, -40 to 75°C operating temperature |
| ioLogik E1241 | Ethernet Remote I/O with 2-port Ethernet switch and 4 AOs |
| ioLogik E1241-T | Ethernet Remote I/O with 2-port Ethernet switch and 4 AOs, -40 to 75°C operating temperature |
| ioLogik E1242 | Ethernet Remote I/O with 2-port Ethernet switch, 4 AIs, 4 DIs, and 4 DIOs |
| ioLogik E1242-T | Ethernet Remote I/O with 2-port Ethernet switch, 4 AIs, 4 DIs, and 4 DIOs, -40 to 75°C operating temperature |
| ioLogik E1260 | Ethernet Remote I/O with 2-port Ethernet switch and 6 RTDs |
| ioLogik E1260-T | Ethernet Remote I/O with 2-port Ethernet switch and 6 RTDs, -40 to 75°C operating temperature |
| ioLogik E1262 | Ethernet Remote I/O with 2-port Ethernet switch and 8 TCs |
| ioLogik E1262-T | Ethernet Remote I/O with 2-port Ethernet switch and 8 TCs, -40 to 75°C operating temperature |
| • Inputs and Outputs | |
| Digital Outputs | 16 channels |
| Isolation | 3k VDC or 2k Vrms |
| • Digital Output | |
| Type | Sink |
| I/O Mode | DO or Pulse Output |
| Pulse Output Frequency | 500 Hz |
| Over-Voltage Protection | 45 VDC |
| Over-Current Protection | 2.6 A (4 channels @ 650 mA) |
| Over-Temperature Shutdown | 175°C (typical), 150°C (min.) |
| Current Rating | 200 mA per channel |
| • Power Requirements | |
| Input Voltage | 12 to 36 VDC |
| Input Current | 200 mA @ 24 VDC |
| • MTBF (mean time between failures) | |
| Time | 923,027 hrs |
| Standard | Telcordia SR332 |
| • Common Specifications | |
| • LAN | |
| Ethernet | 2 switched 10/100 Mbps RJ45 ports |
| Protection | 1.5 kV magnetic isolation |
| Protocols | Modbus/TCP (Slave), EtherNet/IP*, SNMPv1/v2c, RESTful API, TCP/IP, UDP, DHCP, BOOTP, HTTP |
| *Requires online registration at https://www.moxa.com/Event/DAC/2016/Smart_EIP_IO/index.htm (available free of charge) | |
| • Physical Characteristics | |
| Wiring | I/O cable max. 14 AWG |
| Dimensions | 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
| Weight | Under 200 g (0.44 lb) |
| Mounting | DIN rail or wall |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Altitude | Up to 2000 m |
| Note | Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 55032, EN 55024, EN 61000-3-2/3-3, EN 61000-6-2/6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Hazardous Location | Class 1 Division 2, ATEX Zone 2 |
| Green Product | RoHS, CRoHS, WEEE |
| Note: Please check Moxa’s website for the most up-to-date certification status. | |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Note: Because of the limited lifetime of power relays, products that use this component are covered by a 2-year warranty. | |
